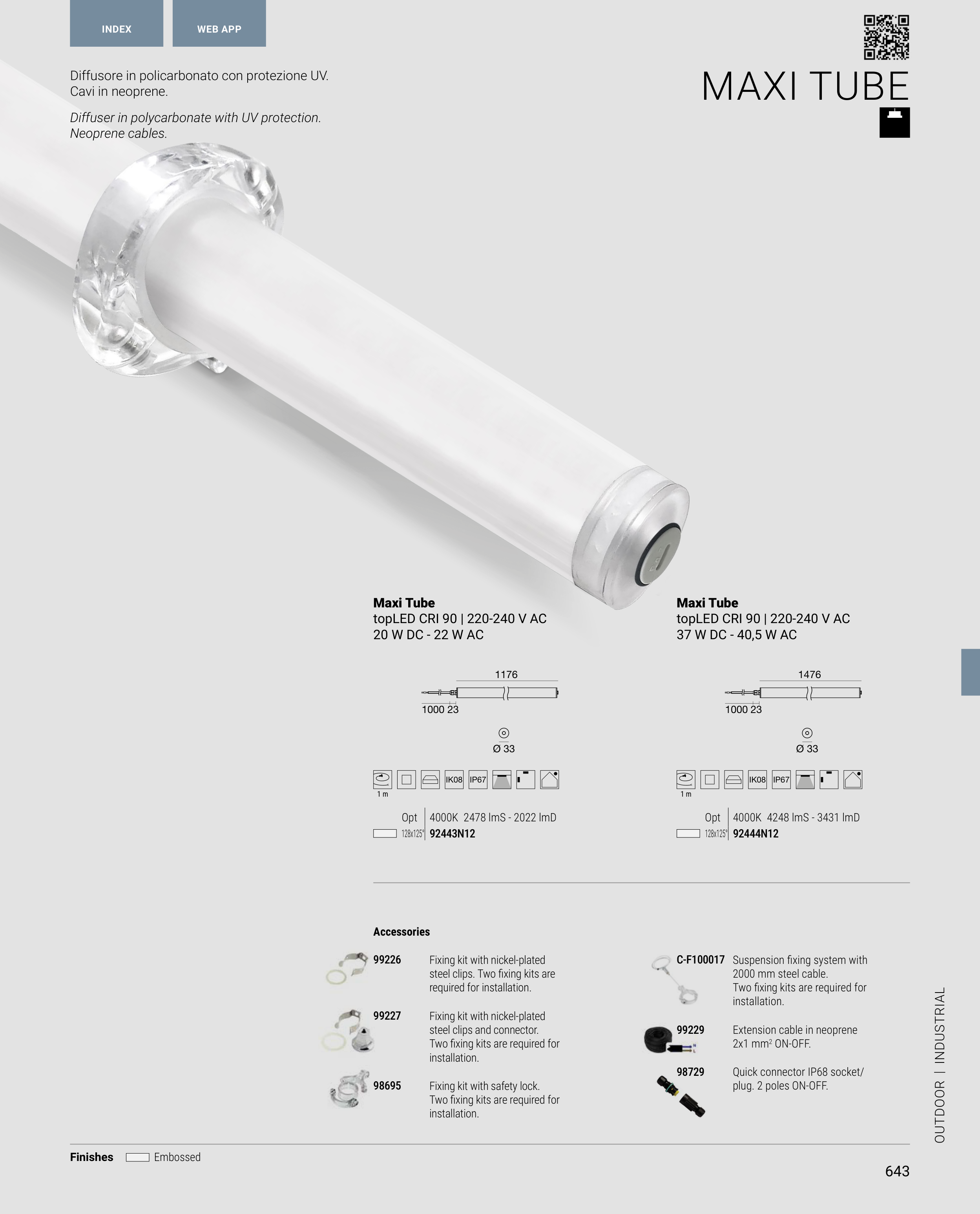

MAXI TUBE
Accessories
99226
99227
98695
Maxi Tube
topLED CRI 90 | 220-240 V AC
20 W DC - 22 W AC
1176
1000 23
Ø 33
Maxi Tube
topLED CRI 90 | 220-240 V AC
37 W DC - 40,5 W AC
1476
1000 23
Ø 33
Opt
4000K 2478 lmS - 2022 lmD
128x125° 92443N12
Opt
4000K 4248 lmS - 3431 lmD
128x125° 92444N12
IK08
IP67
1 m
IK08
IP67
1 m
C-F100017
99229
98729
Finishes
Embossed
Fixing kit with nickel-plated
steel clips. Two fixing kits are
required for installation.
Fixing kit with nickel-plated
steel clips and connector.
Two fixing kits are required for
installation.
Fixing kit with safety lock.
Two fixing kits are required for
installation.
Suspension fixing system with
2000 mm steel cable.
Two fixing kits are required for
installation.
Extension cable in neoprene
2x1 mm2 ON-OFF.
Quick connector IP68 socket/
plug. 2 poles ON-OFF.
Diffuser in polycarbonate with UV protection.
Neoprene cables.
Diffusore in policarbonato con protezione UV.
Cavi in neoprene.
OUTDOOR | INDUSTRIAL
643
