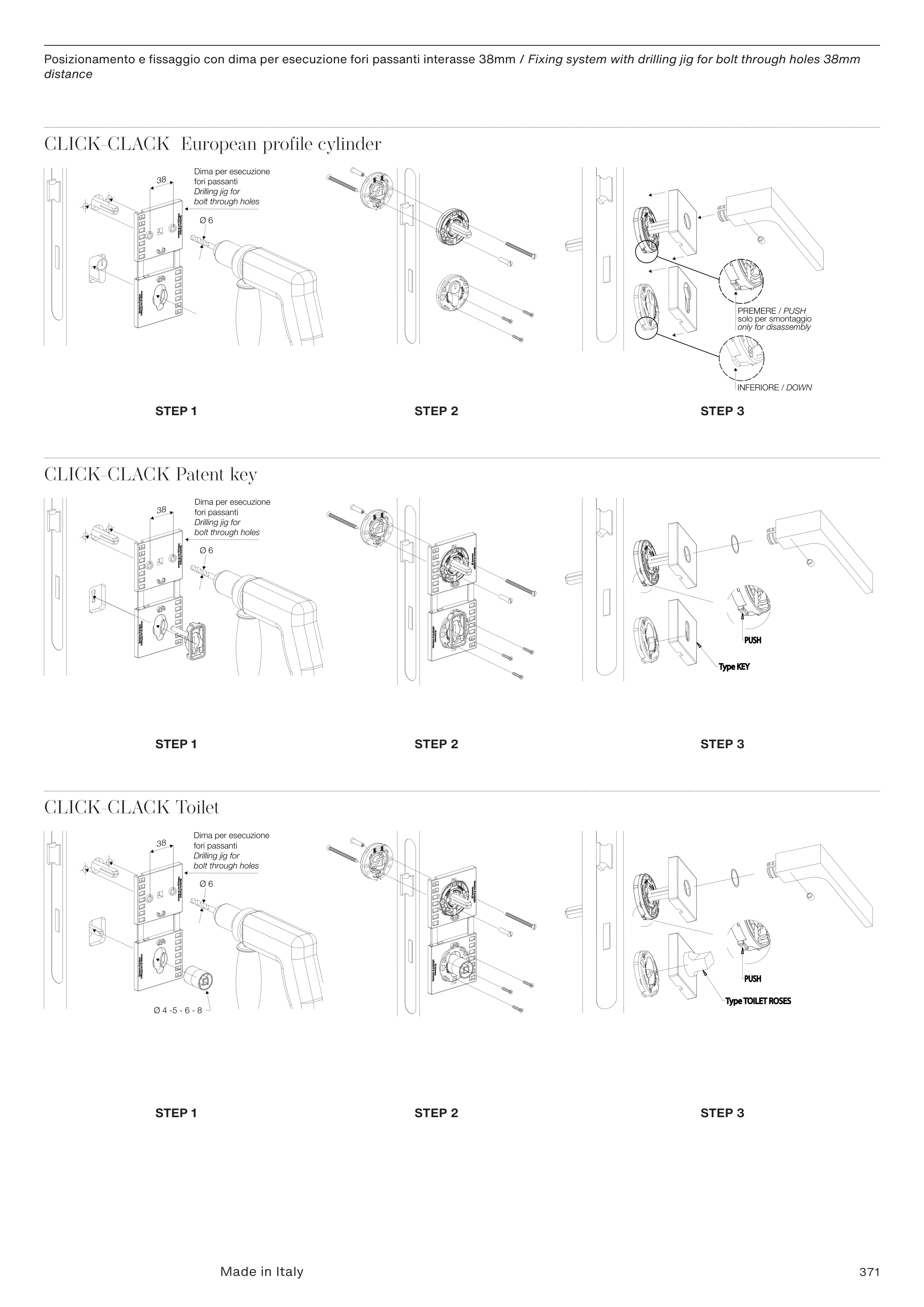

Posizionamento e fissaggio con dima per esecuzione fori passanti interasse 38mm / Fixing system with drilling jig for bolt through holes 38mm
distance
CLICK-CLACK European profile cylinder
Ø 6
38
Dima per esecuzione
fori passanti
Drilling jig for
bolt through holes
INFERIORE / DOWN
PREMERE / PUSH
solo per smontaggio
only for disassembly
STEP 1
STEP 2
STEP 3
CLICK-CLACK Patent key
Ø 6
38
Dima per esecuzione
fori passanti
Drilling jig for
bolt through holes
STEP 1
STEP 2
STEP 3
CLICK-CLACK Toilet
Ø 4 -5 - 6 - 8
Ø 6
38
Dima per esecuzione
fori passanti
Drilling jig for
bolt through holes
STEP 1
STEP 2
STEP 3
