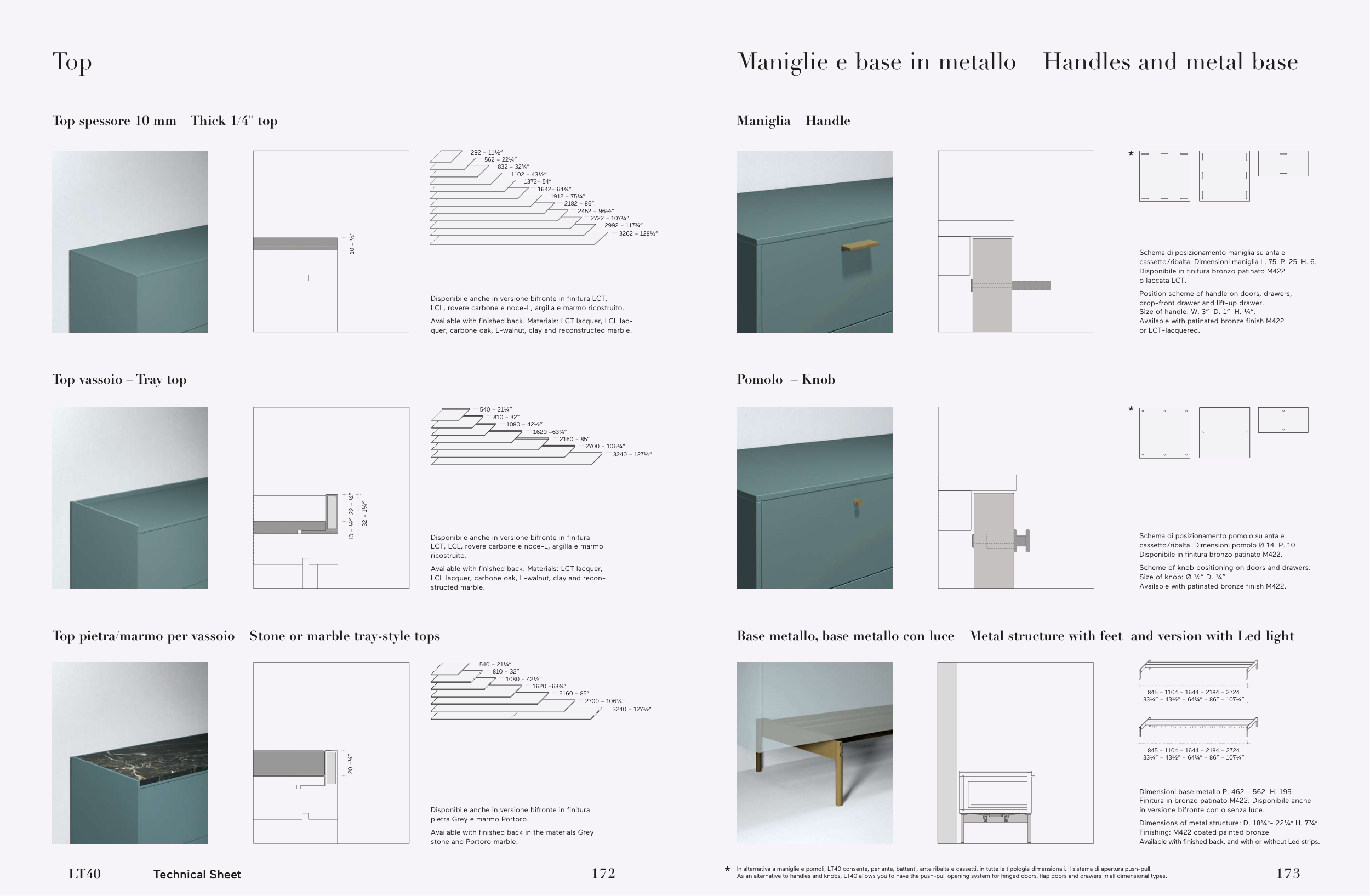

Technical Sheet
LT40
Dimensioni base metallo P. 462 – 562 H. 195
Finitura in bronzo patinato M422. Disponibile anche
in versione bifronte con o senza luce.
Dimensions of metal structure: D. 18¼”- 22¼” H. 7¾”
Finishing: M422 coated painted bronze
Available with finished back, and with or without Led strips.
Schema di posizionamento maniglia su anta e
cassetto/ribalta. Dimensioni maniglia L. 75 P. 25 H. 6.
Disponibile in finitura bronzo patinato M422
o laccata LCT.
Position scheme of handle on doors, drawers,
drop-front drawer and lift-up drawer.
Size of handle: W. 3” D. 1” H. ¼”.
Available with patinated bronze finish M422
or LCT-lacquered.
Top pietra/marmo per vassoio – Stone or marble tray-style tops
Top vassoio – Tray top
Top spessore 10 mm – Thick 1/4" top
Top
Base metallo, base metallo con luce – Metal structure with feet and version with Led light
Maniglia – Handle
Maniglie e base in metallo – Handles and metal base
10 - ½”
20 –¾”
22 – ¾”
32 – 1¼”
10 – ½”
Schema di posizionamento pomolo su anta e
cassetto/ribalta. Dimensioni pomolo Ø 14 P. 10
Disponibile in finitura bronzo patinato M422.
Scheme of knob positioning on doors and drawers.
Size of knob: Ø ½” D. ¼”
Available with patinated bronze finish M422.
Pomolo – Knob
845 – 1104 – 1644 – 2184 – 2724
33¼” – 43½” – 64¾” – 86” – 107¼”
845 – 1104 – 1644 – 2184 – 2724
33¼” – 43½” – 64¾” – 86” – 107¼”
Disponibile anche in versione bifronte in finitura
pietra Grey e marmo Portoro.
Available with finished back in the materials Grey
stone and Portoro marble.
540 – 21¼”
810 – 32”
1080 – 42½”
1620 –63¾”
2700 – 106¼”
3240 – 127½”
2160 – 85”
Disponibile anche in versione bifronte in finitura
LCT, LCL, rovere carbone e noce-L, argilla e marmo
ricostruito.
Available with finished back. Materials: LCT lacquer,
LCL lacquer, carbone oak, L-walnut, clay and recon-
structed marble.
540 – 21¼”
810 – 32”
1080 – 42½”
1620 –63¾”
2700 – 106¼”
3240 – 127½”
2160 – 85”
Disponibile anche in versione bifronte in finitura LCT,
LCL, rovere carbone e noce-L, argilla e marmo ricostruito.
Available with finished back. Materials: LCT lacquer, LCL lac-
quer, carbone oak, L-walnut, clay and reconstructed marble.
1372– 54”
1642– 64¾”
1102 – 43½”
832 – 32¾”
562 – 22¼”
292 – 11½”
3262 – 128½”
1912 – 75¼”
2182 – 86”
2452 – 96½”
2992 – 117¾”
2722 – 107¼”
*
In alternativa a maniglie e pomoli, LT40 consente, per ante, battenti, ante ribalta e cassetti, in tutte le tipologie dimensionali, il sistema di apertura push-pull.
As an alternative to handles and knobs, LT40 allows you to have the push-pull opening system for hinged doors, flap doors and drawers in all dimensional types.
*
*
