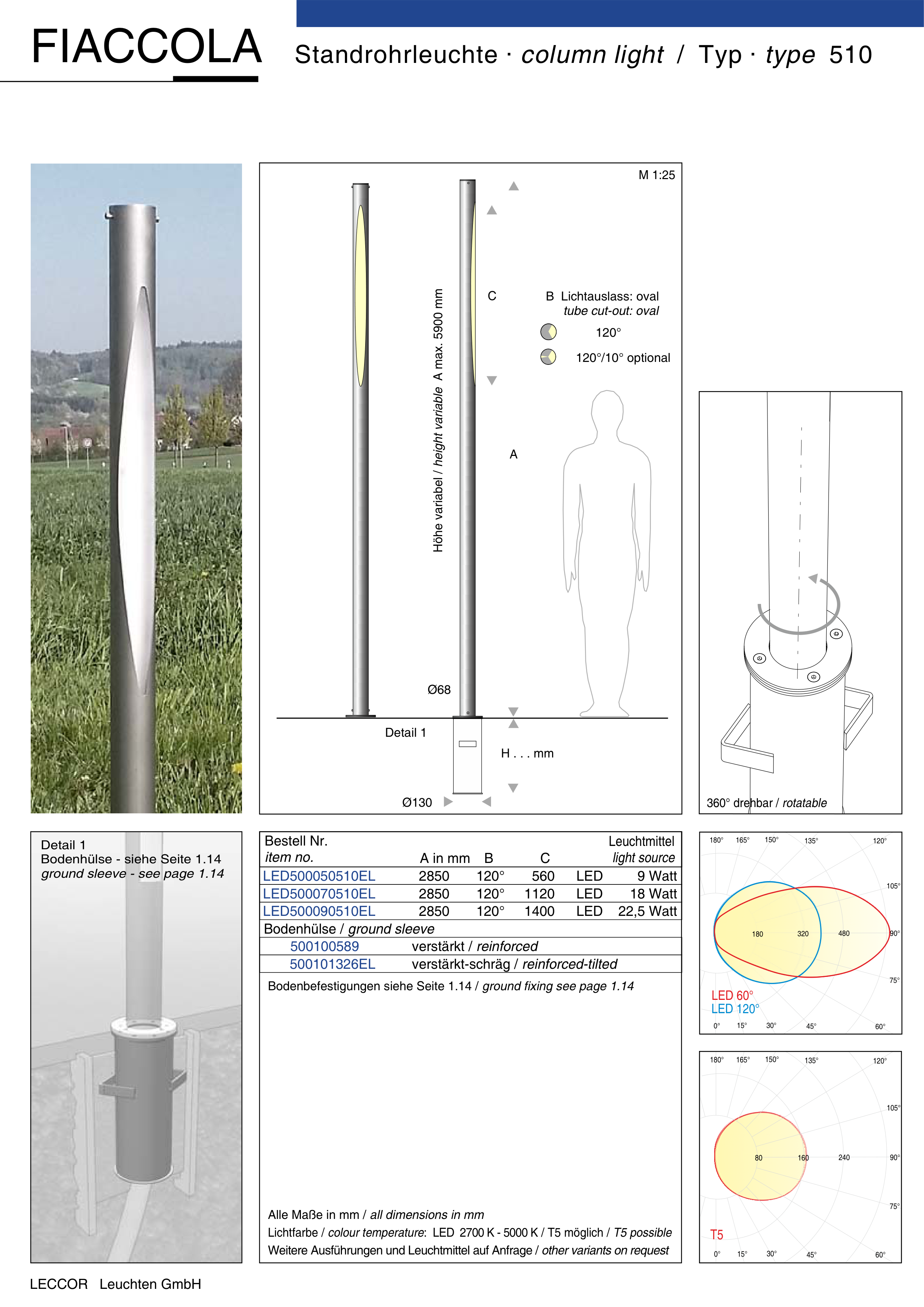

FIACCOLA
Standrohrleuchte ·
/ Typ ·
510
column light
type
Detail 1
Bodenhülse - siehe Seite 1.14
ground sleeve - see page 1.14
360° drehbar / rotatable
90°
75°
105°
120°
135°
150°
165°
180°
60°
45°
30°
15°
0°
480
320
180
LED 60°
LED 120°
90°
75°
105°
120°
135°
150°
165°
180°
60°
45°
30°
15°
0°
240
160
80
T5
LECCOR Leuchten GmbH
LED500050510EL
LED500070510EL
LED500090510EL
2850
2850
2850
120°
120°
120°
5 0
6
1120
1400
LED 9 Watt
LED 18 Watt
LED 22,5 Watt
Bodenhülse / ground sleeve
500100589
verstärkt / reinforced
A in mm
B
C
Leuchtmittel
light source
Lichtfarbe /
: LED 2700 K - 5000 K / T5 möglich /
colour temperature
T5 possible
Alle Maße in mm / all dimensions in mm
Weitere Ausführungen und Leuchtmittel auf Anfrage / other variants on request
120°/10° optional
B Lichtauslass: oval
tube cut-out: oval
Ø68
120°
A
C
H . . . mm
Ø130
Detail 1
Höhe variabel /
A max. 5900 mm
height variable
Bestell Nr.
item no.
Bodenbefestigungen siehe Seite 1.14 / ground fixing see page 1.14
500101326EL
verstärkt-schräg / reinforced-tilted
M 1:25
