86
Altopiano C 1.1, 3000K , 8W, 50°, cor-ten.
Impaginato_interno_pubblicazioni_news.indd 86
25/09/24 13:18
87

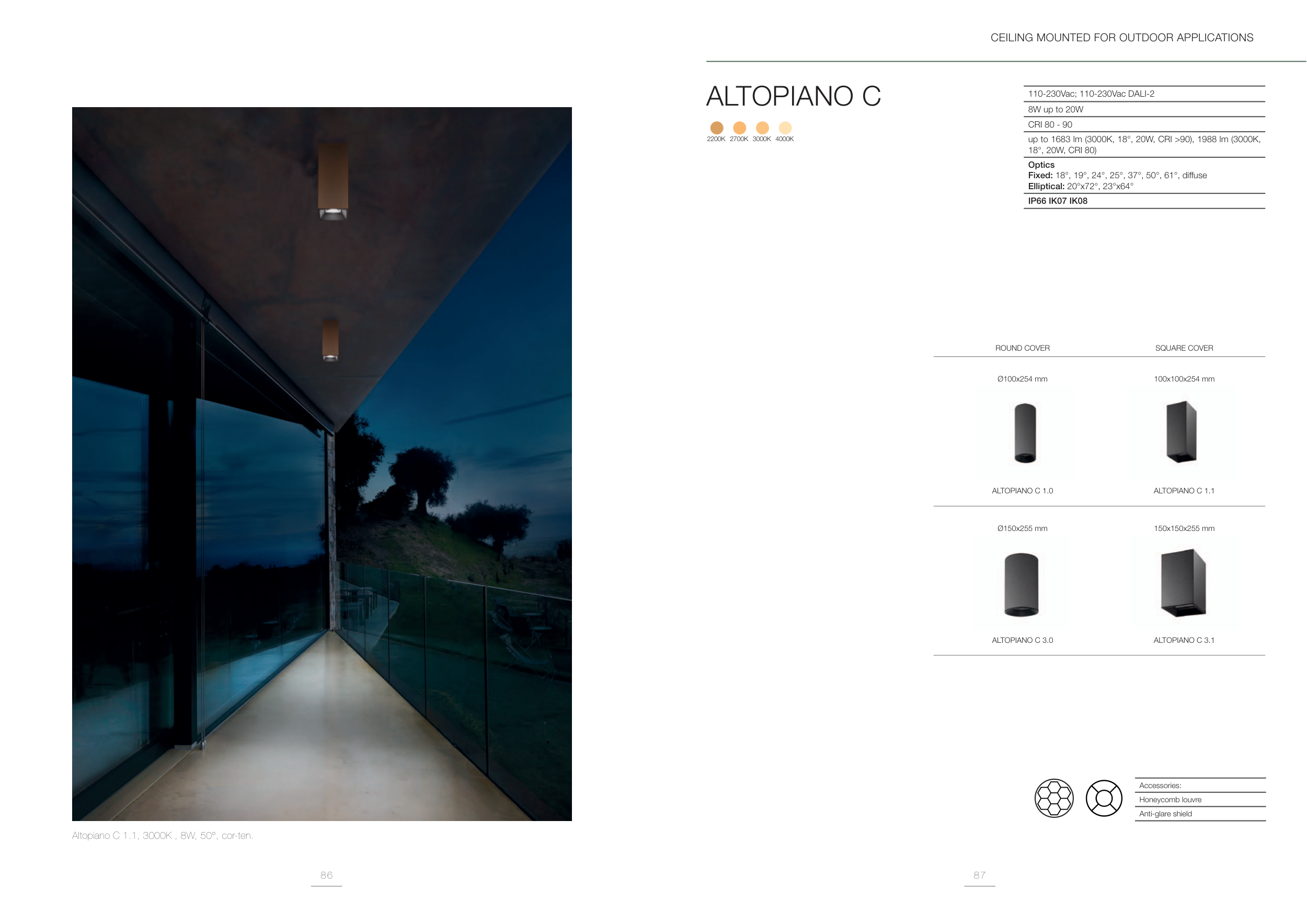

ALTOPIANO C
CEILING MOUNTED FOR OUTDOOR APPLICATIONS
2700K
2200K
3000K 4000K
ROUND COVER
SQUARE COVER
Ø100x254 mm
100x100x254 mm
ALTOPIANO C 1.0
ALTOPIANO C 1.1
Ø150x255 mm
150x150x255 mm
ALTOPIANO C 3.0
ALTOPIANO C 3.1
110-230Vac; 110-230Vac DALI-2
8W up to 20W
CRI 80 - 90
up to 1683 lm (3000K, 18°, 20W, CRI >90), 1988 lm (3000K,
18°, 20W, CRI 80)
Optics
Fixed: 18°, 19°, 24°, 25°, 37°, 50°, 61°, diffuse
Elliptical: 20°x72°, 23°x64°
IP66 IK07 IK08
Accessories:
Honeycomb louvre
Anti-glare shield
