80

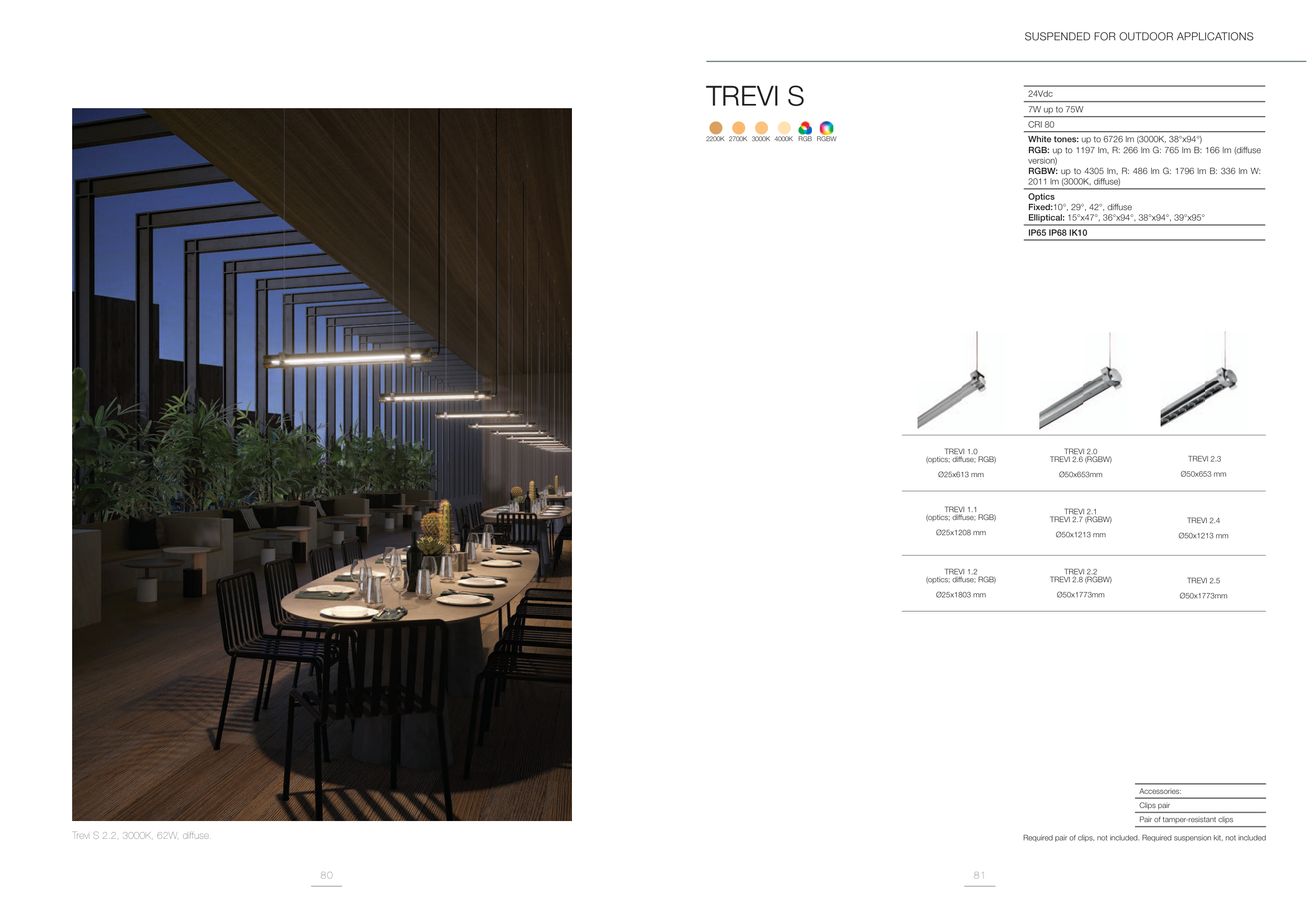

Trevi S 2.2, 3000K, 62W, diffuse.
Impaginato_interno_pubblicazioni_news.indd 80
25/09/24 13:18
81
TREVI S
SUSPENDED FOR OUTDOOR APPLICATIONS
TREVI
24Vdc
7W up to 75W
CRI 80
White tones: up to 6726 lm (3000K, 38°x94°)
RGB: up to 1197 lm, R: 266 lm G: 765 lm B: 166 lm (diffuse
version)
RGBW: up to 4305 lm, R: 486 lm G: 1796 lm B: 336 lm W:
2011 lm (3000K, diffuse)
Optics
Fixed:10°, 29°, 42°, diffuse
Elliptical: 15°x47°, 36°x94°, 38°x94°, 39°x95°
IP65 IP68 IK10
Accessories:
Clips pair
Pair of tamper-resistant clips
RGB
2700K
2200K
3000K 4000K
RGBW
Required pair of clips, not included. Required suspension kit, not included
TREVI 1.0
(optics; diffuse; RGB)
Ø25x613 mm
TREVI 2.0
TREVI 2.6 (RGBW)
Ø50x653mm
TREVI 2.3
Ø50x653 mm
TREVI 1.1
(optics; diffuse; RGB)
Ø25x1208 mm
TREVI 2.1
TREVI 2.7 (RGBW)
Ø50x1213 mm
TREVI 2.4
Ø50x1213 mm
TREVI 1.2
(optics; diffuse; RGB)
Ø25x1803 mm
TREVI 2.2
TREVI 2.8 (RGBW)
Ø50x1773mm
TREVI 2.5
Ø50x1773mm
