70

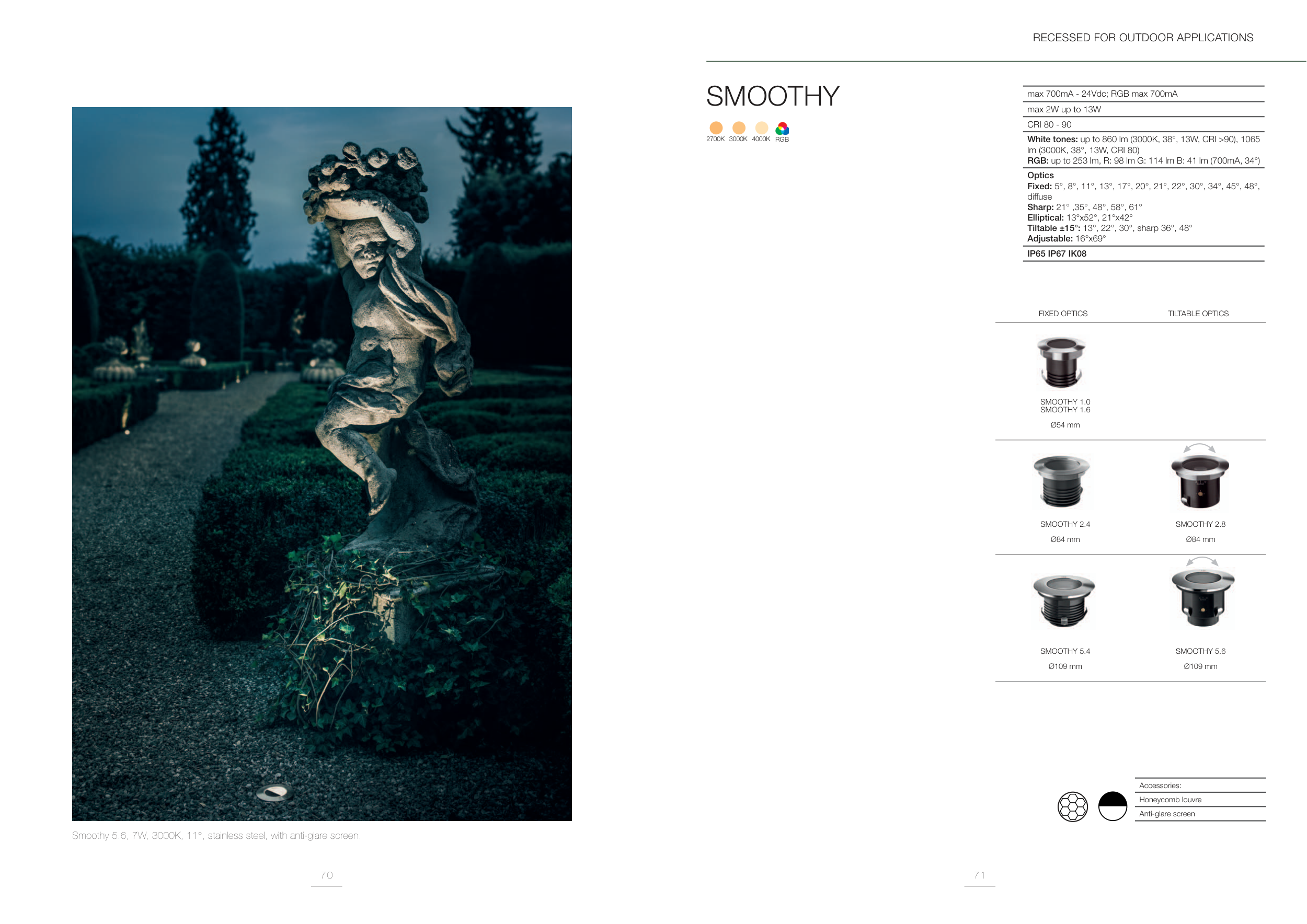

Smoothy 5.6, 7W, 3000K, 11°, stainless steel, with anti-glare screen.
Impaginato_interno_pubblicazioni_news.indd 70
25/09/24 13:18
71
SMOOTHY
RECESSED FOR OUTDOOR APPLICATIONS
FIXED OPTICS
TILTABLE OPTICS
SMOOTHY 1.0
SMOOTHY 1.6
Ø54 mm
SMOOTHY 2.4
Ø84 mm
SMOOTHY 2.8
Ø84 mm
SMOOTHY 5.4
Ø109 mm
SMOOTHY 5.6
Ø109 mm
max 700mA - 24Vdc; RGB max 700mA
max 2W up to 13W
CRI 80 - 90
White tones: up to 860 lm (3000K, 38°, 13W, CRI >90), 1065
lm (3000K, 38°, 13W, CRI 80)
RGB: up to 253 lm, R: 98 lm G: 114 lm B: 41 lm (700mA, 34°)
Optics
Fixed: 5°, 8°, 11°, 13°, 17°, 20°, 21°, 22°, 30°, 34°, 45°, 48°,
diffuse
Sharp: 21° ,35°, 48°, 58°, 61°
Elliptical: 13°x52°, 21°x42°
Tiltable ±15°: 13°, 22°, 30°, sharp 36°, 48°
Adjustable: 16°x69°
IP65 IP67 IK08
Accessories:
Honeycomb louvre
Anti-glare screen
2700K 3000K 4000K RGB
