56

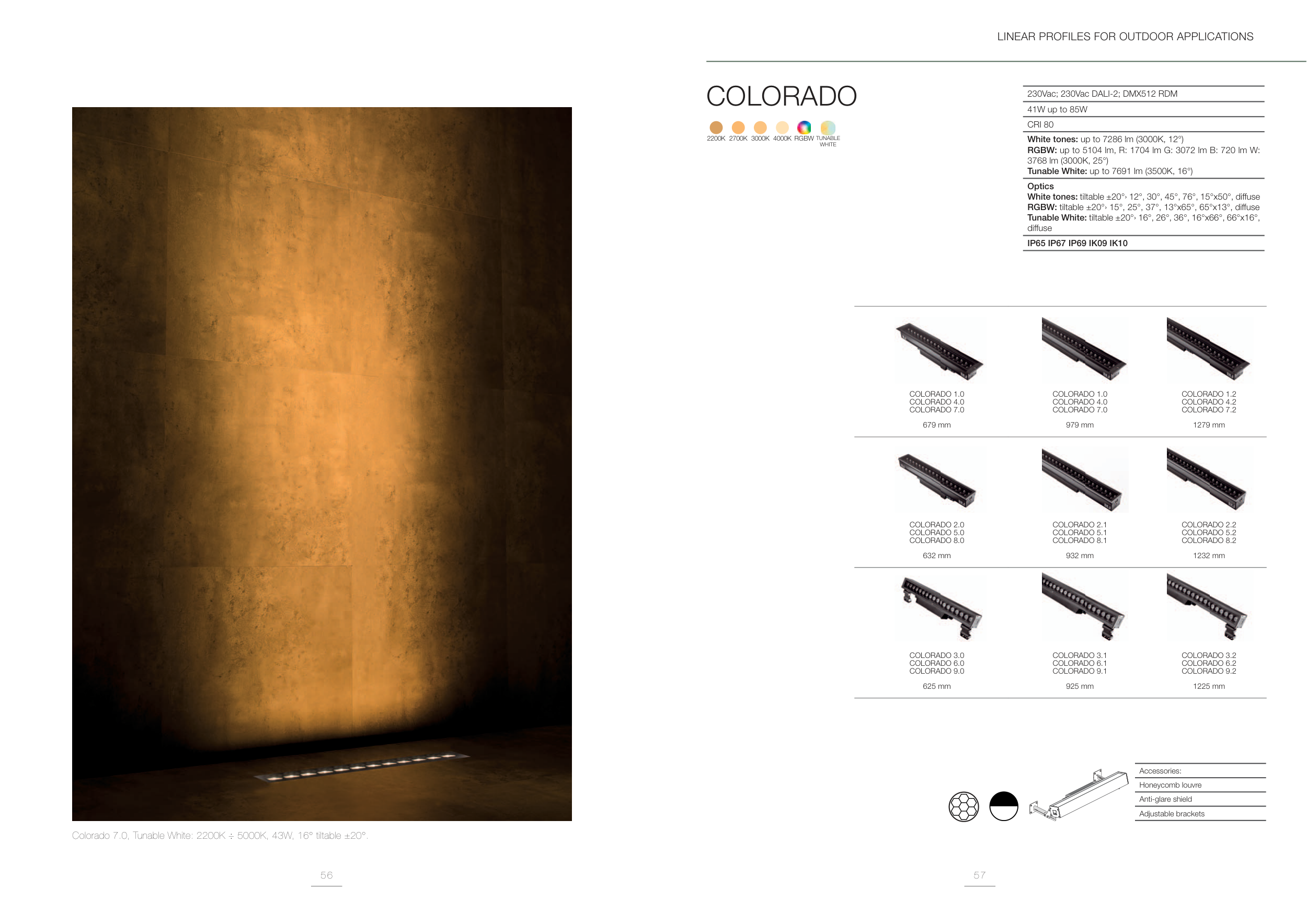

Colorado 7.0, Tunable White: 2200K ÷ 5000K, 43W, 16° tiltable ±20°.
Impaginato_interno_pubblicazioni_news.indd 56
25/09/24 13:16
57
COLORADO
LINEAR PROFILES FOR OUTDOOR APPLICATIONS
COLORADO 1.0
COLORADO 4.0
COLORADO 7.0
679 mm
COLORADO 1.0
COLORADO 4.0
COLORADO 7.0
979 mm
COLORADO 1.2
COLORADO 4.2
COLORADO 7.2
1279 mm
COLORADO 2.0
COLORADO 5.0
COLORADO 8.0
632 mm
COLORADO 2.1
COLORADO 5.1
COLORADO 8.1
932 mm
COLORADO 2.2
COLORADO 5.2
COLORADO 8.2
1232 mm
COLORADO 3.0
COLORADO 6.0
COLORADO 9.0
625 mm
COLORADO 3.1
COLORADO 6.1
COLORADO 9.1
925 mm
COLORADO 3.2
COLORADO 6.2
COLORADO 9.2
1225 mm
2700K
2200K
3000K 4000K RGBW TUNABLE
WHITE
230Vac; 230Vac DALI-2; DMX512 RDM
41W up to 85W
CRI 80
White tones: up to 7286 lm (3000K, 12°)
RGBW: up to 5104 lm, R: 1704 lm G: 3072 lm B: 720 lm W:
3768 lm (3000K, 25°)
Tunable White: up to 7691 lm (3500K, 16°)
Optics
White tones: tiltable ±20°› 12°, 30°, 45°, 76°, 15°x50°, diffuse
RGBW: tiltable ±20°› 15°, 25°, 37°, 13°x65°, 65°x13°, diffuse
Tunable White: tiltable ±20°› 16°, 26°, 36°, 16°x66°, 66°x16°,
diffuse
IP65 IP67 IP69 IK09 IK10
Accessories:
Honeycomb louvre
Anti-glare shield
Adjustable brackets
