22

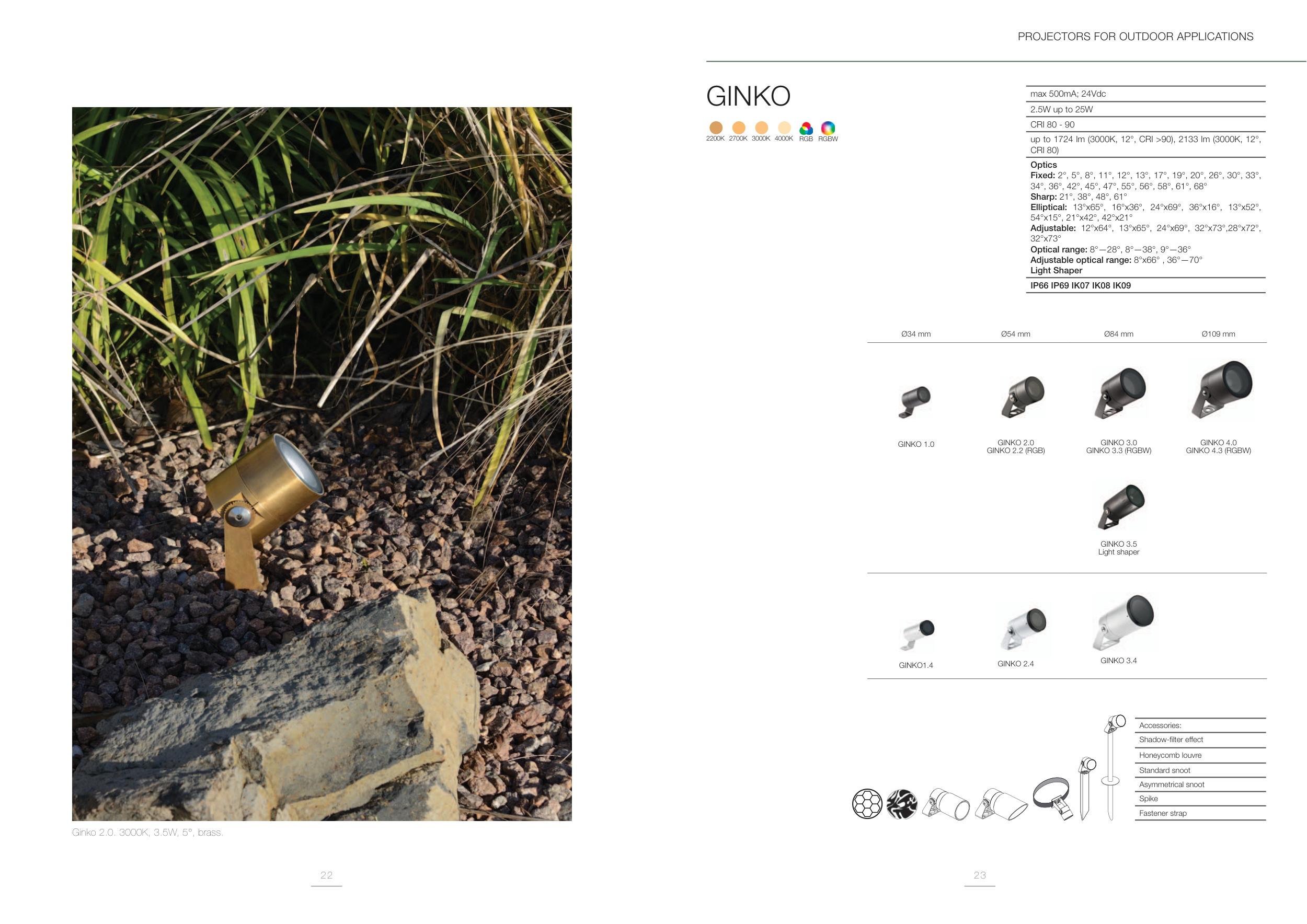

Ginko 2.0. 3000K, 3.5W, 5°, brass.
Impaginato_interno_pubblicazioni_news.indd 22
25/09/24 13:12
23
GINKO
PROJECTORS FOR OUTDOOR APPLICATIONS
max 500mA; 24Vdc
2.5W up to 25W
CRI 80 - 90
up to 1724 lm (3000K, 12°, CRI >90), 2133 lm (3000K, 12°,
CRI 80)
Optics
Fixed: 2°, 5°, 8°, 11°, 12°, 13°, 17°, 19°, 20°, 26°, 30°, 33°,
34°, 36°, 42°, 45°, 47°, 55°, 56°, 58°, 61°, 68°
Sharp: 21°, 38°, 48°, 61°
Elliptical: 13°x65°, 16°x36°, 24°x69°, 36°x16°, 13°x52°,
54°x15°, 21°x42°, 42°x21°
Adjustable: 12°x64°, 13°x65°, 24°x69°, 32°x73°,28°x72°,
32°x73°
Optical range: 8°—28°, 8°—38°, 9°—36°
Adjustable optical range: 8°x66° , 36°—70°
Light Shaper
IP66 IP69 IK07 IK08 IK09
2700K
2200K
3000K 4000K
Accessories:
Shadow-filter effect
Honeycomb louvre
Standard snoot
Asymmetrical snoot
Spike
Fastener strap
RGBW
RGB
Ø34 mm
Ø54 mm
Ø84 mm
Ø109 mm
GINKO 1.0
GINKO 2.0
GINKO 2.2 (RGB)
GINKO 3.0
GINKO 3.3 (RGBW)
GINKO 4.0
GINKO 4.3 (RGBW)
GINKO 3.5
Light shaper
GINKO1.4
GINKO 2.4
GINKO 3.4
