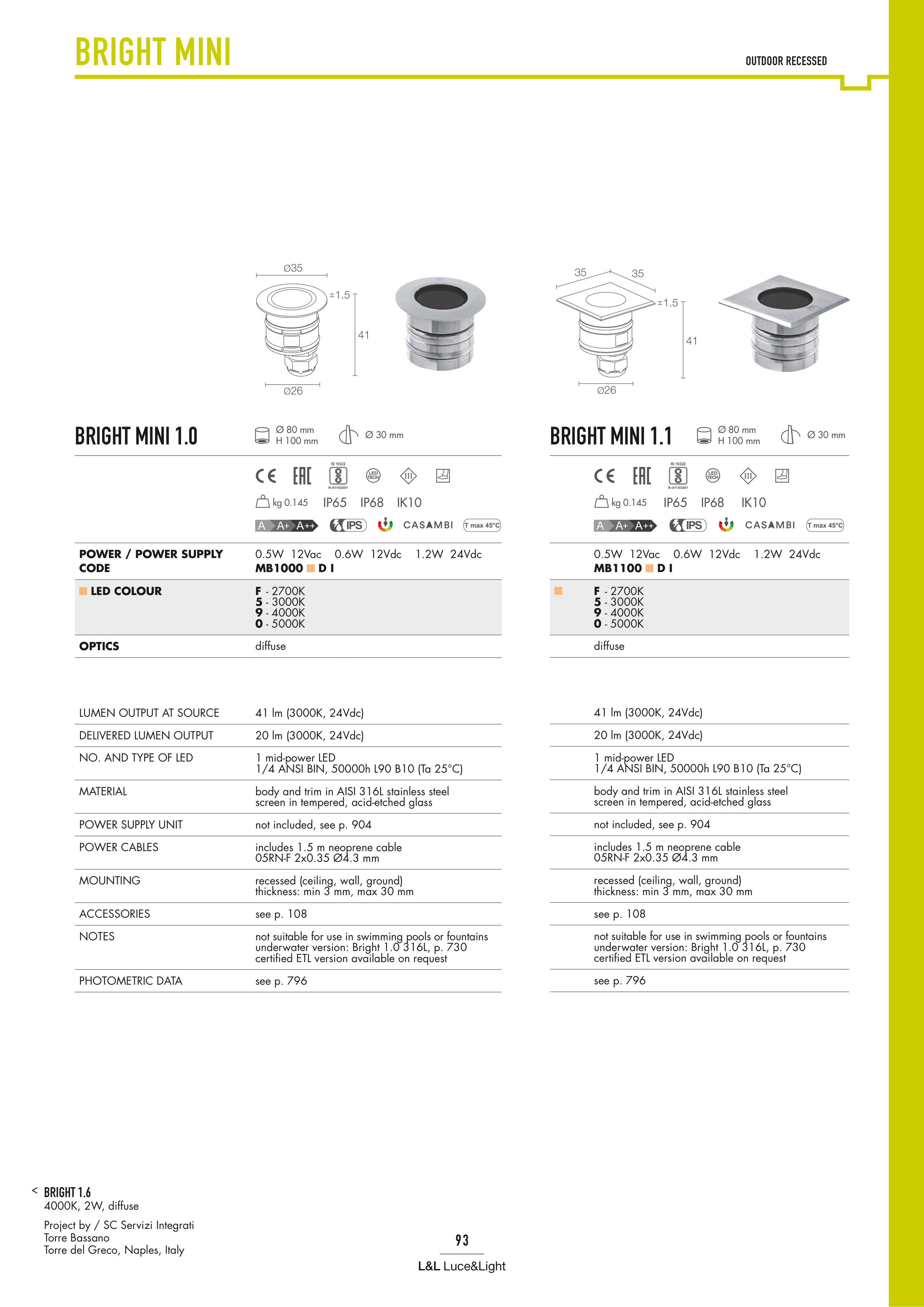

BRIGHT MINI 1.0
BRIGHT MINI 1.1
IK10
IK10
IP65
IP68
IP65
IP68
Ø 30 mm
Ø 30 mm
Ø 80 mm
H 100 mm
Ø 80 mm
H 100 mm
BRIGHT MINI
POWER / POWER SUPPLY
CODE
0.5W 12Vac 0.6W 12Vdc 1.2W 24Vdc
MB1000 D I
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
41 lm (3000K, 24Vdc)
DELIVERED LUMEN OUTPUT
20 lm (3000K, 24Vdc)
NO. AND TYPE OF LED
1 mid-power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in AISI 316L stainless steel
screen in tempered, acid-etched glass
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 1.5 m neoprene cable
05RN-F 2x0.35 Ø4.3 mm
MOUNTING
recessed (ceiling, wall, ground)
thickness: min 3 mm, max 30 mm
ACCESSORIES
see p. 108
NOTES
not suitable for use in swimming pools or fountains
underwater version: Bright 1.0 316L, p. 730
certified ETL version available on request
PHOTOMETRIC DATA
see p. 796
0.5W 12Vac 0.6W 12Vdc 1.2W 24Vdc
MB1100 D I
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
diffuse
41 lm (3000K, 24Vdc)
20 lm (3000K, 24Vdc)
1 mid-power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
body and trim in AISI 316L stainless steel
screen in tempered, acid-etched glass
not included, see p. 904
includes 1.5 m neoprene cable
05RN-F 2x0.35 Ø4.3 mm
recessed (ceiling, wall, ground)
thickness: min 3 mm, max 30 mm
see p. 108
not suitable for use in swimming pools or fountains
underwater version: Bright 1.0 316L, p. 730
certified ETL version available on request
see p. 796
BRIGHT 1.6
4000K, 2W, diffuse
Project by / SC Servizi Integrati
Torre Bassano
Torre del Greco, Naples, Italy
kg 0.145
kg 0.145
OUTDOOR RECESSED
41
Ø35
Ø26
1.5
Ø26
35
35
41
1.5
