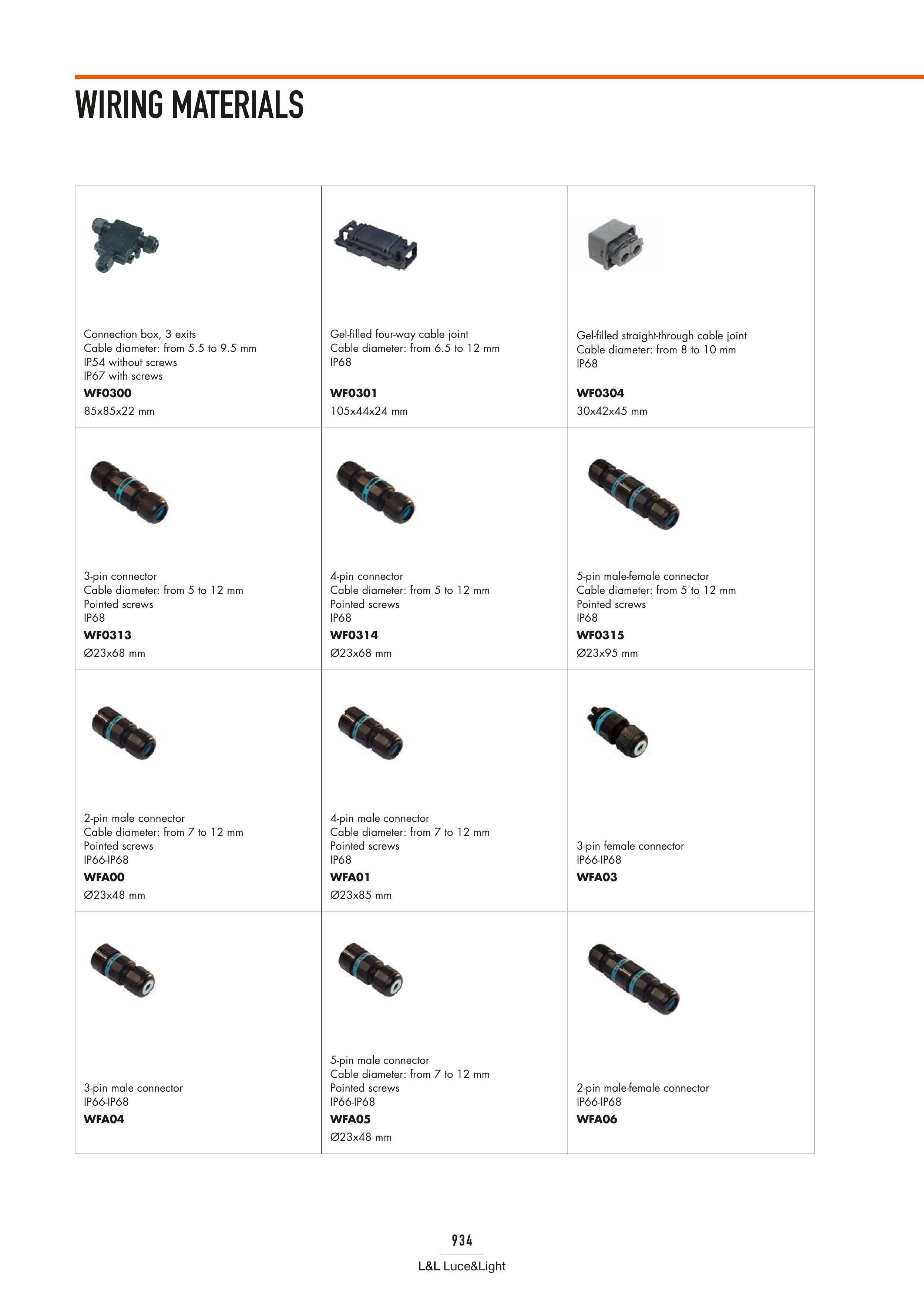

WIRING MATERIALS
Connection box, 3 exits
Cable diameter: from 5.5 to 9.5 mm
IP54 without screws
IP67 with screws
WF0300
85x85x22 mm
Gel-filled four-way cable joint
Cable diameter: from 6.5 to 12 mm
IP68
WF0301
105x44x24 mm
Gel-filled straight-through cable joint
Cable diameter: from 8 to 10 mm
IP68
WF0304
30x42x45 mm
3-pin connector
Cable diameter: from 5 to 12 mm
Pointed screws
IP68
WF0313
Ø23x68 mm
4-pin connector
Cable diameter: from 5 to 12 mm
Pointed screws
IP68
WF0314
Ø23x68 mm
5-pin male-female connector
Cable diameter: from 5 to 12 mm
Pointed screws
IP68
WF0315
Ø23x95 mm
2-pin male connector
Cable diameter: from 7 to 12 mm
Pointed screws
IP66-IP68
WFA00
Ø23x48 mm
4-pin male connector
Cable diameter: from 7 to 12 mm
Pointed screws
IP68
WFA01
Ø23x85 mm
3-pin female connector
IP66-IP68
WFA03
3-pin male connector
IP66-IP68
WFA04
5-pin male connector
Cable diameter: from 7 to 12 mm
Pointed screws
IP66-IP68
WFA05
Ø23x48 mm
2-pin male-female connector
IP66-IP68
WFA06
