Push Buttons N.O.
Dimmer
Tunable
White 350mA
RGB 500mA
RGBW 24Vdc
DC IN
12/24 Vdc
DC IN
LED DIM M ER
LED DIM M ER
LED DIM M ER
COM
IN1
INPUT
COM
IN2
COM
IN3
COM
IN4
COM
IN1
INPUT
COM
IN2
COM
IN3
COM
IN4
COM
IN1
INPUT
COM
IN2
COM
IN3
COM
IN4
L4-
L3-
L2-
L1-
L+
-
+
-
+
OUTPUT
DC IN
L4-
L3-
L2-
L1-
L+
-
+
-
+
OUTPUT
DC IN
L4-
L3-
L2-
L1-
L+
-
+
-
+
OUTPUT
EC0CEN12445020
EC0CEN12443520
EC0CEN12445A20
EC0CEN1244DA20
The Casambi app automatically recognizes L&L lighting fixtures and lets you control them easily and fully.
You can create lighting scenes with white light, dynamic white, RGB and RGBW, and program timings for them.
Most L&L products are compatible with the Casambi app: simply add one of the available controllers at the time of purchase or any time thereafter.
Suitable L&L fixtures are identified by the Casambi logo.
The Casambi app is available free of charge on the App Store and Google Play.
• EC0CEN12443520 4-channel low-voltage controller with constant current output (350mA);
• EC0CEN12445020 4-channel low-voltage controller with constant current output (500mA);
• EC0CEN12445A20 4-channel low-voltage controller with constant voltage output.
These devices allow you to adjust brightness, create multiple lighting scenes and achieve the colour effects you want using commands
that can be controlled from the Casambi app.
The devices have four (NO) push button inputs so you can activate up to four scenes.
• EC0TIM12840020 timer: synchronizes Casambi scenes and programming in the event of a blackout or power failure;
• EC0CEN1244DA20 Casambi single-channel low-voltage LED dimmer capable of controlling monochromatic loads;
It also has one (NO) push-button input to activate the set scene via the app.

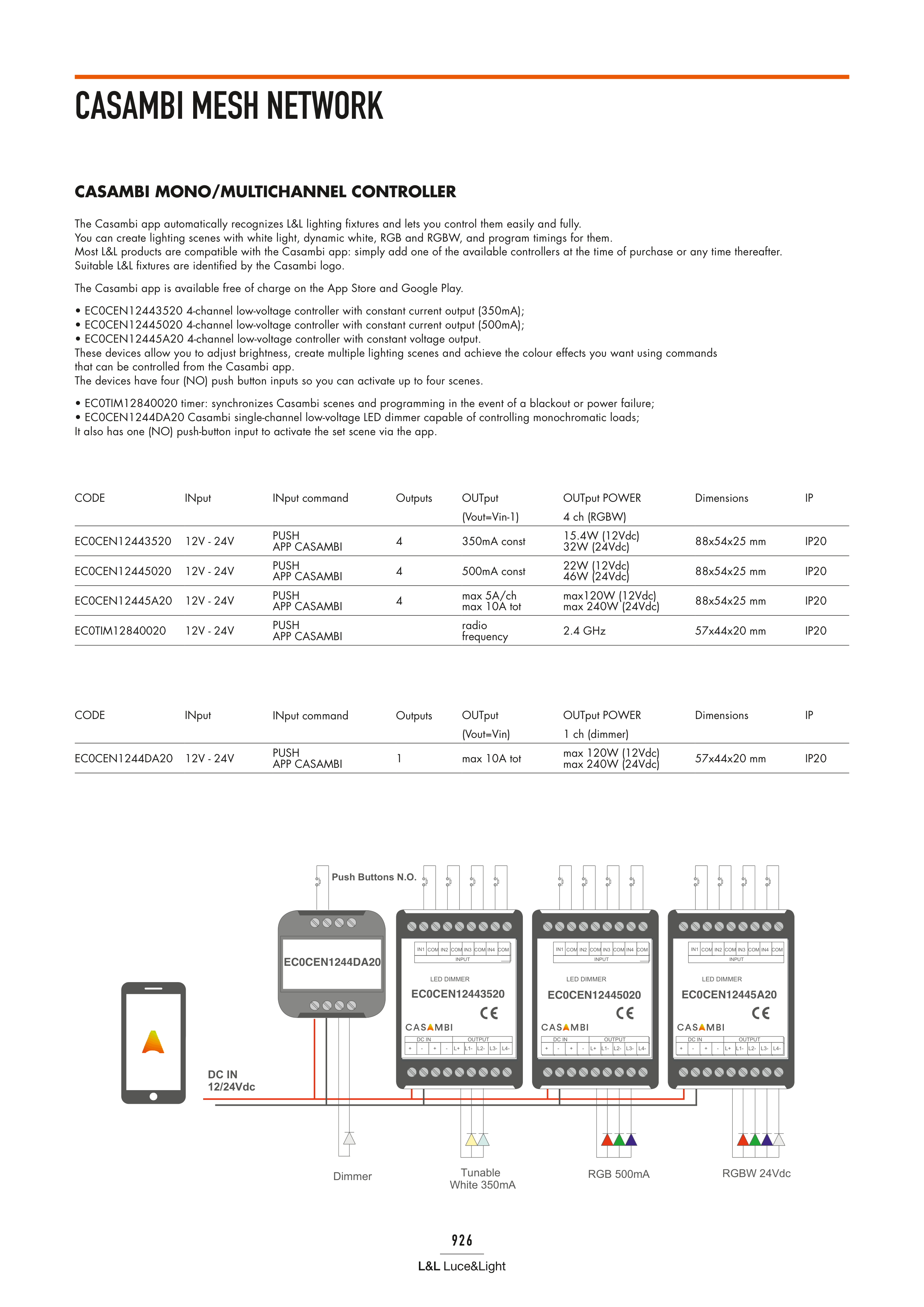

CASAMBI MONO/MULTICHANNEL CONTROLLER
CODE
INput
INput command
Outputs
OUTput
OUTput POWER
Dimensions
IP
(Vout=Vin-1)
4 ch (RGBW)
EC0CEN12443520
12V - 24V
PUSH
APP CASAMBI
4
350mA const
15.4W (12Vdc)
32W (24Vdc)
88x54x25 mm
IP20
EC0CEN12445020
12V - 24V
PUSH
APP CASAMBI
4
500mA const
22W (12Vdc)
46W (24Vdc)
88x54x25 mm
IP20
EC0CEN12445A20
12V - 24V
PUSH
APP CASAMBI
4
max 5A/ch
max 10A tot
max120W (12Vdc)
max 240W (24Vdc)
88x54x25 mm
IP20
EC0TIM12840020
12V - 24V
PUSH
APP CASAMBI
radio
frequency
2.4 GHz
57x44x20 mm
IP20
CODE
INput
INput command
Outputs
OUTput
OUTput POWER
Dimensions
IP
(Vout=Vin)
1 ch (dimmer)
EC0CEN1244DA20
12V - 24V
PUSH
APP CASAMBI
1
max 10A tot
max 120W (12Vdc)
max 240W (24Vdc)
57x44x20 mm
IP20
CASAMBI MESH NETWORK
