923
922
L
L
R
G B
N
DATA ON
1
12
12
L
N
PB
N GRD
+ -
+ -
+ -
RGB
RGB
RGB
DMX
IN
DMX
OUT
+ - GND + - GND
AR330350TC

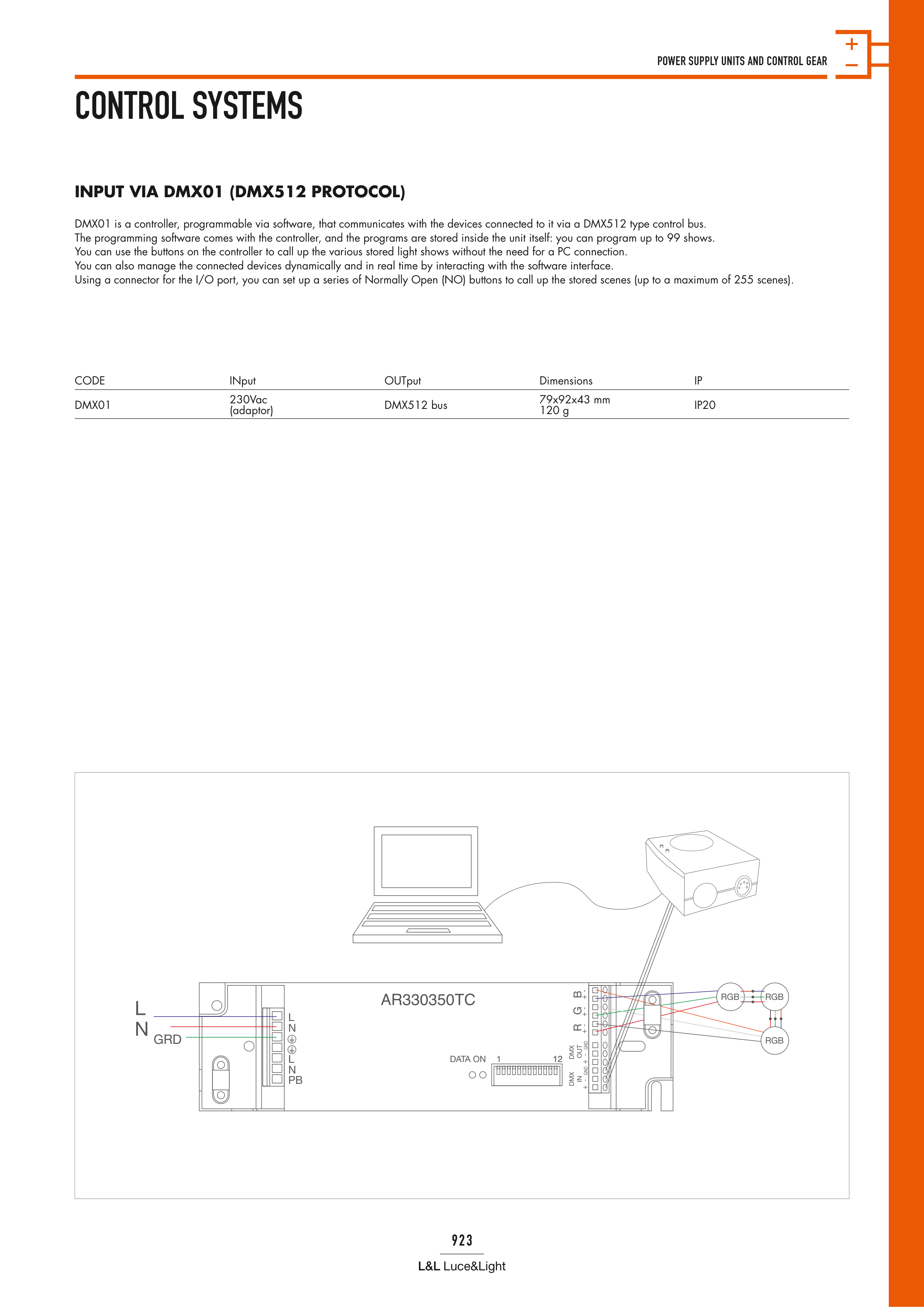

DMX01 is a controller, programmable via software, that communicates with the devices connected to it via a DMX512 type control bus.
The programming software comes with the controller, and the programs are stored inside the unit itself: you can program up to 99 shows.
You can use the buttons on the controller to call up the various stored light shows without the need for a PC connection.
You can also manage the connected devices dynamically and in real time by interacting with the software interface.
Using a connector for the I/O port, you can set up a series of Normally Open (NO) buttons to call up the stored scenes (up to a maximum of 255 scenes).
INPUT VIA DMX01 (DMX512 PROTOCOL)
CODE
INput
OUTput
Dimensions
IP
DMX01
230Vac
(adaptor)
DMX512 bus
79x92x43 mm
120 g
IP20
CONTROL SYSTEMS
POWER SUPPLY UNITS AND CONTROL GEAR
