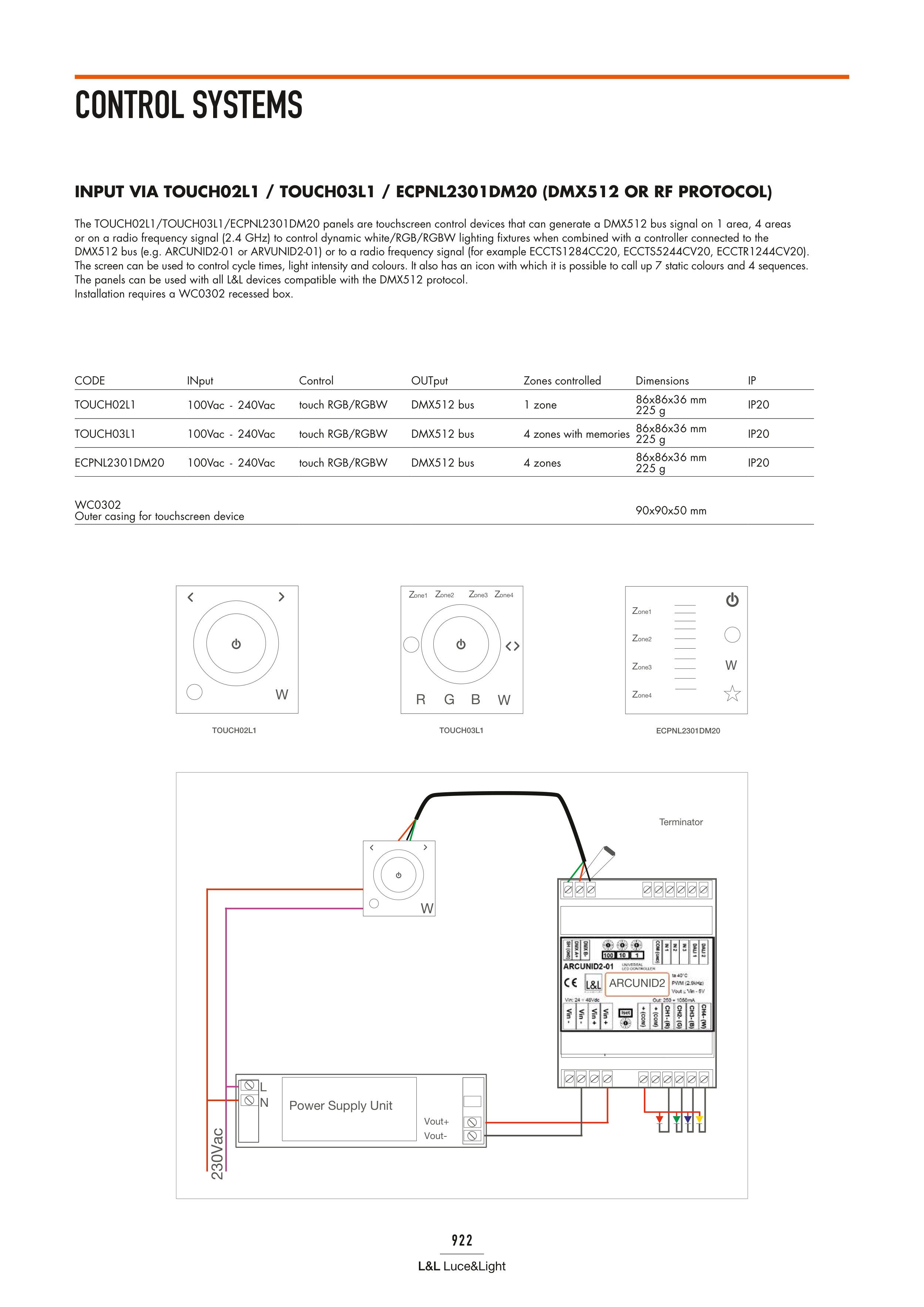

The TOUCH02L1/TOUCH03L1/ECPNL2301DM20 panels are touchscreen control devices that can generate a DMX512 bus signal on 1 area, 4 areas
or on a radio frequency signal (2.4 GHz) to control dynamic white/RGB/RGBW lighting fixtures when combined with a controller connected to the
DMX512 bus (e.g. ARCUNID2-01 or ARVUNID2-01) or to a radio frequency signal (for example ECCTS1284CC20, ECCTS5244CV20, ECCTR1244CV20).
The screen can be used to control cycle times, light intensity and colours. It also has an icon with which it is possible to call up 7 static colours and 4 sequences.
The panels can be used with all L&L devices compatible with the DMX512 protocol.
Installation requires a WC0302 recessed box.
INPUT VIA TOUCH02L1 / TOUCH03L1 / ECPNL2301DM20 (DMX512 OR RF PROTOCOL)
CODE
INput
Control
OUTput
Zones controlled
Dimensions
IP
TOUCH02L1
100Vac - 240Vac
touch RGB/RGBW
DMX512 bus
1 zone
86x86x36 mm
225 g
IP20
TOUCH03L1
100Vac - 240Vac
touch RGB/RGBW
DMX512 bus
4 zones with memories 86x86x36 mm
225 g
IP20
ECPNL2301DM20
100Vac - 240Vac
touch RGB/RGBW
DMX512 bus
4 zones
86x86x36 mm
225 g
IP20
WC0302
Outer casing for touchscreen device
90x90x50 mm
Terminator
