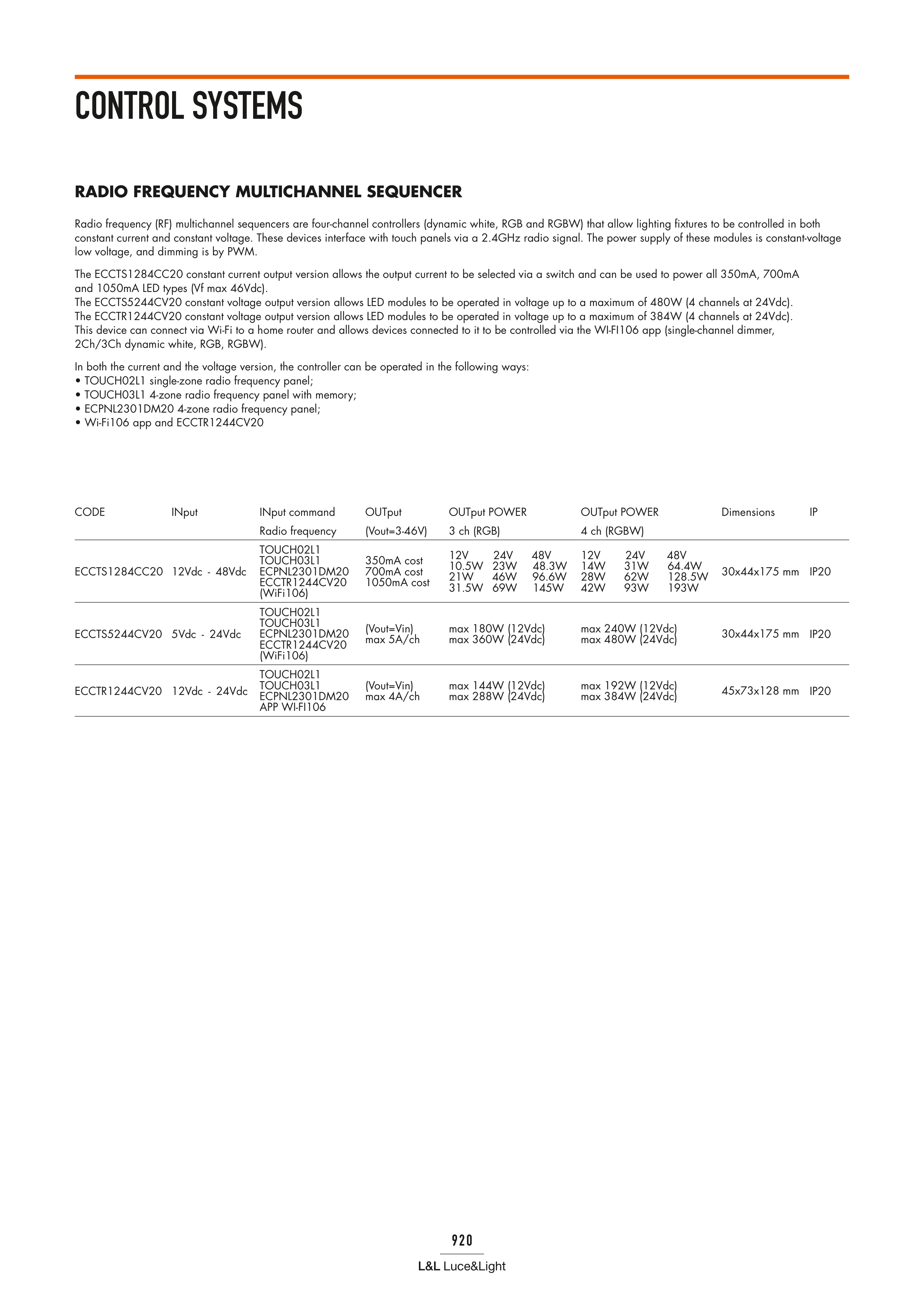

Radio frequency (RF) multichannel sequencers are four-channel controllers (dynamic white, RGB and RGBW) that allow lighting fixtures to be controlled in both
constant current and constant voltage. These devices interface with touch panels via a 2.4GHz radio signal. The power supply of these modules is constant-voltage
low voltage, and dimming is by PWM.
The ECCTS1284CC20 constant current output version allows the output current to be selected via a switch and can be used to power all 350mA, 700mA
and 1050mA LED types (Vf max 46Vdc).
The ECCTS5244CV20 constant voltage output version allows LED modules to be operated in voltage up to a maximum of 480W (4 channels at 24Vdc).
The ECCTR1244CV20 constant voltage output version allows LED modules to be operated in voltage up to a maximum of 384W (4 channels at 24Vdc).
This device can connect via Wi-Fi to a home router and allows devices connected to it to be controlled via the WI-FI106 app (single-channel dimmer,
2Ch/3Ch dynamic white, RGB, RGBW).
In both the current and the voltage version, the controller can be operated in the following ways:
• TOUCH02L1 single-zone radio frequency panel;
• TOUCH03L1 4-zone radio frequency panel with memory;
• ECPNL2301DM20 4-zone radio frequency panel;
• Wi-Fi106 app and ECCTR1244CV20
CONTROL SYSTEMS
CODE
INput
INput command
OUTput
OUTput POWER
OUTput POWER
Dimensions
IP
Radio frequency
(Vout=3-46V)
3 ch (RGB)
4 ch (RGBW)
ECCTS1284CC20 12Vdc - 48Vdc
TOUCH02L1
TOUCH03L1
ECPNL2301DM20
ECCTR1244CV20
(WiFi106)
350mA cost
700mA cost
1050mA cost
12V 24V 48V
10.5W 23W 48.3W
21W 46W 96.6W
31.5W 69W 145W
12V 24V 48V
14W 31W 64.4W
28W 62W 128.5W
42W 93W 193W
30x44x175 mm
IP20
ECCTS5244CV20
5Vdc - 24Vdc
TOUCH02L1
TOUCH03L1
ECPNL2301DM20
ECCTR1244CV20
(WiFi106)
(Vout=Vin)
max 5A/ch
max 180W (12Vdc)
max 360W (24Vdc)
max 240W (12Vdc)
max 480W (24Vdc)
30x44x175 mm
IP20
ECCTR1244CV20
12Vdc - 24Vdc
TOUCH02L1
TOUCH03L1
ECPNL2301DM20
APP WI-FI106
(Vout=Vin)
max 4A/ch
max 144W (12Vdc)
max 288W (24Vdc)
max 192W (12Vdc)
max 384W (24Vdc)
45x73x128 mm
IP20
RADIO FREQUENCY MULTICHANNEL SEQUENCER
