Control using DALI or DMX512 bus
Control using 0–10V
Push button control

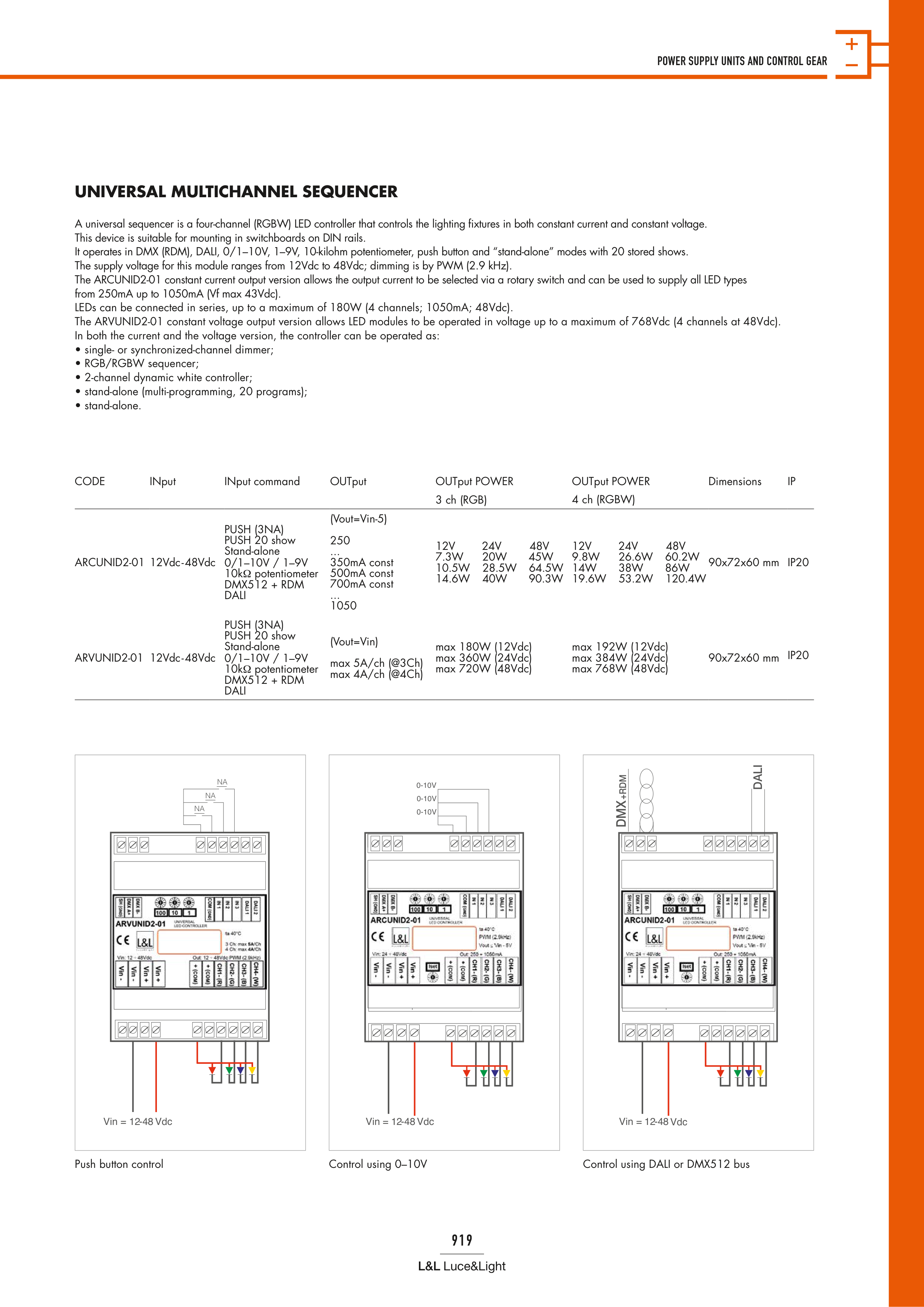

POWER SUPPLY UNITS AND CONTROL GEAR
UNIVERSAL MULTICHANNEL SEQUENCER
A universal sequencer is a four-channel (RGBW) LED controller that controls the lighting fixtures in both constant current and constant voltage.
This device is suitable for mounting in switchboards on DIN rails.
It operates in DMX (RDM), DALI, 0/1–10V, 1–9V, 10-kilohm potentiometer, push button and “stand-alone” modes with 20 stored shows.
The supply voltage for this module ranges from 12Vdc to 48Vdc; dimming is by PWM (2.9 kHz).
The ARCUNID2-01 constant current output version allows the output current to be selected via a rotary switch and can be used to supply all LED types
from 250mA up to 1050mA (Vf max 43Vdc).
LEDs can be connected in series, up to a maximum of 180W (4 channels; 1050mA; 48Vdc).
The ARVUNID2-01 constant voltage output version allows LED modules to be operated in voltage up to a maximum of 768Vdc (4 channels at 48Vdc).
In both the current and the voltage version, the controller can be operated as:
• single- or synchronized-channel dimmer;
• RGB/RGBW sequencer;
• 2-channel dynamic white controller;
• stand-alone (multi-programming, 20 programs);
• stand-alone.
CODE
INput
INput command
OUTput
OUTput POWER
OUTput POWER
Dimensions
IP
3 ch (RGB)
4 ch (RGBW)
ARCUNID2-01 12Vdc-48Vdc
PUSH (3NA)
PUSH 20 show
Stand-alone
0/1–10V / 1–9V
10kΩ potentiometer
DMX512 + RDM
DALI
(Vout=Vin-5)
250
...
350mA const
500mA const
700mA const
...
1050
12V 24V 48V
7.3W 20W 45W
10.5W 28.5W 64.5W
14.6W 40W 90.3W
12V 24V 48V
9.8W 26.6W 60.2W
14W 38W 86W
19.6W 53.2W 120.4W
90x72x60 mm IP20
ARVUNID2-01 12Vdc-48Vdc
PUSH (3NA)
PUSH 20 show
Stand-alone
0/1–10V / 1–9V
10kΩ potentiometer
DMX512 + RDM
DALI
(Vout=Vin)
max 5A/ch (@3Ch)
max 4A/ch (@4Ch)
max 180W (12Vdc)
max 360W (24Vdc)
max 720W (48Vdc)
max 192W (12Vdc)
max 384W (24Vdc)
max 768W (48Vdc)
90x72x60 mm IP20
