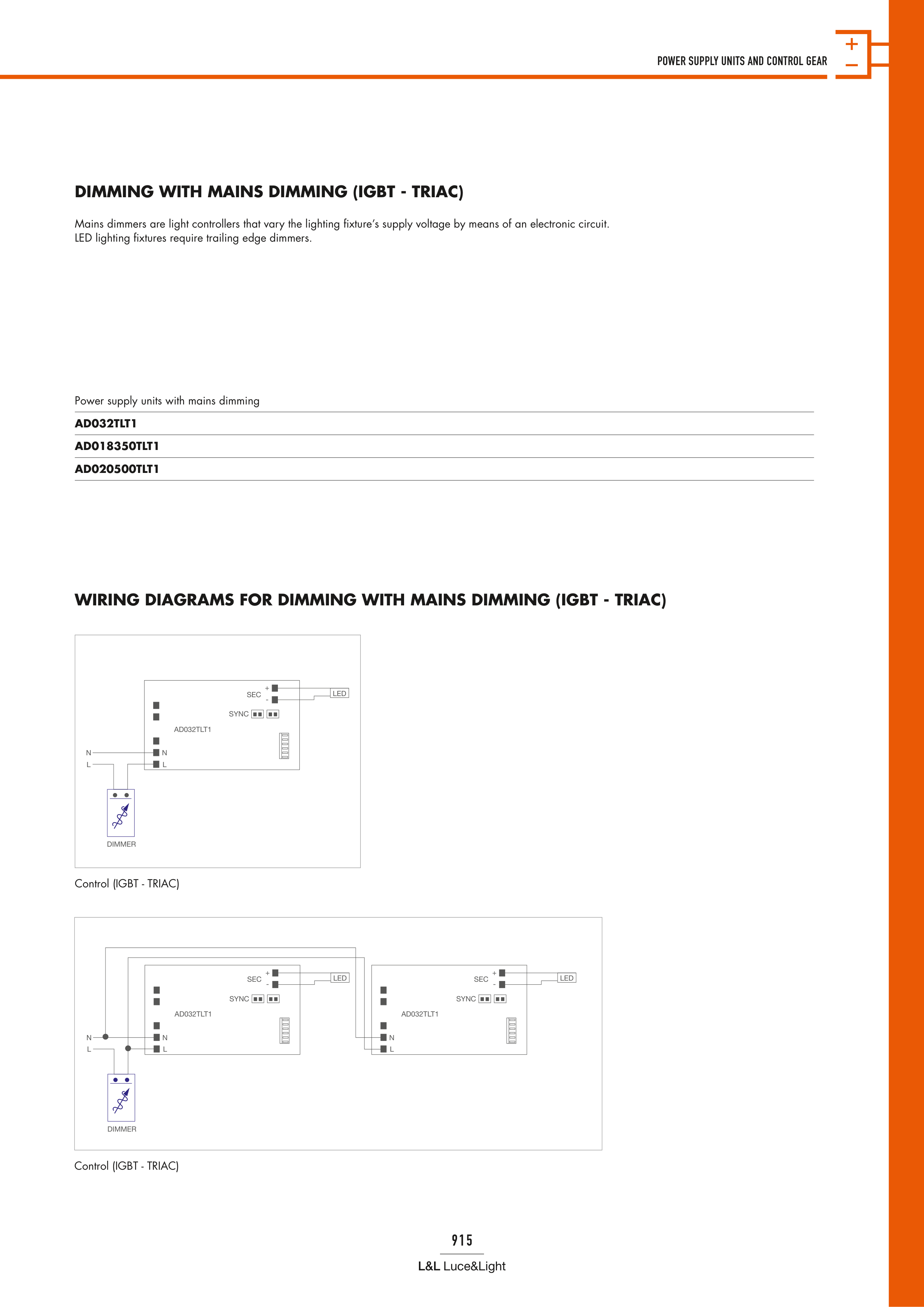

DIMMING WITH MAINS DIMMING (IGBT - TRIAC)
Control (IGBT - TRIAC)
Control (IGBT - TRIAC)
WIRING DIAGRAMS FOR DIMMING WITH MAINS DIMMING (IGBT - TRIAC)
POWER SUPPLY UNITS AND CONTROL GEAR
Mains dimmers are light controllers that vary the lighting fixture’s supply voltage by means of an electronic circuit.
LED lighting fixtures require trailing edge dimmers.
Power supply units with mains dimming
AD032TLT1
AD018350TLT1
AD020500TLT1
