L&L Luce&Light
911
SYNC
N
L
N
L
+
-
SEC
LED
PUSH
PUSH
SYNC
SYNC CABLE WX06/WX07
N
L
N
L
+
-
SEC
LED
PUSH
PUSH
SYNC
slave
master
N
L
+
-
SEC
LED
PUSH
Max 10 PSUs (1 master + 9 slaves)

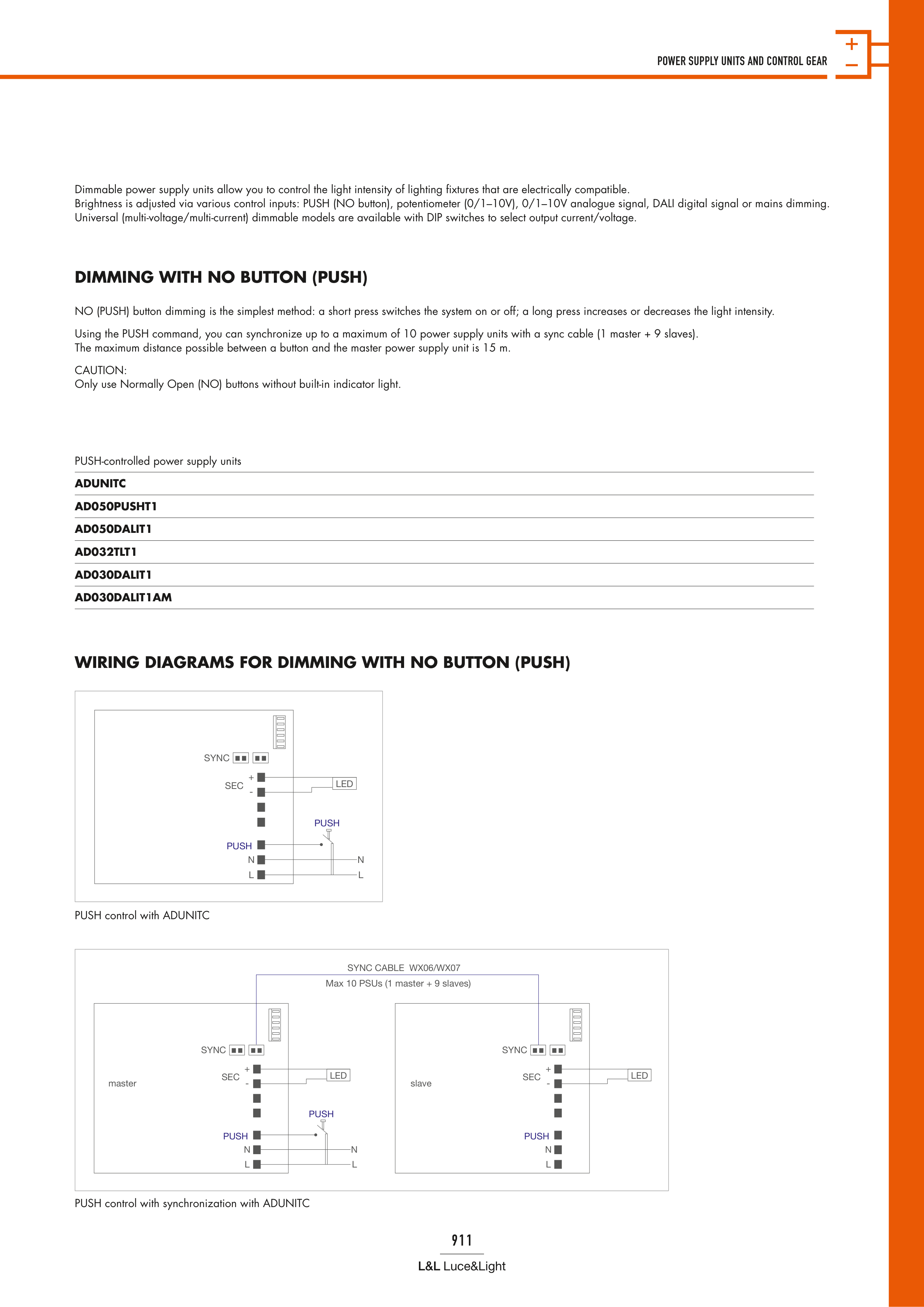

WIRING DIAGRAMS FOR DIMMING WITH NO BUTTON (PUSH)
PUSH control with synchronization with ADUNITC
PUSH control with ADUNITC
DIMMING WITH NO BUTTON (PUSH)
POWER SUPPLY UNITS AND CONTROL GEAR
NO (PUSH) button dimming is the simplest method: a short press switches the system on or off; a long press increases or decreases the light intensity.
Using the PUSH command, you can synchronize up to a maximum of 10 power supply units with a sync cable (1 master + 9 slaves).
The maximum distance possible between a button and the master power supply unit is 15 m.
CAUTION:
Only use Normally Open (NO) buttons without built-in indicator light.
Dimmable power supply units allow you to control the light intensity of lighting fixtures that are electrically compatible.
Brightness is adjusted via various control inputs: PUSH (NO button), potentiometer (0/1–10V), 0/1–10V analogue signal, DALI digital signal or mains dimming.
Universal (multi-voltage/multi-current) dimmable models are available with DIP switches to select output current/voltage.
PUSH-controlled power supply units
ADUNITC
AD050PUSHT1
AD050DALIT1
AD032TLT1
AD030DALIT1
AD030DALIT1AM
