L&L Luce&Light
910

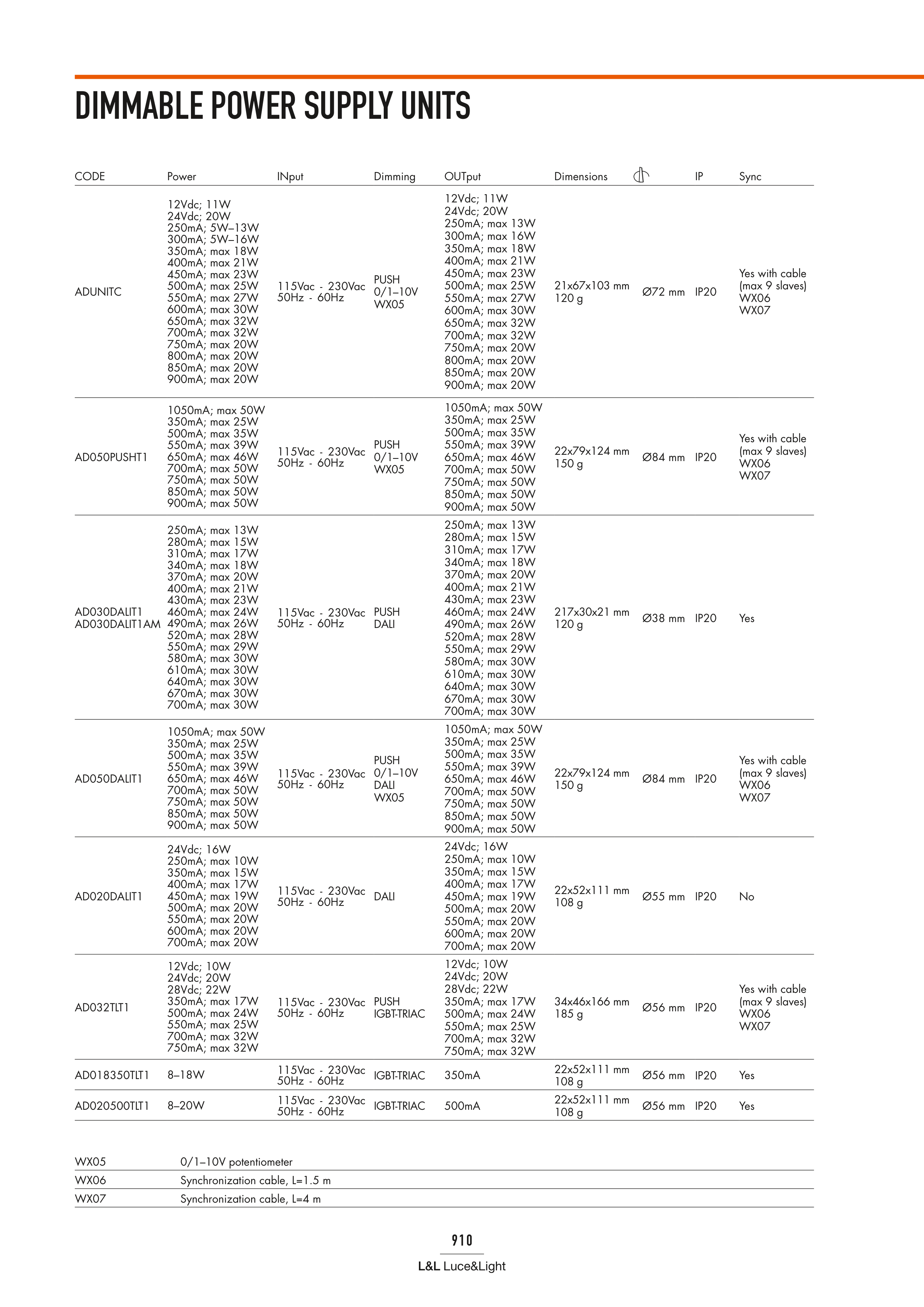

DIMMABLE POWER SUPPLY UNITS
WX05
0/1–10V potentiometer
WX06
Synchronization cable, L=1.5 m
WX07
Synchronization cable, L=4 m
CODE
Power
INput
Dimming
OUTput
Dimensions
IP
Sync
ADUNITC
12Vdc; 11W
24Vdc; 20W
250mA; 5W–13W
300mA; 5W–16W
350mA; max 18W
400mA; max 21W
450mA; max 23W
500mA; max 25W
550mA; max 27W
600mA; max 30W
650mA; max 32W
700mA; max 32W
750mA; max 20W
800mA; max 20W
850mA; max 20W
900mA; max 20W
115Vac - 230Vac
50Hz - 60Hz
PUSH
0/1–10V
WX05
12Vdc; 11W
24Vdc; 20W
250mA; max 13W
300mA; max 16W
350mA; max 18W
400mA; max 21W
450mA; max 23W
500mA; max 25W
550mA; max 27W
600mA; max 30W
650mA; max 32W
700mA; max 32W
750mA; max 20W
800mA; max 20W
850mA; max 20W
900mA; max 20W
21x67x103 mm
120 g
Ø72 mm
IP20
Yes with cable
(max 9 slaves)
WX06
WX07
AD050PUSHT1
1050mA; max 50W
350mA; max 25W
500mA; max 35W
550mA; max 39W
650mA; max 46W
700mA; max 50W
750mA; max 50W
850mA; max 50W
900mA; max 50W
115Vac - 230Vac
50Hz - 60Hz
PUSH
0/1–10V
WX05
1050mA; max 50W
350mA; max 25W
500mA; max 35W
550mA; max 39W
650mA; max 46W
700mA; max 50W
750mA; max 50W
850mA; max 50W
900mA; max 50W
22x79x124 mm
150 g
Ø84 mm
IP20
Yes with cable
(max 9 slaves)
WX06
WX07
AD030DALIT1
AD030DALIT1AM
250mA; max 13W
280mA; max 15W
310mA; max 17W
340mA; max 18W
370mA; max 20W
400mA; max 21W
430mA; max 23W
460mA; max 24W
490mA; max 26W
520mA; max 28W
550mA; max 29W
580mA; max 30W
610mA; max 30W
640mA; max 30W
670mA; max 30W
700mA; max 30W
115Vac - 230Vac
50Hz - 60Hz
PUSH
DALI
250mA; max 13W
280mA; max 15W
310mA; max 17W
340mA; max 18W
370mA; max 20W
400mA; max 21W
430mA; max 23W
460mA; max 24W
490mA; max 26W
520mA; max 28W
550mA; max 29W
580mA; max 30W
610mA; max 30W
640mA; max 30W
670mA; max 30W
700mA; max 30W
217x30x21 mm
120 g
Ø38 mm
IP20
Yes
AD050DALIT1
1050mA; max 50W
350mA; max 25W
500mA; max 35W
550mA; max 39W
650mA; max 46W
700mA; max 50W
750mA; max 50W
850mA; max 50W
900mA; max 50W
115Vac - 230Vac
50Hz - 60Hz
PUSH
0/1–10V
DALI
WX05
1050mA; max 50W
350mA; max 25W
500mA; max 35W
550mA; max 39W
650mA; max 46W
700mA; max 50W
750mA; max 50W
850mA; max 50W
900mA; max 50W
22x79x124 mm
150 g
Ø84 mm
IP20
Yes with cable
(max 9 slaves)
WX06
WX07
AD020DALIT1
24Vdc; 16W
250mA; max 10W
350mA; max 15W
400mA; max 17W
450mA; max 19W
500mA; max 20W
550mA; max 20W
600mA; max 20W
700mA; max 20W
115Vac - 230Vac
50Hz - 60Hz
DALI
24Vdc; 16W
250mA; max 10W
350mA; max 15W
400mA; max 17W
450mA; max 19W
500mA; max 20W
550mA; max 20W
600mA; max 20W
700mA; max 20W
22x52x111 mm
108 g
Ø55 mm
IP20
No
AD032TLT1
12Vdc; 10W
24Vdc; 20W
28Vdc; 22W
350mA; max 17W
500mA; max 24W
550mA; max 25W
700mA; max 32W
750mA; max 32W
115Vac - 230Vac
50Hz - 60Hz
PUSH
IGBT-TRIAC
12Vdc; 10W
24Vdc; 20W
28Vdc; 22W
350mA; max 17W
500mA; max 24W
550mA; max 25W
700mA; max 32W
750mA; max 32W
34x46x166 mm
185 g
Ø56 mm
IP20
Yes with cable
(max 9 slaves)
WX06
WX07
AD018350TLT1
8–18W
115Vac - 230Vac
50Hz - 60Hz
IGBT-TRIAC
350mA
22x52x111 mm
108 g
Ø56 mm
IP20
Yes
AD020500TLT1
8–20W
115Vac - 230Vac
50Hz - 60Hz
IGBT-TRIAC
500mA
22x52x111 mm
108 g
Ø56 mm
IP20
Yes
