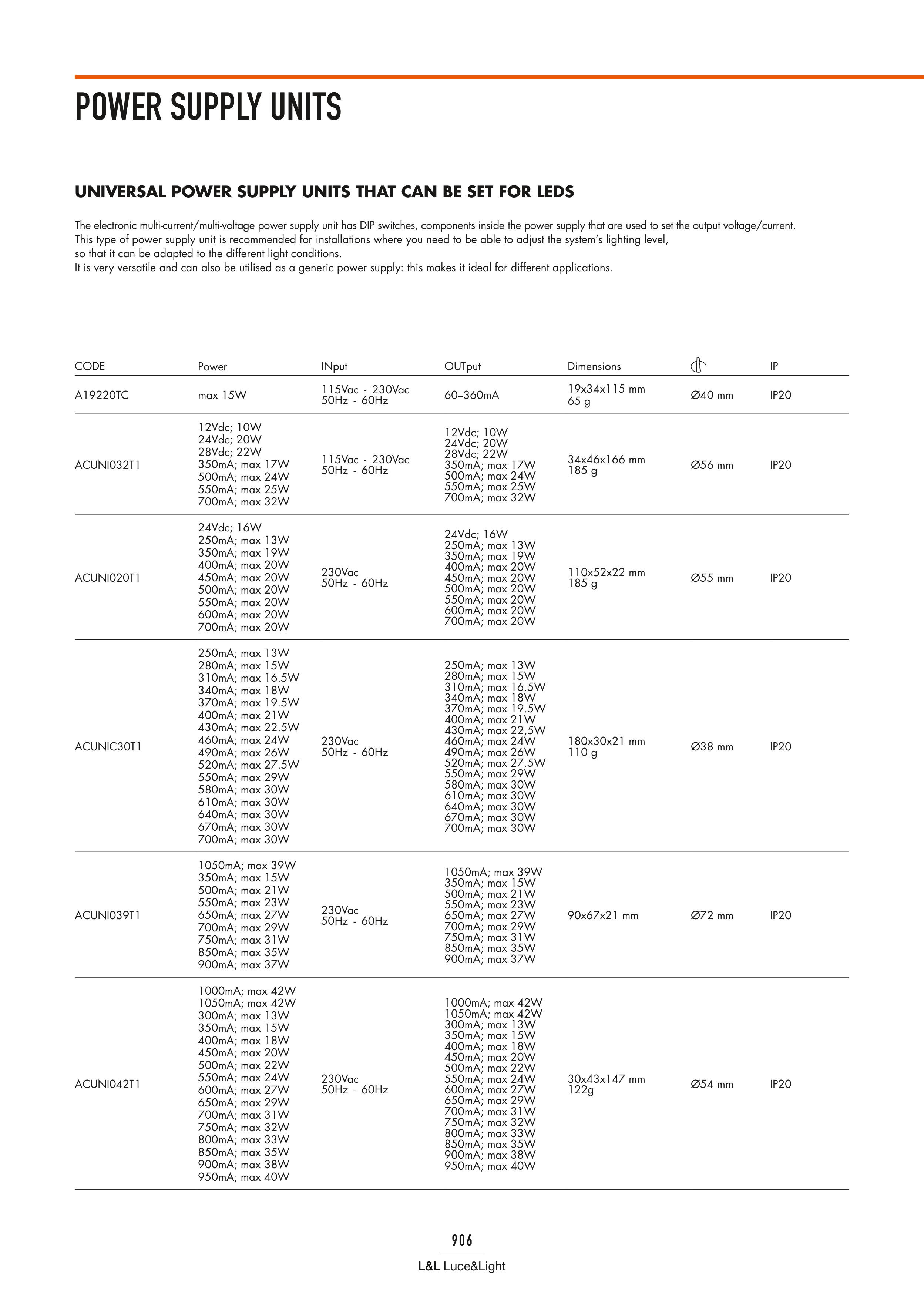

UNIVERSAL POWER SUPPLY UNITS THAT CAN BE SET FOR LEDS
The electronic multi-current/multi-voltage power supply unit has DIP switches, components inside the power supply that are used to set the output voltage/current.
This type of power supply unit is recommended for installations where you need to be able to adjust the system’s lighting level,
so that it can be adapted to the different light conditions.
It is very versatile and can also be utilised as a generic power supply: this makes it ideal for different applications.
CODE
Power
INput
OUTput
Dimensions
IP
A19220TC
max 15W
115Vac - 230Vac
50Hz - 60Hz
60–360mA
19x34x115 mm
65 g
Ø40 mm
IP20
ACUNI032T1
12Vdc; 10W
24Vdc; 20W
28Vdc; 22W
350mA; max 17W
500mA; max 24W
550mA; max 25W
700mA; max 32W
115Vac - 230Vac
50Hz - 60Hz
12Vdc; 10W
24Vdc; 20W
28Vdc; 22W
350mA; max 17W
500mA; max 24W
550mA; max 25W
700mA; max 32W
34x46x166 mm
185 g
Ø56 mm
IP20
ACUNI020T1
24Vdc; 16W
250mA; max 13W
350mA; max 19W
400mA; max 20W
450mA; max 20W
500mA; max 20W
550mA; max 20W
600mA; max 20W
700mA; max 20W
230Vac
50Hz - 60Hz
24Vdc; 16W
250mA; max 13W
350mA; max 19W
400mA; max 20W
450mA; max 20W
500mA; max 20W
550mA; max 20W
600mA; max 20W
700mA; max 20W
110x52x22 mm
185 g
Ø55 mm
IP20
ACUNIC30T1
250mA; max 13W
280mA; max 15W
310mA; max 16.5W
340mA; max 18W
370mA; max 19.5W
400mA; max 21W
430mA; max 22.5W
460mA; max 24W
490mA; max 26W
520mA; max 27.5W
550mA; max 29W
580mA; max 30W
610mA; max 30W
640mA; max 30W
670mA; max 30W
700mA; max 30W
230Vac
50Hz - 60Hz
250mA; max 13W
280mA; max 15W
310mA; max 16.5W
340mA; max 18W
370mA; max 19.5W
400mA; max 21W
430mA; max 22,5W
460mA; max 24W
490mA; max 26W
520mA; max 27.5W
550mA; max 29W
580mA; max 30W
610mA; max 30W
640mA; max 30W
670mA; max 30W
700mA; max 30W
180x30x21 mm
110 g
Ø38 mm
IP20
ACUNI039T1
1050mA; max 39W
350mA; max 15W
500mA; max 21W
550mA; max 23W
650mA; max 27W
700mA; max 29W
750mA; max 31W
850mA; max 35W
900mA; max 37W
230Vac
50Hz - 60Hz
1050mA; max 39W
350mA; max 15W
500mA; max 21W
550mA; max 23W
650mA; max 27W
700mA; max 29W
750mA; max 31W
850mA; max 35W
900mA; max 37W
90x67x21 mm
Ø72 mm
IP20
ACUNI042T1
1000mA; max 42W
1050mA; max 42W
300mA; max 13W
350mA; max 15W
400mA; max 18W
450mA; max 20W
500mA; max 22W
550mA; max 24W
600mA; max 27W
650mA; max 29W
700mA; max 31W
750mA; max 32W
800mA; max 33W
850mA; max 35W
900mA; max 38W
950mA; max 40W
230Vac
50Hz - 60Hz
1000mA; max 42W
1050mA; max 42W
300mA; max 13W
350mA; max 15W
400mA; max 18W
450mA; max 20W
500mA; max 22W
550mA; max 24W
600mA; max 27W
650mA; max 29W
700mA; max 31W
750mA; max 32W
800mA; max 33W
850mA; max 35W
900mA; max 38W
950mA; max 40W
30x43x147 mm
122g
Ø54 mm
IP20
