L&L Luce&Light
86
62
3
Ø109
Ø96
IK08
IP67

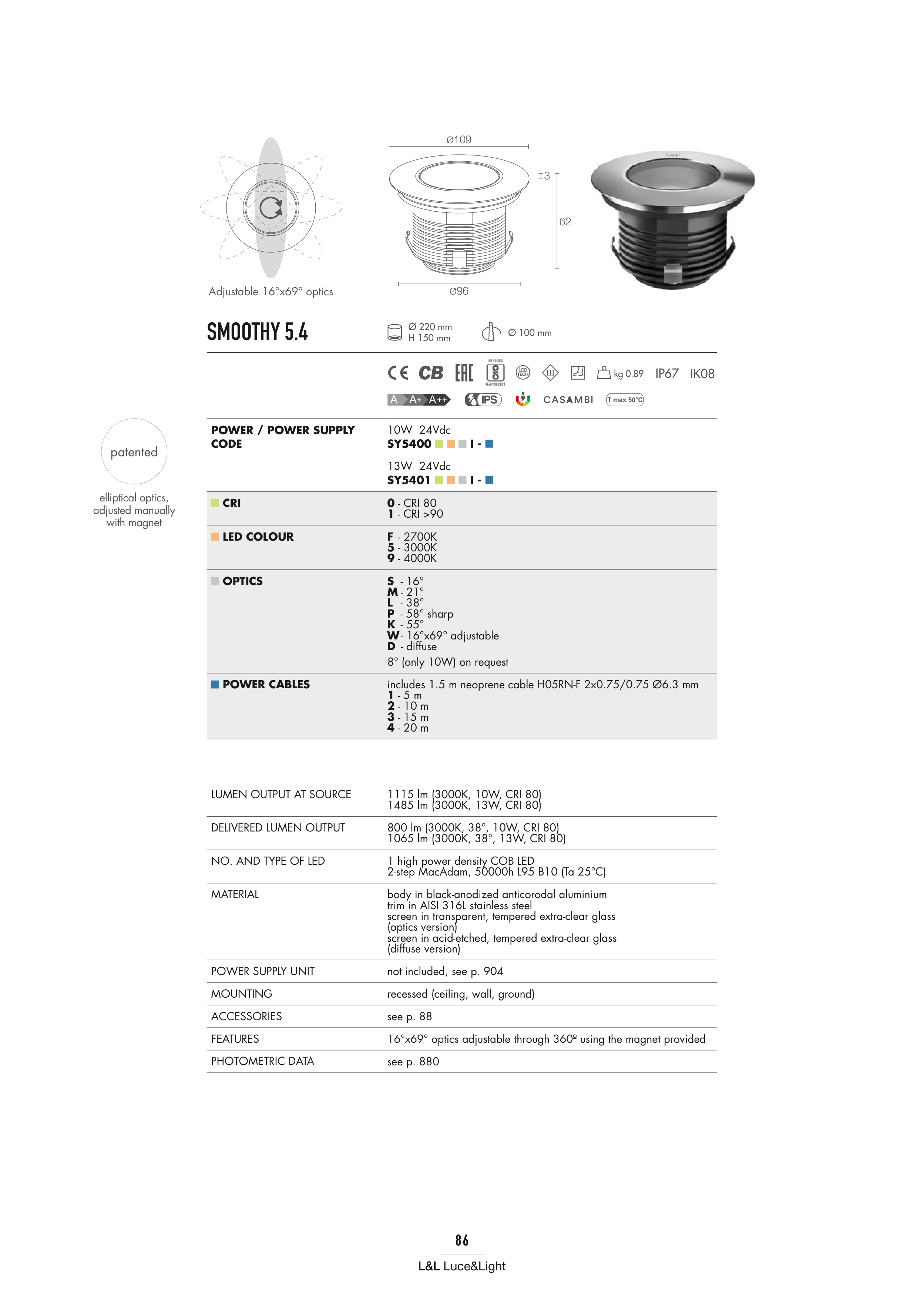

SMOOTHY 5.4
Ø 100 mm
Ø 220 mm
H 150 mm
POWER / POWER SUPPLY
CODE
10W 24Vdc
SY5400 I -
13W 24Vdc
SY5401 I -
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 16°
M - 21°
L - 38°
P - 58° sharp
K - 55°
W - 16°x69° adjustable
D - diffuse
8° (only 10W) on request
POWER CABLES
includes 1.5 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
1115 lm (3000K, 10W, CRI 80)
1485 lm (3000K, 13W, CRI 80)
DELIVERED LUMEN OUTPUT
800 lm (3000K, 38°, 10W, CRI 80)
1065 lm (3000K, 38°, 13W, CRI 80)
NO. AND TYPE OF LED
1 high power density COB LED
2-step MacAdam, 50000h L95 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium
trim in AISI 316L stainless steel
screen in transparent, tempered extra-clear glass
(optics version)
screen in acid-etched, tempered extra-clear glass
(diffuse version)
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 88
FEATURES
16°x69° optics adjustable through 360º using the magnet provided
PHOTOMETRIC DATA
see p. 880
Adjustable 16°x69° optics
kg 0.89
elliptical optics,
adjusted manually
with magnet
patented
