L&L Luce&Light
85
59
75
2
Ø84
Ø58
Ø72
±15°

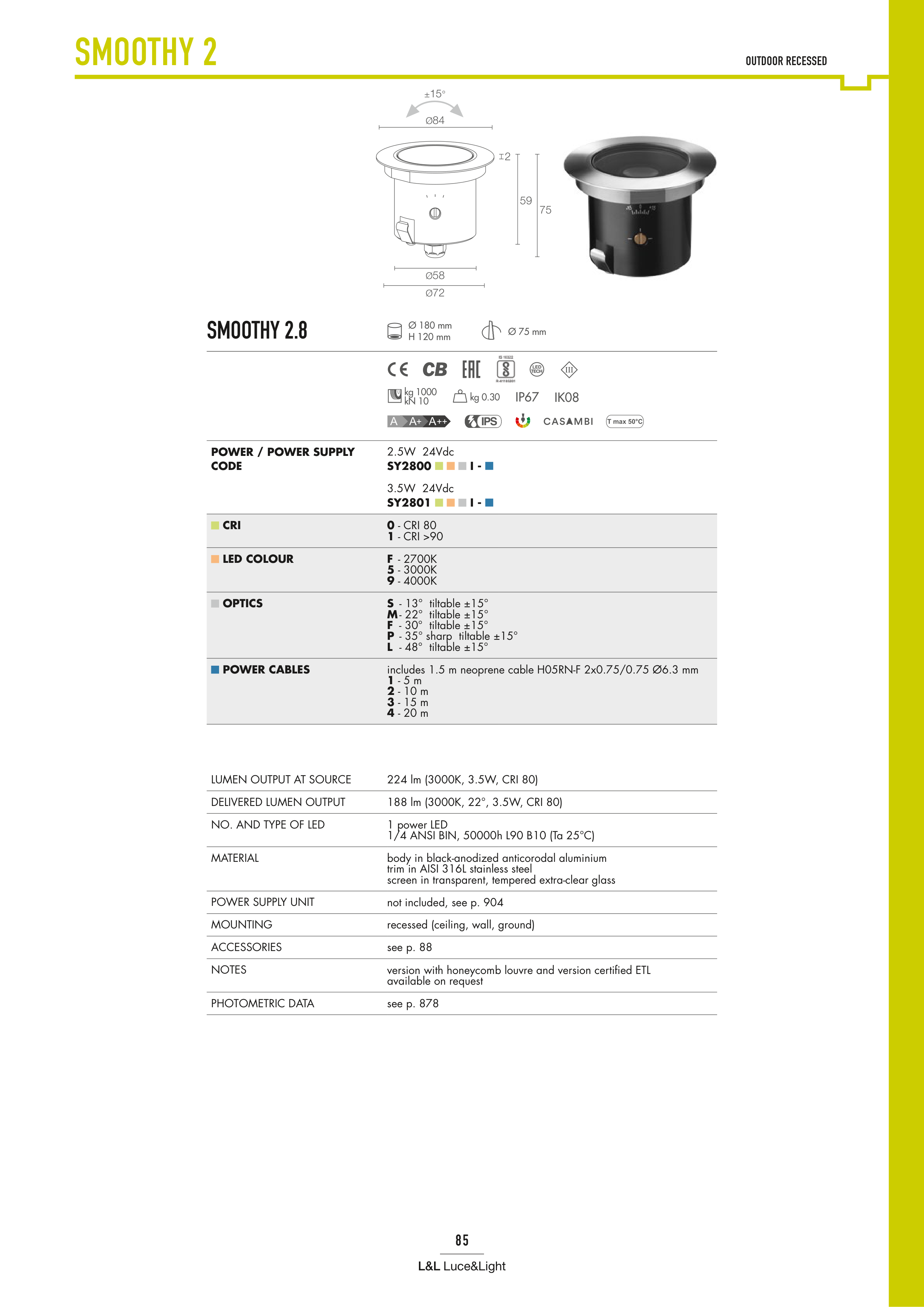

SMOOTHY 2
IK08
IP67
SMOOTHY 2.8
Ø 75 mm
Ø 180 mm
H 120 mm
kg 1000
kN 10
kg 0.30
POWER / POWER SUPPLY
CODE
2.5W 24Vdc
SY2800 I -
3.5W 24Vdc
SY2801 I -
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 13° tiltable ±15°
M - 22° tiltable ±15°
F - 30° tiltable ±15°
P - 35° sharp tiltable ±15°
L - 48° tiltable ±15°
POWER CABLES
includes 1.5 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
224 lm (3000K, 3.5W, CRI 80)
DELIVERED LUMEN OUTPUT
188 lm (3000K, 22°, 3.5W, CRI 80)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium
trim in AISI 316L stainless steel
screen in transparent, tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 88
NOTES
version with honeycomb louvre and version certified ETL
available on request
PHOTOMETRIC DATA
see p. 878
OUTDOOR RECESSED
