IP66
DALI-2
IK08

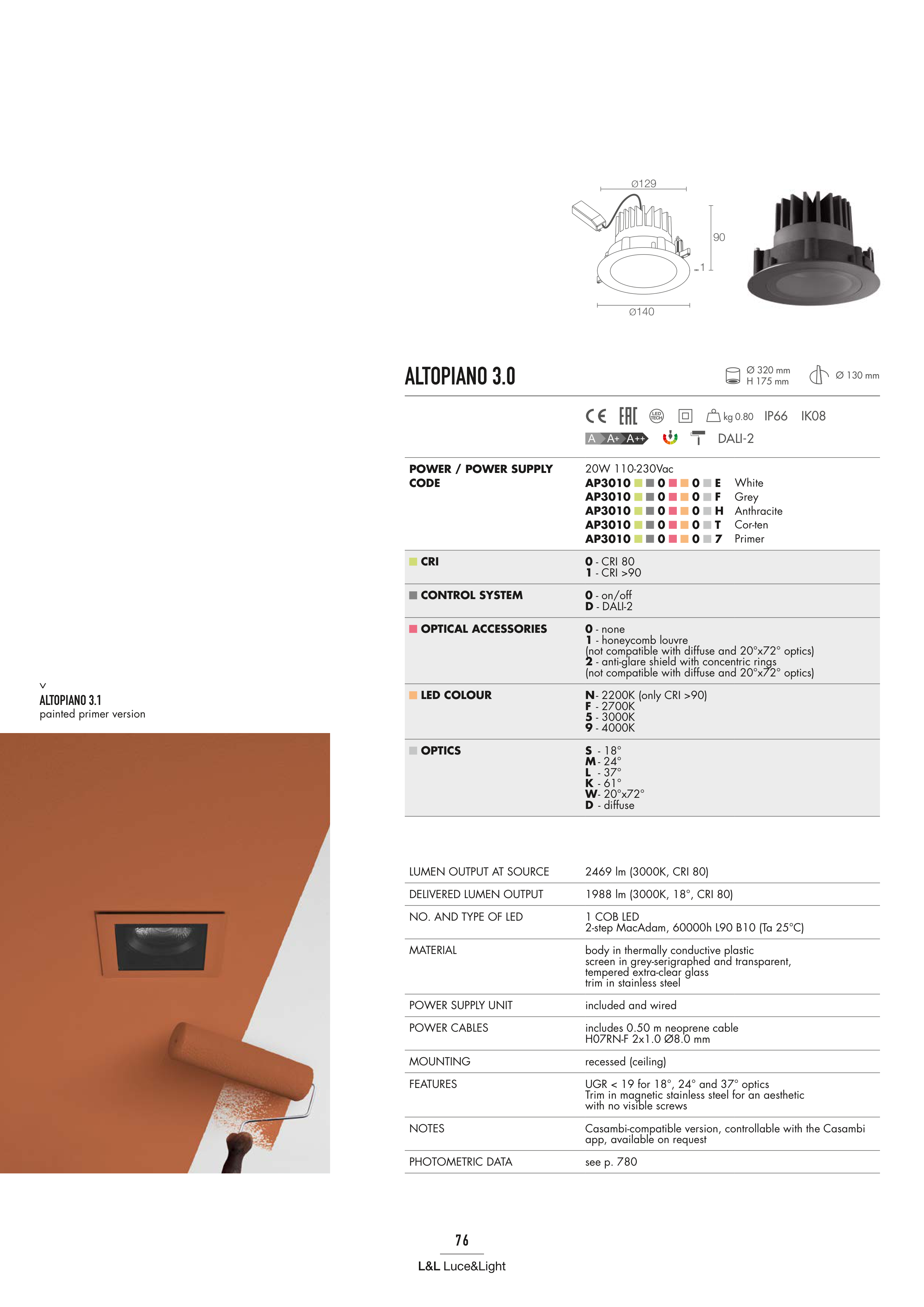

ALTOPIANO 3.0
Ø 130 mm
Ø 320 mm
H 175 mm
Ø140
Ø129
1
90
POWER / POWER SUPPLY
CODE
20W 110-230Vac
AP3010 0 0 E
AP3010 0 0 F
AP3010 0 0 H
AP3010 0 0 T
AP3010 0 0 7
White
Grey
Anthracite
Cor-ten
Primer
CRI
0 - CRI 80
1 - CRI >90
CONTROL SYSTEM
0 - on/off
D - DALI-2
OPTICAL ACCESSORIES
0 - none
1 - honeycomb louvre
(not compatible with diffuse and 20°x72° optics)
2 - anti-glare shield with concentric rings
(not compatible with diffuse and 20°x72° optics)
LED COLOUR
N - 2200K (only CRI >90)
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 18°
M - 24°
L - 37°
K - 61°
W - 20°x72°
D - diffuse
LUMEN OUTPUT AT SOURCE
2469 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
1988 lm (3000K, 18°, CRI 80)
NO. AND TYPE OF LED
1 COB LED
2-step MacAdam, 60000h L90 B10 (Ta 25°C)
MATERIAL
body in thermally conductive plastic
screen in grey-serigraphed and transparent,
tempered extra-clear glass
trim in stainless steel
POWER SUPPLY UNIT
included and wired
POWER CABLES
includes 0.50 m neoprene cable
H07RN-F 2x1.0 Ø8.0 mm
MOUNTING
recessed (ceiling)
FEATURES
UGR < 19 for 18°, 24° and 37° optics
Trim in magnetic stainless steel for an aesthetic
with no visible screws
NOTES
Casambi-compatible version, controllable with the Casambi
app, available on request
PHOTOMETRIC DATA
see p. 780
kg 0.80
ALTOPIANO 3.1
painted primer version
