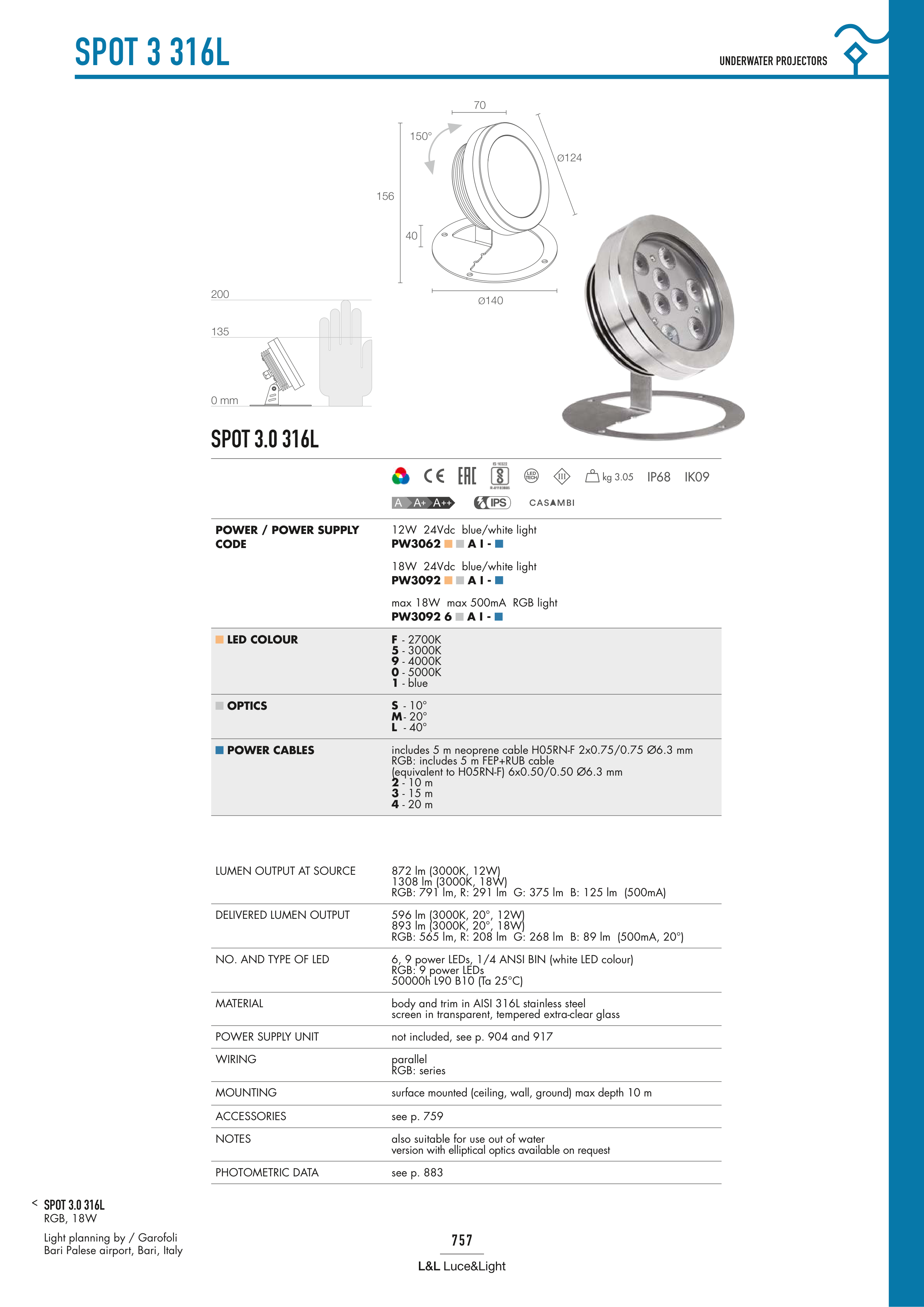

L&L Luce&Light
757
Ø124
156
40
70
150°
Ø140
0 mm
200
135
SPOT 3 316L
IP68
IK09
SPOT 3.0 316L
UNDERWATER PROJECTORS
POWER / POWER SUPPLY
CODE
12W 24Vdc blue/white light
PW3062 A I -
18W 24Vdc blue/white light
PW3092 A I -
max 18W max 500mA RGB light
PW3092 6 A I -
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
OPTICS
S - 10°
M - 20°
L - 40°
POWER CABLES
includes 5 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
RGB: includes 5 m FEP+RUB cable
(equivalent to H05RN-F) 6x0.50/0.50 Ø6.3 mm
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
872 lm (3000K, 12W)
1308 lm (3000K, 18W)
RGB: 791 lm, R: 291 lm G: 375 lm B: 125 lm (500mA)
DELIVERED LUMEN OUTPUT
596 lm (3000K, 20°, 12W)
893 lm (3000K, 20°, 18W)
RGB: 565 lm, R: 208 lm G: 268 lm B: 89 lm (500mA, 20°)
NO. AND TYPE OF LED
6, 9 power LEDs, 1/4 ANSI BIN (white LED colour)
RGB: 9 power LEDs
50000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in AISI 316L stainless steel
screen in transparent, tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904 and 917
WIRING
parallel
RGB: series
MOUNTING
surface mounted (ceiling, wall, ground) max depth 10 m
ACCESSORIES
see p. 759
NOTES
also suitable for use out of water
version with elliptical optics available on request
PHOTOMETRIC DATA
see p. 883
SPOT 3.0 316L
RGB, 18W
Light planning by / Garofoli
Bari Palese airport, Bari, Italy
kg 3.05
