L&L Luce&Light
754
0 mm
200
68
IK10
IK10
IP68
IP68

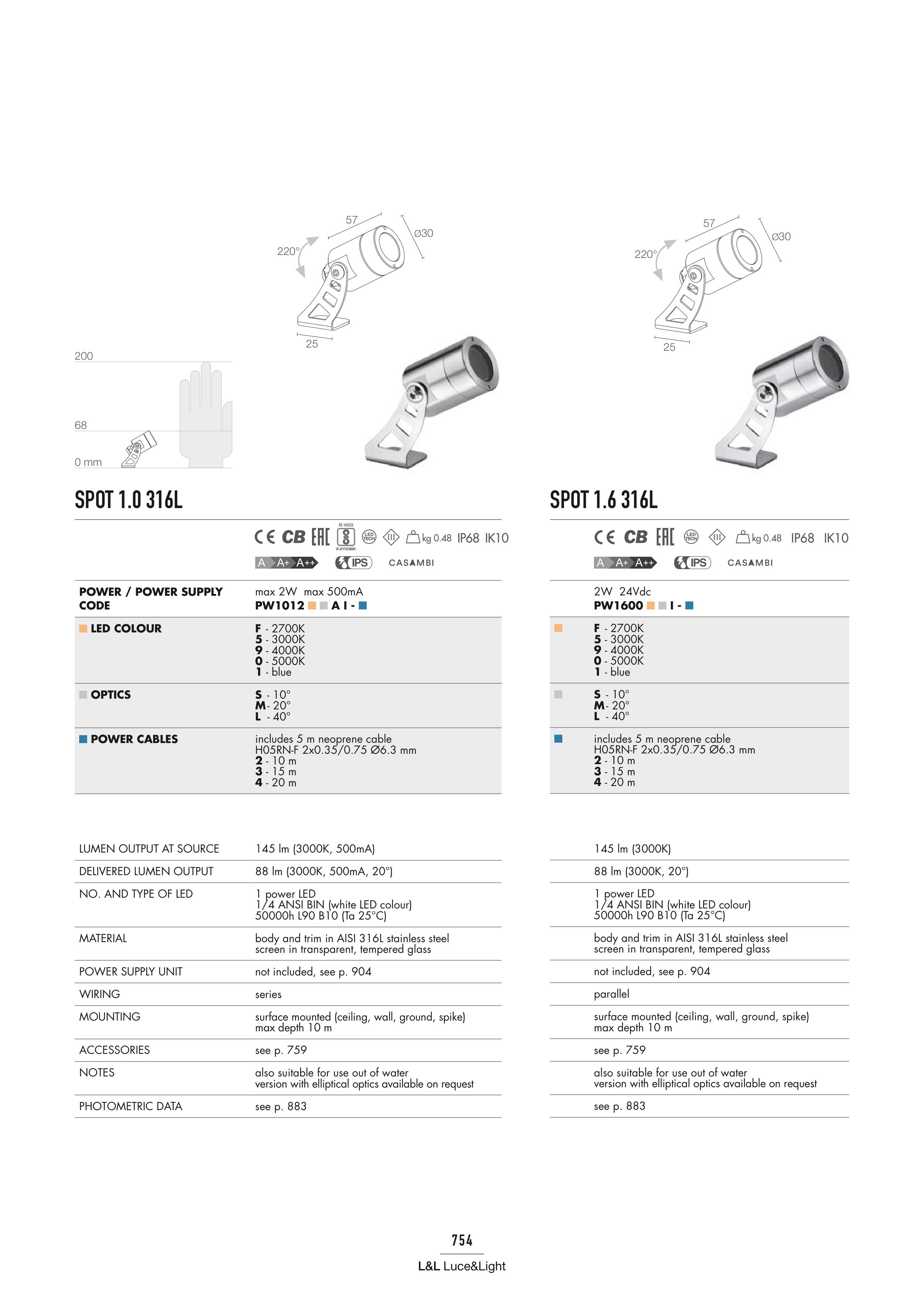

SPOT 1.0 316L
SPOT 1.6 316L
Ø30
25
57
220°
Ø30
25
57
220°
POWER / POWER SUPPLY
CODE
max 2W max 500mA
PW1012 A I -
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
OPTICS
S - 10°
M - 20°
L - 40°
POWER CABLES
includes 5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
145 lm (3000K, 500mA)
DELIVERED LUMEN OUTPUT
88 lm (3000K, 500mA, 20°)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in AISI 316L stainless steel
screen in transparent, tempered glass
POWER SUPPLY UNIT
not included, see p. 904
WIRING
series
MOUNTING
surface mounted (ceiling, wall, ground, spike)
max depth 10 m
ACCESSORIES
see p. 759
NOTES
also suitable for use out of water
version with elliptical optics available on request
PHOTOMETRIC DATA
see p. 883
2W 24Vdc
PW1600 I -
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
S - 10°
M - 20°
L - 40°
includes 5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
2 - 10 m
3 - 15 m
4 - 20 m
145 lm (3000K)
88 lm (3000K, 20°)
1 power LED
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
body and trim in AISI 316L stainless steel
screen in transparent, tempered glass
not included, see p. 904
parallel
surface mounted (ceiling, wall, ground, spike)
max depth 10 m
see p. 759
also suitable for use out of water
version with elliptical optics available on request
see p. 883
kg 0.48
kg 0.48
