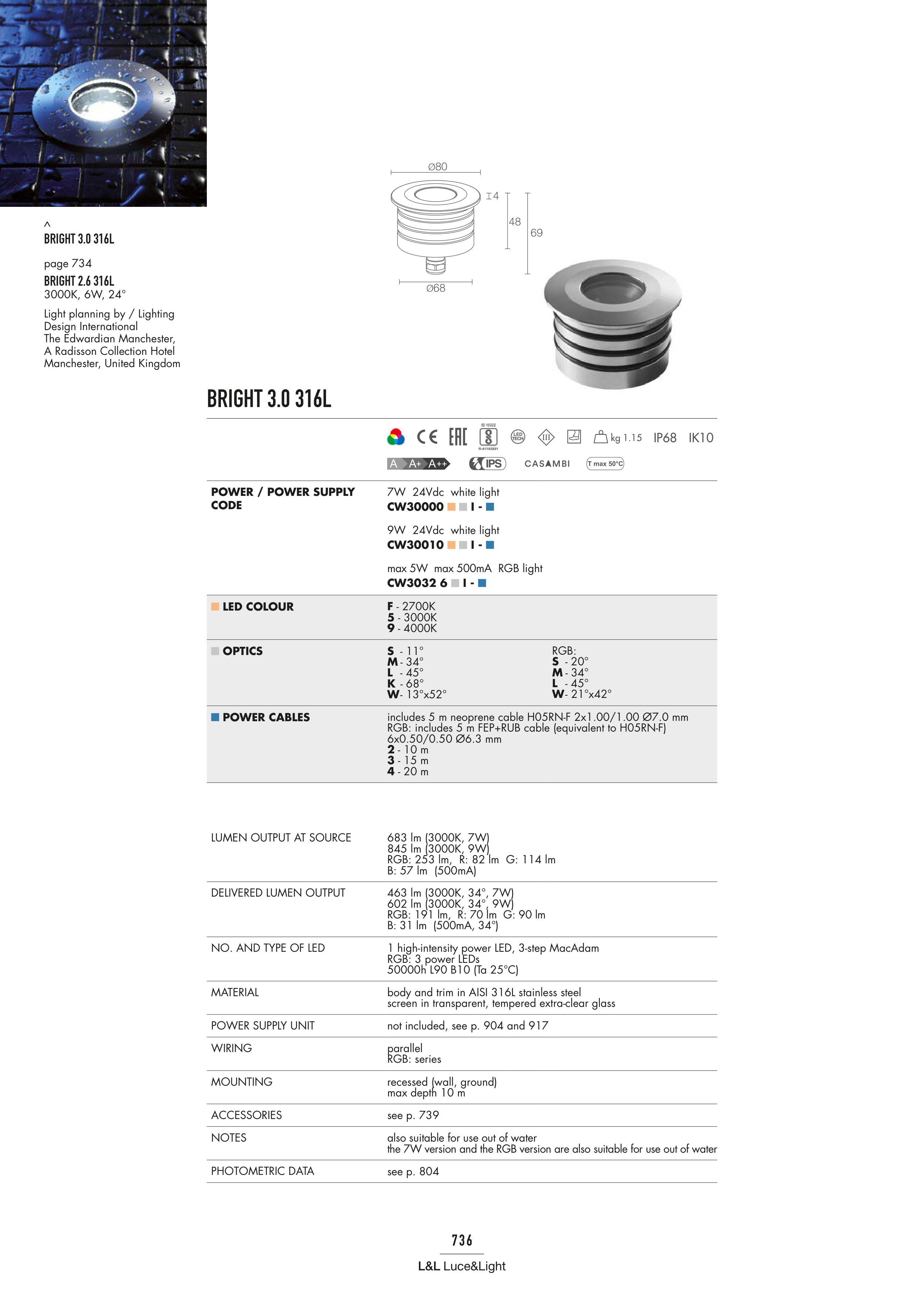

BRIGHT 3.0 316L
69
48
4
Ø80
Ø68
IP68
IK10
BRIGHT 3.0 316L
POWER / POWER SUPPLY
CODE
7W 24Vdc white light
CW30000 I -
9W 24Vdc white light
CW30010 I -
max 5W max 500mA RGB light
CW3032 6 I -
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 11°
M - 34°
L - 45°
K - 68°
W - 13°x52°
RGB:
S - 20°
M - 34°
L - 45°
W - 21°x42°
POWER CABLES
includes 5 m neoprene cable H05RN-F 2x1.00/1.00 Ø7.0 mm
RGB: includes 5 m FEP+RUB cable (equivalent to H05RN-F)
6x0.50/0.50 Ø6.3 mm
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
683 lm (3000K, 7W)
845 lm (3000K, 9W)
RGB: 253 lm, R: 82 lm G: 114 lm
B: 57 lm (500mA)
DELIVERED LUMEN OUTPUT
463 lm (3000K, 34°, 7W)
602 lm (3000K, 34°, 9W)
RGB: 191 lm, R: 70 lm G: 90 lm
B: 31 lm (500mA, 34°)
NO. AND TYPE OF LED
1 high-intensity power LED, 3-step MacAdam
RGB: 3 power LEDs
50000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in AISI 316L stainless steel
screen in transparent, tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904 and 917
WIRING
parallel
RGB: series
MOUNTING
recessed (wall, ground)
max depth 10 m
ACCESSORIES
see p. 739
NOTES
also suitable for use out of water
the 7W version and the RGB version are also suitable for use out of water
PHOTOMETRIC DATA
see p. 804
kg 1.15
page 734
BRIGHT 2.6 316L
3000K, 6W, 24°
Light planning by / Lighting
Design International
The Edwardian Manchester,
A Radisson Collection Hotel
Manchester, United Kingdom
