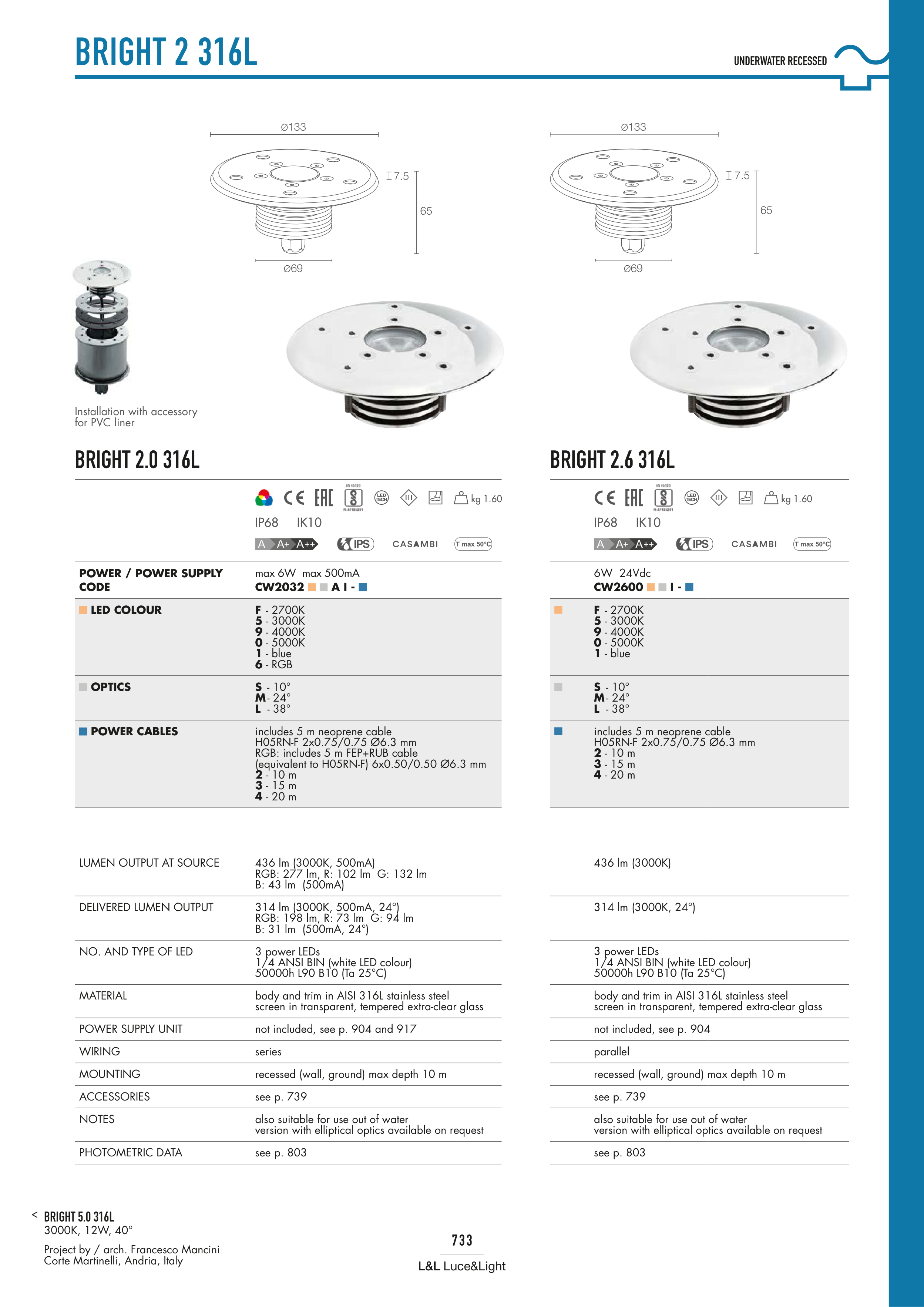

BRIGHT 2 316L
BRIGHT 2.0 316L
BRIGHT 2.6 316L
IP68
IP68
IK10
IK10
kg 1.60
BRIGHT 5.0 316L
3000K, 12W, 40°
Project by / arch. Francesco Mancini
Corte Martinelli, Andria, Italy
POWER / POWER SUPPLY
CODE
max 6W max 500mA
CW2032 A I -
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
6 - RGB
OPTICS
S - 10°
M - 24°
L - 38°
POWER CABLES
includes 5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
RGB: includes 5 m FEP+RUB cable
(equivalent to H05RN-F) 6x0.50/0.50 Ø6.3 mm
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
436 lm (3000K, 500mA)
RGB: 277 lm, R: 102 lm G: 132 lm
B: 43 lm (500mA)
DELIVERED LUMEN OUTPUT
314 lm (3000K, 500mA, 24°)
RGB: 198 lm, R: 73 lm G: 94 lm
B: 31 lm (500mA, 24°)
NO. AND TYPE OF LED
3 power LEDs
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in AISI 316L stainless steel
screen in transparent, tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904 and 917
WIRING
series
MOUNTING
recessed (wall, ground) max depth 10 m
ACCESSORIES
see p. 739
NOTES
also suitable for use out of water
version with elliptical optics available on request
PHOTOMETRIC DATA
see p. 803
6W 24Vdc
CW2600 I -
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
S - 10°
M - 24°
L - 38°
includes 5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
2 - 10 m
3 - 15 m
4 - 20 m
436 lm (3000K)
314 lm (3000K, 24°)
3 power LEDs
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
body and trim in AISI 316L stainless steel
screen in transparent, tempered extra-clear glass
not included, see p. 904
parallel
recessed (wall, ground) max depth 10 m
see p. 739
also suitable for use out of water
version with elliptical optics available on request
see p. 803
kg 1.60
Installation with accessory
for PVC liner
UNDERWATER RECESSED
65
7.5
Ø133
Ø69
65
7.5
Ø133
Ø69
