L&L Luce&Light
731

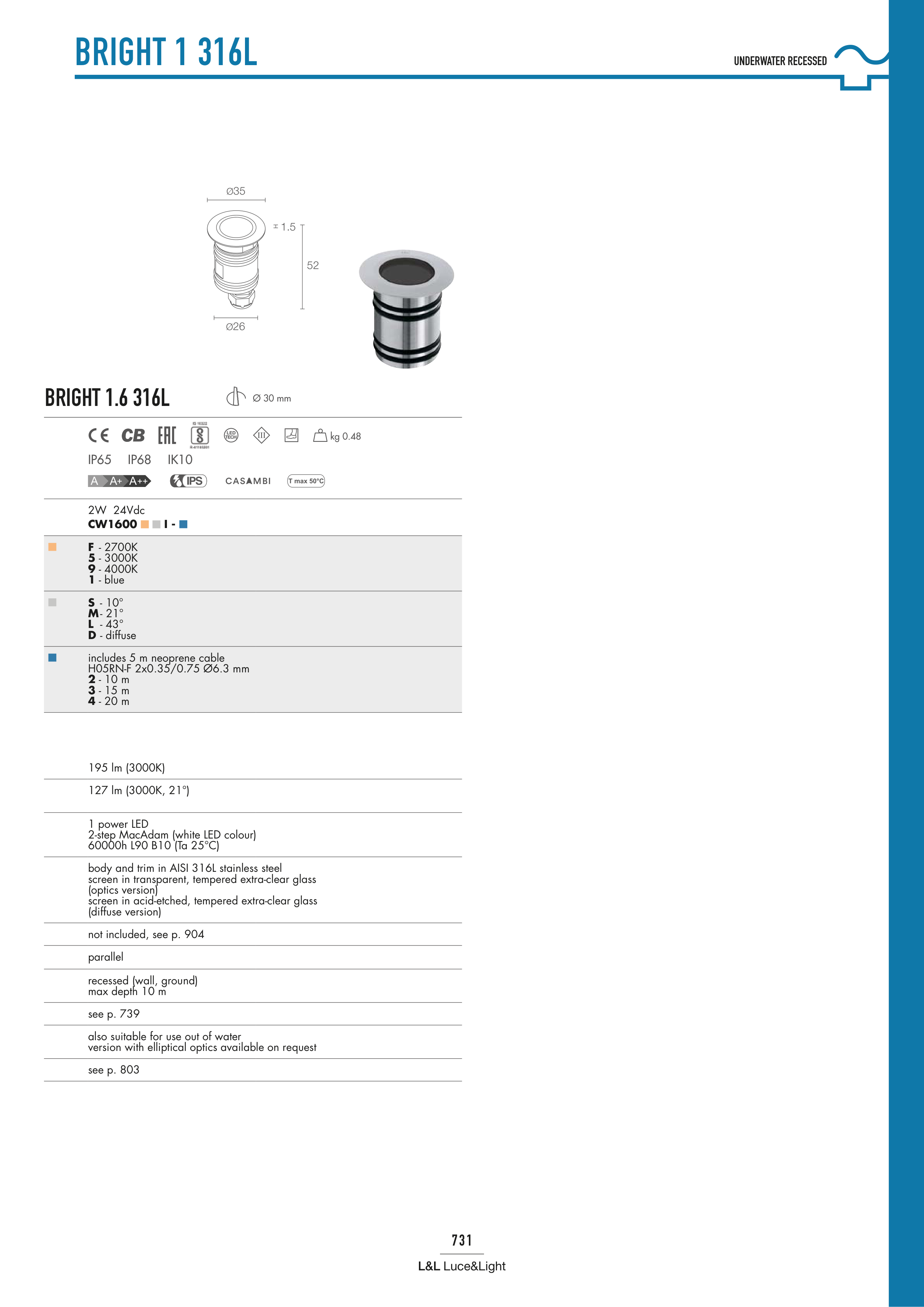

BRIGHT 1 316L
IP68
IK10
Ø 30 mm
BRIGHT 1.6 316L
IP65
2W 24Vdc
CW1600 I -
F - 2700K
5 - 3000K
9 - 4000K
1 - blue
S - 10°
M - 21°
L - 43°
D - diffuse
includes 5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
2 - 10 m
3 - 15 m
4 - 20 m
195 lm (3000K)
127 lm (3000K, 21°)
1 power LED
2-step MacAdam (white LED colour)
60000h L90 B10 (Ta 25°C)
body and trim in AISI 316L stainless steel
screen in transparent, tempered extra-clear glass
(optics version)
screen in acid-etched, tempered extra-clear glass
(diffuse version)
not included, see p. 904
parallel
recessed (wall, ground)
max depth 10 m
see p. 739
also suitable for use out of water
version with elliptical optics available on request
see p. 803
kg 0.48
UNDERWATER RECESSED
52
1.5
Ø35
Ø26
