L&L Luce&Light
730
IP68
IK10
Ø 30 mm

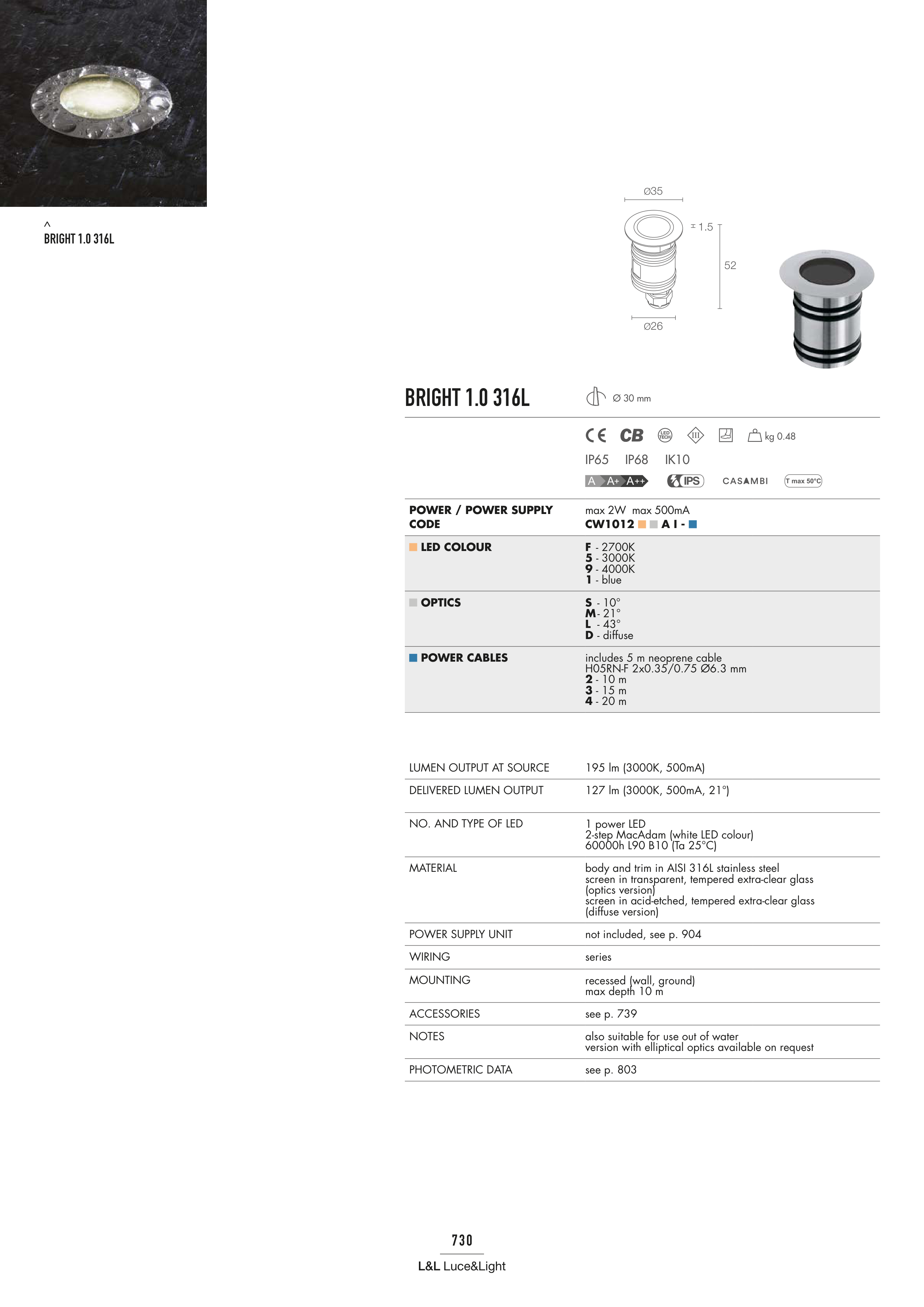

BRIGHT 1.0 316L
IP65
BRIGHT 1.0 316L
POWER / POWER SUPPLY
CODE
max 2W max 500mA
CW1012 A I -
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
1 - blue
OPTICS
S - 10°
M - 21°
L - 43°
D - diffuse
POWER CABLES
includes 5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
195 lm (3000K, 500mA)
DELIVERED LUMEN OUTPUT
127 lm (3000K, 500mA, 21°)
NO. AND TYPE OF LED
1 power LED
2-step MacAdam (white LED colour)
60000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in AISI 316L stainless steel
screen in transparent, tempered extra-clear glass
(optics version)
screen in acid-etched, tempered extra-clear glass
(diffuse version)
POWER SUPPLY UNIT
not included, see p. 904
WIRING
series
MOUNTING
recessed (wall, ground)
max depth 10 m
ACCESSORIES
see p. 739
NOTES
also suitable for use out of water
version with elliptical optics available on request
PHOTOMETRIC DATA
see p. 803
kg 0.48
52
1.5
Ø35
Ø26
