10
Ø35
Ø26
L&L Luce&Light
711
SIMPLY
IP44
Ø 28 mm
Ø 40 mm
H 10 mm

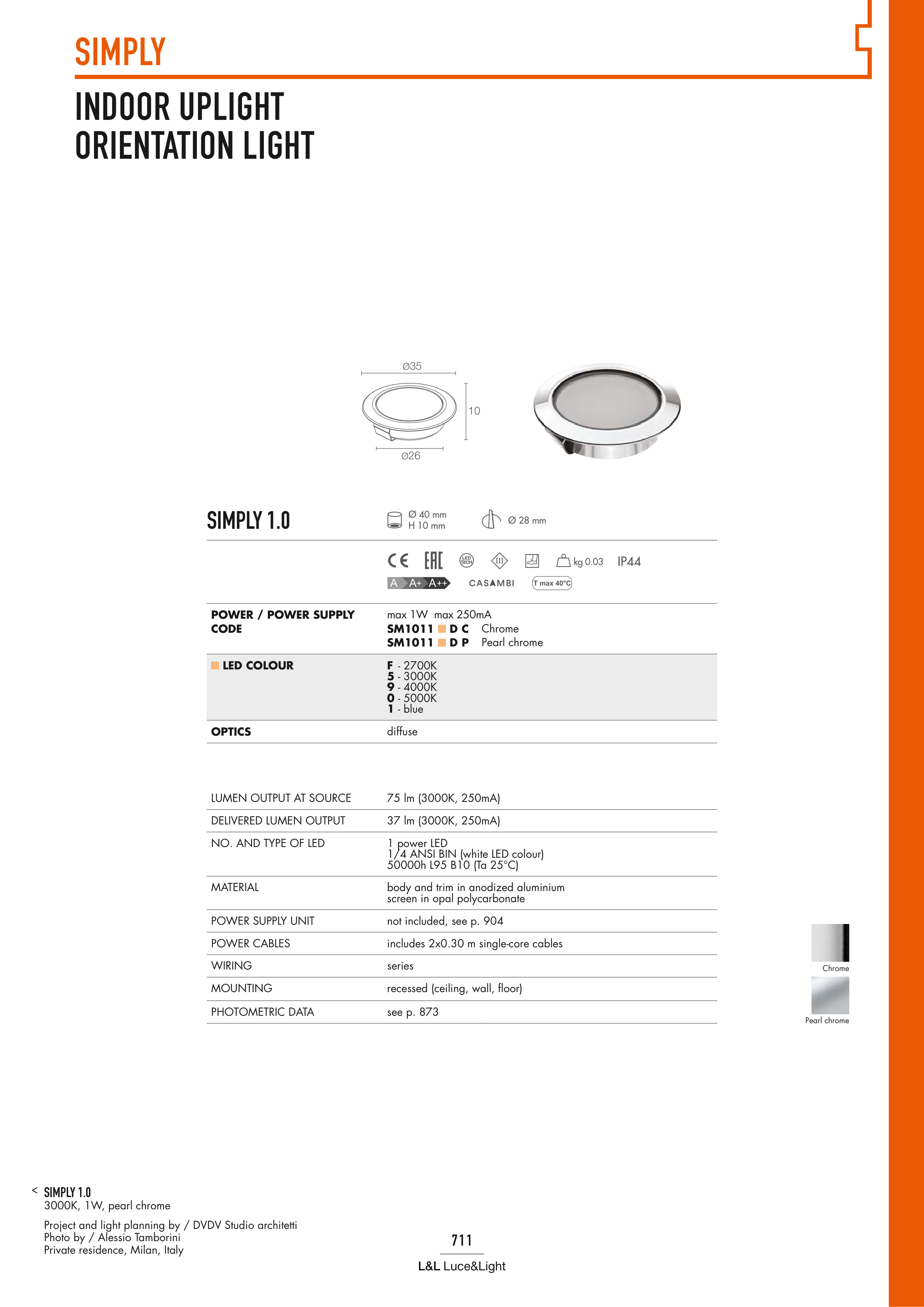

SIMPLY 1.0
POWER / POWER SUPPLY
CODE
max 1W max 250mA
SM1011 D C
SM1011 D P
Chrome
Pearl chrome
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
75 lm (3000K, 250mA)
DELIVERED LUMEN OUTPUT
37 lm (3000K, 250mA)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN (white LED colour)
50000h L95 B10 (Ta 25°C)
MATERIAL
body and trim in anodized aluminium
screen in opal polycarbonate
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 2x0.30 m single-core cables
WIRING
series
MOUNTING
recessed (ceiling, wall, floor)
PHOTOMETRIC DATA
see p. 873
SIMPLY 1.0
3000K, 1W, pearl chrome
Project and light planning by / DVDV Studio architetti
Photo by / Alessio Tamborini
Private residence, Milan, Italy
INDOOR UPLIGHT
ORIENTATION LIGHT
kg 0.03
Chrome
Pearl chrome
