L&L Luce&Light
L&L Luce&Light
69
68

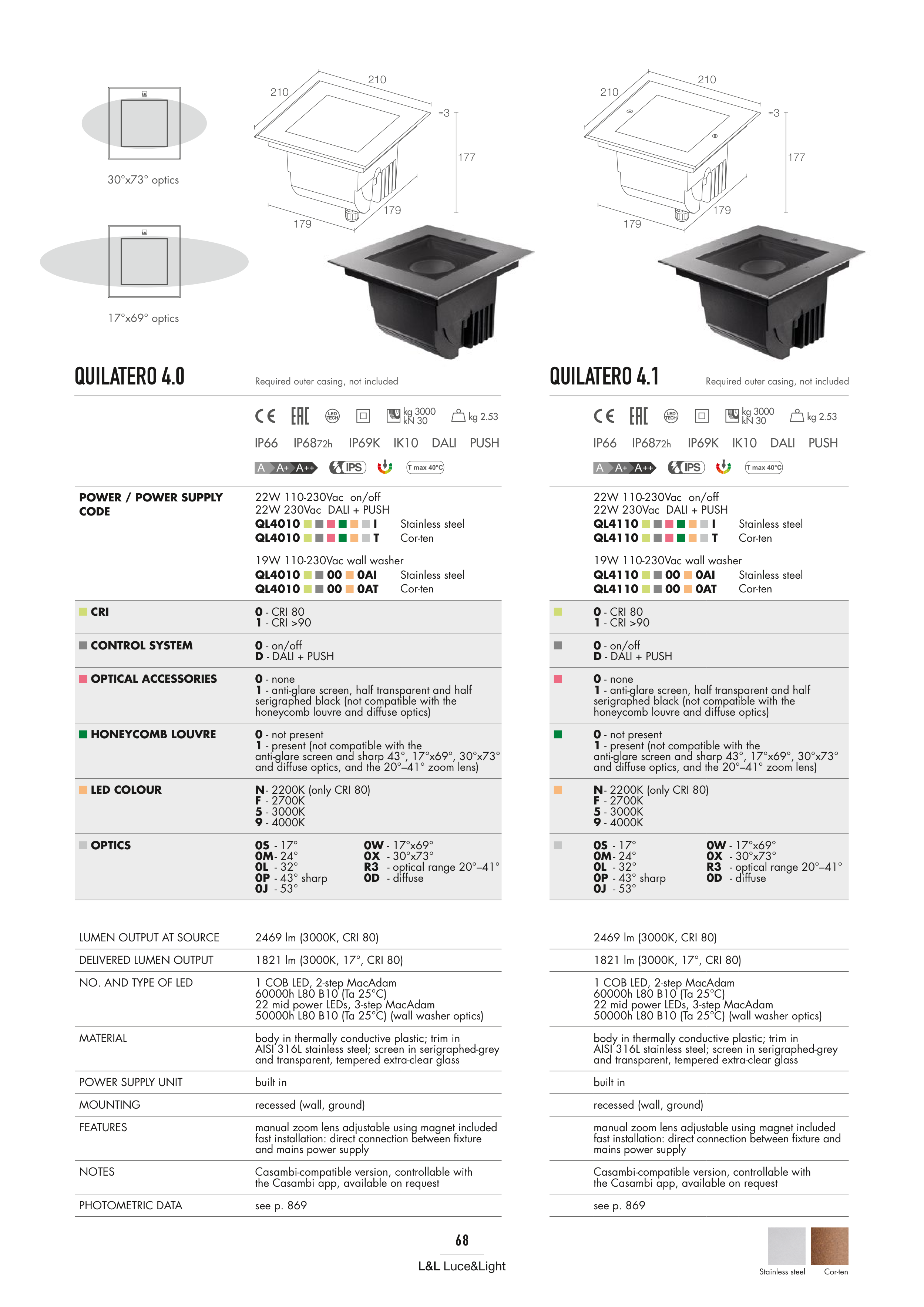

QUILATERO 4.0
QUILATERO 4.1
IP66
IP66
IP69K
IP69K
DALI
DALI
IK10
IK10
PUSH
PUSH
kg 3000
kN 30
kg 3000
kN 30
177
3
179
179
210
210
177
179
179
3
210
210
IP6872h
IP6872h
POWER / POWER SUPPLY
CODE
22W 110-230Vac on/off
22W 230Vac DALI + PUSH
QL4010 I
QL4010 T
Stainless steel
Cor-ten
19W 110-230Vac wall washer
QL4010 00 0AI
QL4010 00 0AT
Stainless steel
Cor-ten
CRI
0 - CRI 80
1 - CRI >90
CONTROL SYSTEM
0 - on/off
D - DALI + PUSH
OPTICAL ACCESSORIES
0 - none
1 - anti-glare screen, half transparent and half
serigraphed black (not compatible with the
honeycomb louvre and diffuse optics)
HONEYCOMB LOUVRE
0 - not present
1 - present (not compatible with the
anti-glare screen and sharp 43°, 17°x69°, 30°x73°
and diffuse optics, and the 20°–41° zoom lens)
LED COLOUR
N - 2200K (only CRI 80)
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
0S - 17°
0M - 24°
0L - 32°
0P - 43° sharp
0J - 53°
0W - 17°x69°
0X - 30°x73°
R3 - optical range 20°–41°
0D - diffuse
LUMEN OUTPUT AT SOURCE
2469 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
1821 lm (3000K, 17°, CRI 80)
NO. AND TYPE OF LED
1 COB LED, 2-step MacAdam
60000h L80 B10 (Ta 25°C)
22 mid power LEDs, 3-step MacAdam
50000h L80 B10 (Ta 25°C) (wall washer optics)
MATERIAL
body in thermally conductive plastic; trim in
AISI 316L stainless steel; screen in serigraphed-grey
and transparent, tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
recessed (wall, ground)
FEATURES
manual zoom lens adjustable using magnet included
fast installation: direct connection between fixture
and mains power supply
NOTES
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 869
22W 110-230Vac on/off
22W 230Vac DALI + PUSH
QL4110 I
QL4110 T
Stainless steel
Cor-ten
19W 110-230Vac wall washer
QL4110 00 0AI
QL4110 00 0AT
Stainless steel
Cor-ten
0 - CRI 80
1 - CRI >90
0 - on/off
D - DALI + PUSH
0 - none
1 - anti-glare screen, half transparent and half
serigraphed black (not compatible with the
honeycomb louvre and diffuse optics)
0 - not present
1 - present (not compatible with the
anti-glare screen and sharp 43°, 17°x69°, 30°x73°
and diffuse optics, and the 20°–41° zoom lens)
N - 2200K (only CRI 80)
F - 2700K
5 - 3000K
9 - 4000K
0S - 17°
0M - 24°
0L - 32°
0P - 43° sharp
0J - 53°
0W - 17°x69°
0X - 30°x73°
R3 - optical range 20°–41°
0D - diffuse
2469 lm (3000K, CRI 80)
1821 lm (3000K, 17°, CRI 80)
1 COB LED, 2-step MacAdam
60000h L80 B10 (Ta 25°C)
22 mid power LEDs, 3-step MacAdam
50000h L80 B10 (Ta 25°C) (wall washer optics)
body in thermally conductive plastic; trim in
AISI 316L stainless steel; screen in serigraphed-grey
and transparent, tempered extra-clear glass
built in
recessed (wall, ground)
manual zoom lens adjustable using magnet included
fast installation: direct connection between fixture and
mains power supply
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 869
kg 2.53
kg 2.53
17°x69° optics
30°x73° optics
Stainless steel
Cor-ten
Required outer casing, not included
Required outer casing, not included
