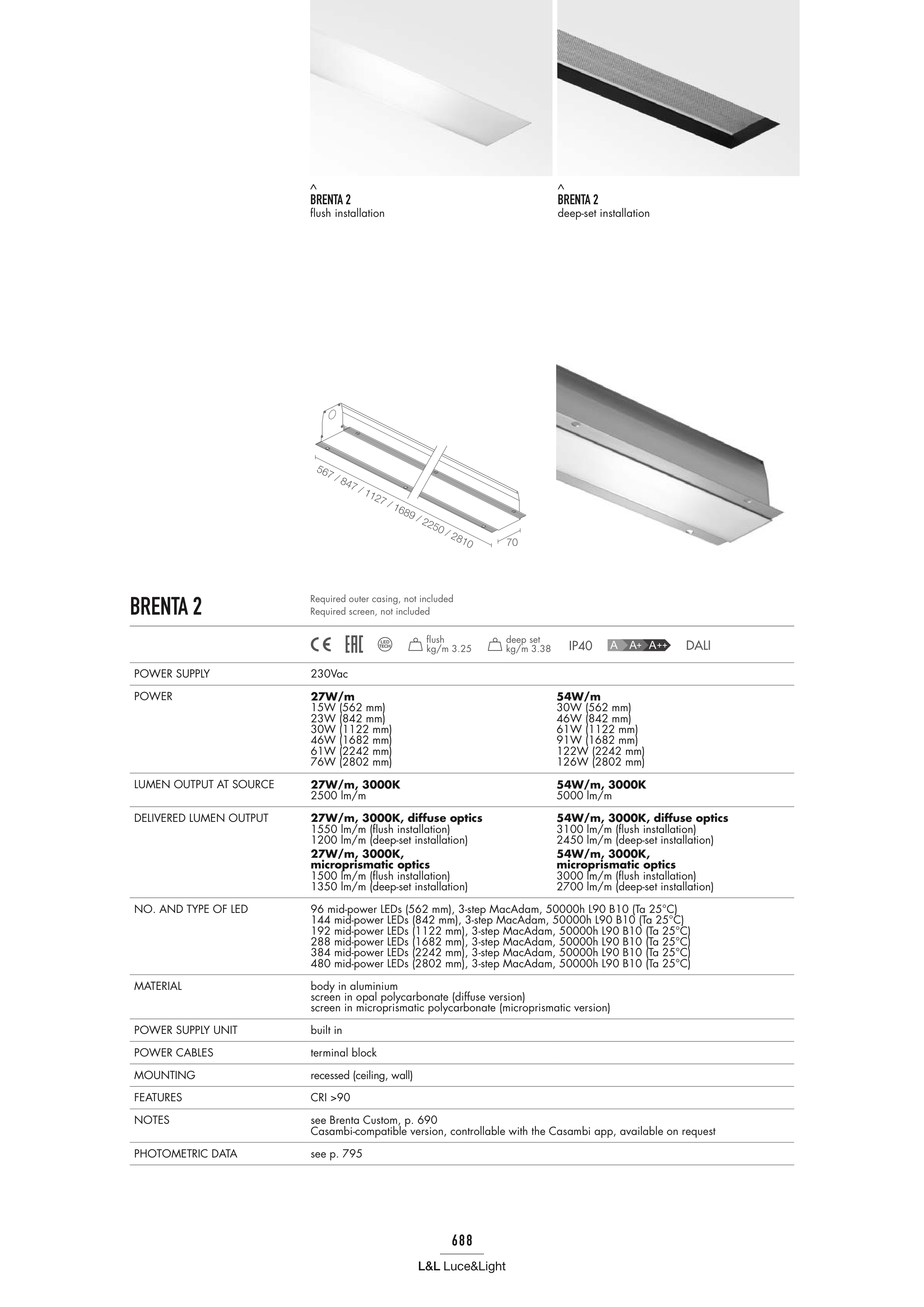

L&L Luce&Light
688
70
567 / 847 / 1127 / 1689 / 2250 / 2810
BRENTA 2
IP40
DALI
POWER SUPPLY
230Vac
POWER
27W/m
15W (562 mm)
23W (842 mm)
30W (1122 mm)
46W (1682 mm)
61W (2242 mm)
76W (2802 mm)
54W/m
30W (562 mm)
46W (842 mm)
61W (1122 mm)
91W (1682 mm)
122W (2242 mm)
126W (2802 mm)
LUMEN OUTPUT AT SOURCE
27W/m, 3000K
2500 lm/m
54W/m, 3000K
5000 lm/m
DELIVERED LUMEN OUTPUT
27W/m, 3000K, diffuse optics
1550 lm/m (flush installation)
1200 lm/m (deep-set installation)
27W/m, 3000K,
microprismatic optics
1500 lm/m (flush installation)
1350 lm/m (deep-set installation)
54W/m, 3000K, diffuse optics
3100 lm/m (flush installation)
2450 lm/m (deep-set installation)
54W/m, 3000K,
microprismatic optics
3000 lm/m (flush installation)
2700 lm/m (deep-set installation)
NO. AND TYPE OF LED
96 mid-power LEDs (562 mm), 3-step MacAdam, 50000h L90 B10 (Ta 25°C)
144 mid-power LEDs (842 mm), 3-step MacAdam, 50000h L90 B10 (Ta 25°C)
192 mid-power LEDs (1122 mm), 3-step MacAdam, 50000h L90 B10 (Ta 25°C)
288 mid-power LEDs (1682 mm), 3-step MacAdam, 50000h L90 B10 (Ta 25°C)
384 mid-power LEDs (2242 mm), 3-step MacAdam, 50000h L90 B10 (Ta 25°C)
480 mid-power LEDs (2802 mm), 3-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in aluminium
screen in opal polycarbonate (diffuse version)
screen in microprismatic polycarbonate (microprismatic version)
POWER SUPPLY UNIT
built in
POWER CABLES
terminal block
MOUNTING
recessed (ceiling, wall)
FEATURES
CRI >90
NOTES
see Brenta Custom, p. 690
Casambi-compatible version, controllable with the Casambi app, available on request
PHOTOMETRIC DATA
see p. 795
Required outer casing, not included
Required screen, not included
flush
kg/m 3.25
deep set
kg/m 3.38
BRENTA 2
flush installation
BRENTA 2
deep-set installation
