L&L Luce&Light
678
30
Ø98
Ø30
380
IP40

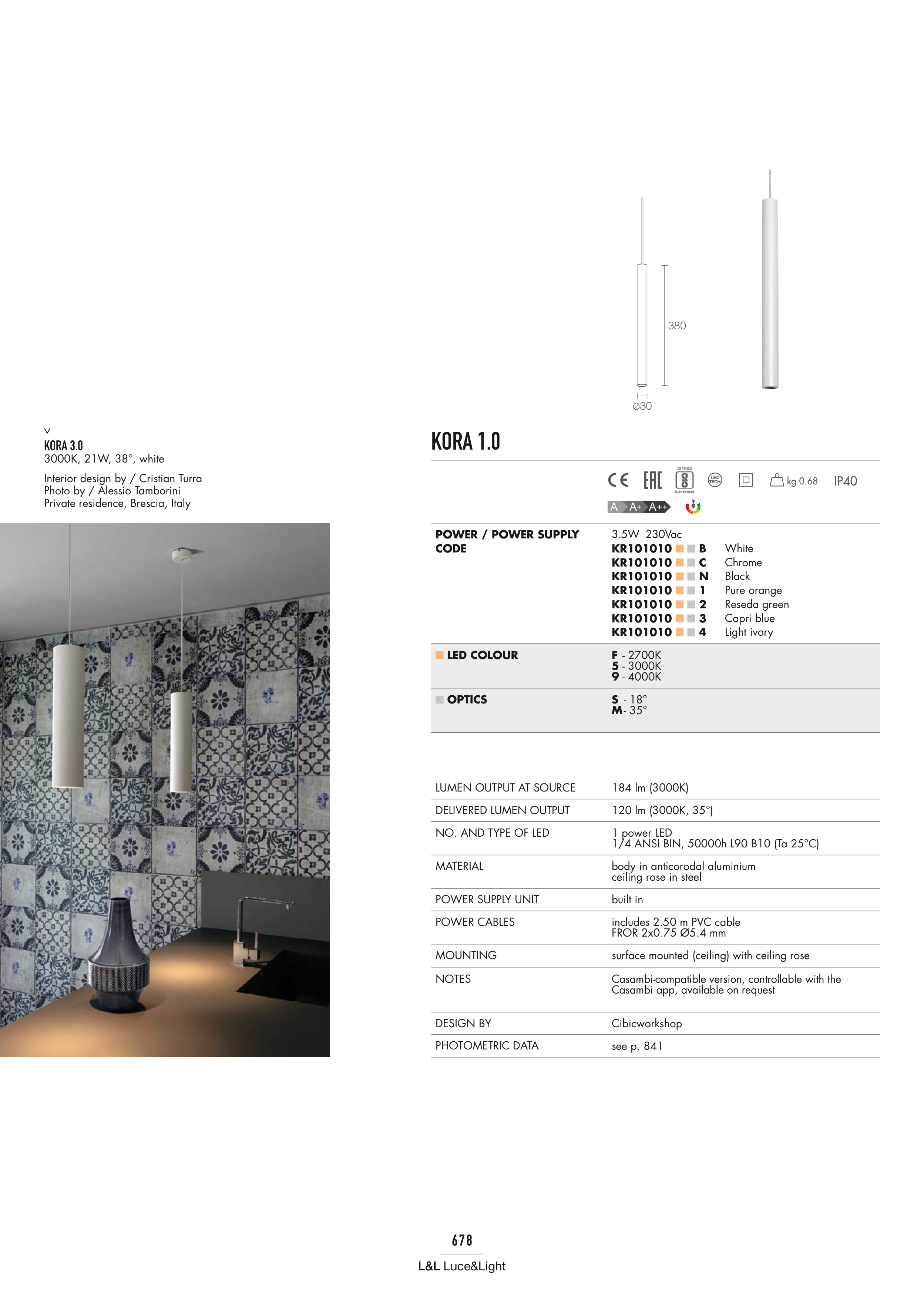

KORA 1.0
POWER / POWER SUPPLY
CODE
3.5W 230Vac
KR101010 B
KR101010 C
KR101010 N
KR101010 1
KR101010 2
KR101010 3
KR101010 4
White
Chrome
Black
Pure orange
Reseda green
Capri blue
Light ivory
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 18°
M - 35°
LUMEN OUTPUT AT SOURCE
184 lm (3000K)
DELIVERED LUMEN OUTPUT
120 lm (3000K, 35°)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in anticorodal aluminium
ceiling rose in steel
POWER SUPPLY UNIT
built in
POWER CABLES
includes 2.50 m PVC cable
FROR 2x0.75 Ø5.4 mm
MOUNTING
surface mounted (ceiling) with ceiling rose
NOTES
Casambi-compatible version, controllable with the
Casambi app, available on request
DESIGN BY
Cibicworkshop
PHOTOMETRIC DATA
see p. 841
KORA 3.0
3000K, 21W, 38°, white
Interior design by / Cristian Turra
Photo by / Alessio Tamborini
Private residence, Brescia, Italy
kg 0.68
