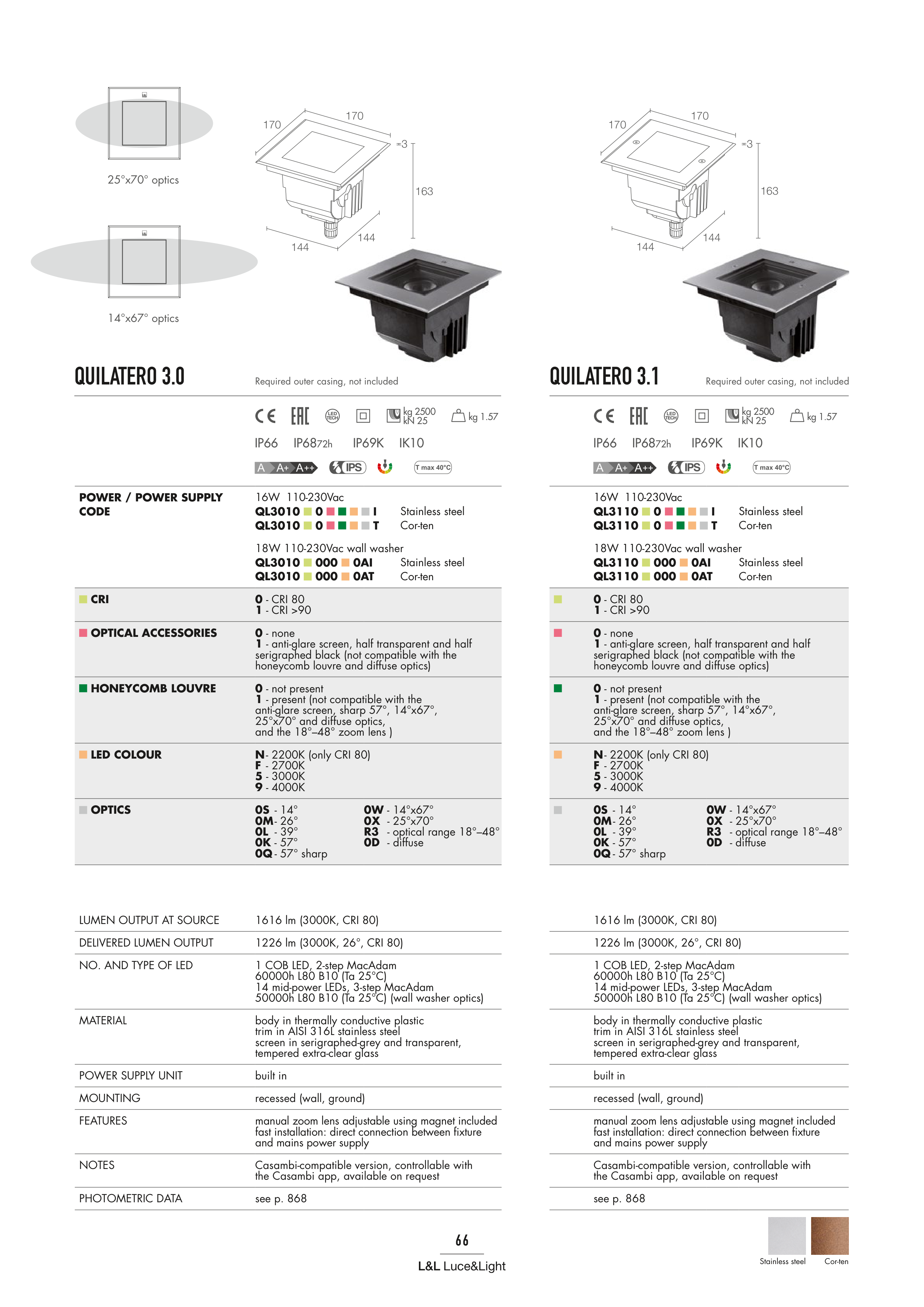

QUILATERO 3.0
QUILATERO 3.1
IP66
IP66
IP69K
IP69K
IK10
IK10
kg 2500
kN 25
kg 2500
kN 25
170
170
163
3
144
144
170
170
163
3
144
144
IP6872h
IP6872h
14°x67° optics
25°x70° optics
POWER / POWER SUPPLY
CODE
16W 110-230Vac
QL3010 0 I
QL3010 0 T
Stainless steel
Cor-ten
18W 110-230Vac wall washer
QL3010 000 0AI
QL3010 000 0AT
Stainless steel
Cor-ten
CRI
0 - CRI 80
1 - CRI >90
OPTICAL ACCESSORIES
0 - none
1 - anti-glare screen, half transparent and half
serigraphed black (not compatible with the
honeycomb louvre and diffuse optics)
HONEYCOMB LOUVRE
0 - not present
1 - present (not compatible with the
anti-glare screen, sharp 57°, 14°x67°,
25°x70° and diffuse optics,
and the 18°–48° zoom lens )
LED COLOUR
N - 2200K (only CRI 80)
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
0S - 14°
0M - 26°
0L - 39°
0K - 57°
0Q - 57° sharp
0W - 14°x67°
0X - 25°x70°
R3 - optical range 18°–48°
0D - diffuse
LUMEN OUTPUT AT SOURCE
1616 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
1226 lm (3000K, 26°, CRI 80)
NO. AND TYPE OF LED
1 COB LED, 2-step MacAdam
60000h L80 B10 (Ta 25°C)
14 mid-power LEDs, 3-step MacAdam
50000h L80 B10 (Ta 25°C) (wall washer optics)
MATERIAL
body in thermally conductive plastic
trim in AISI 316L stainless steel
screen in serigraphed-grey and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
recessed (wall, ground)
FEATURES
manual zoom lens adjustable using magnet included
fast installation: direct connection between fixture
and mains power supply
NOTES
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 868
16W 110-230Vac
QL3110 0 I
QL3110 0 T
Stainless steel
Cor-ten
18W 110-230Vac wall washer
QL3110 000 0AI
QL3110 000 0AT
Stainless steel
Cor-ten
0 - CRI 80
1 - CRI >90
0 - none
1 - anti-glare screen, half transparent and half
serigraphed black (not compatible with the
honeycomb louvre and diffuse optics)
0 - not present
1 - present (not compatible with the
anti-glare screen, sharp 57°, 14°x67°,
25°x70° and diffuse optics,
and the 18°–48° zoom lens )
N - 2200K (only CRI 80)
F - 2700K
5 - 3000K
9 - 4000K
0S - 14°
0M - 26°
0L - 39°
0K - 57°
0Q - 57° sharp
0W - 14°x67°
0X - 25°x70°
R3 - optical range 18°–48°
0D - diffuse
1616 lm (3000K, CRI 80)
1226 lm (3000K, 26°, CRI 80)
1 COB LED, 2-step MacAdam
60000h L80 B10 (Ta 25°C)
14 mid-power LEDs, 3-step MacAdam
50000h L80 B10 (Ta 25°C) (wall washer optics)
body in thermally conductive plastic
trim in AISI 316L stainless steel
screen in serigraphed-grey and transparent,
tempered extra-clear glass
built in
recessed (wall, ground)
manual zoom lens adjustable using magnet included
fast installation: direct connection between fixture
and mains power supply
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 868
kg 1.57
kg 1.57
Stainless steel
Cor-ten
Required outer casing, not included
Required outer casing, not included
