L&L Luce&Light
670
IP40
DALI
PUSH
120
Ø79
620
38

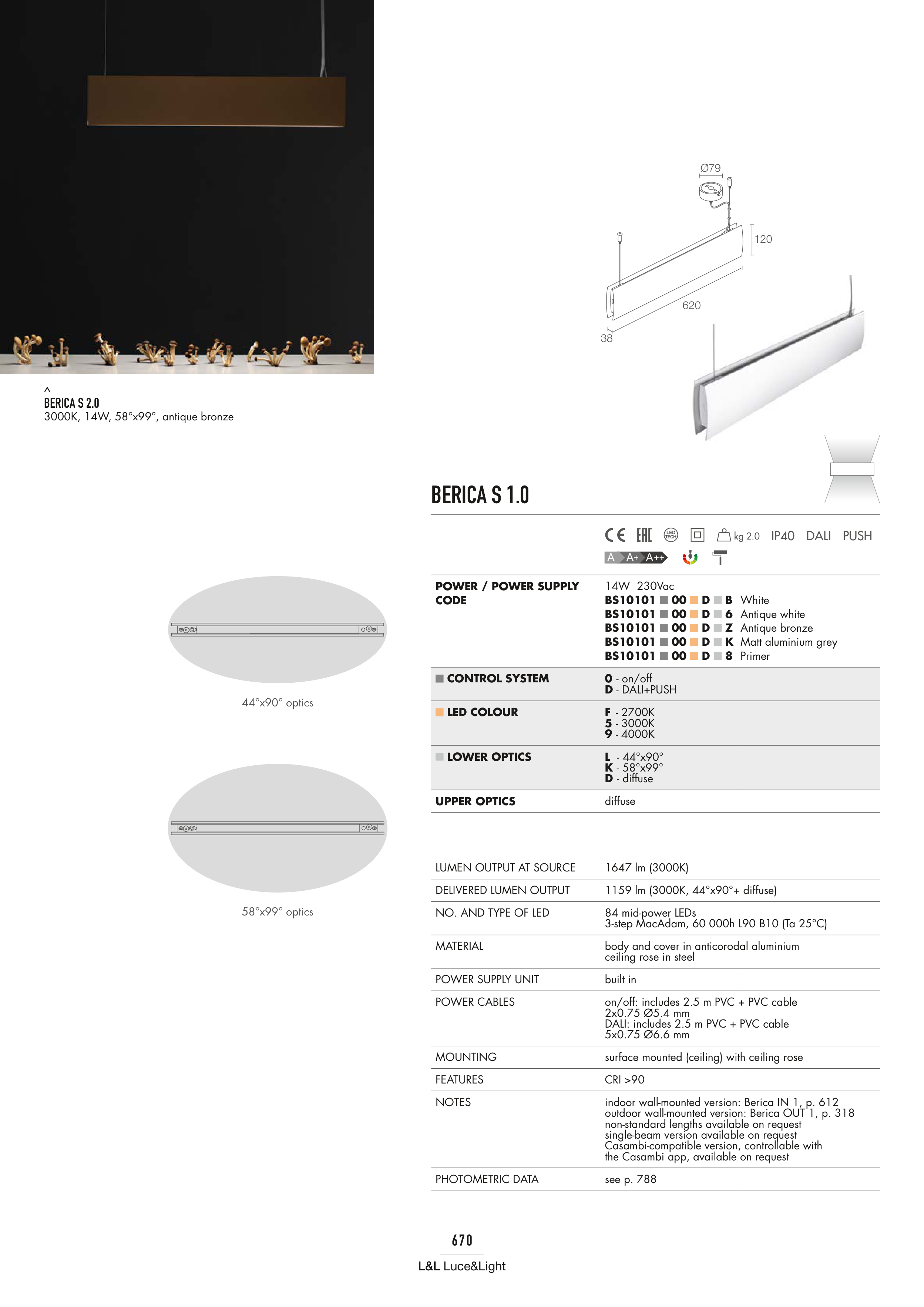

BERICA S 1.0
POWER / POWER SUPPLY
CODE
14W 230Vac
BS10101 00 D B
BS10101 00 D 6
BS10101 00 D Z
BS10101 00 D K
BS10101 00 D 8
White
Antique white
Antique bronze
Matt aluminium grey
Primer
CONTROL SYSTEM
0 - on/off
D - DALI+PUSH
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
LOWER OPTICS
L - 44°x90°
K - 58°x99°
D - diffuse
UPPER OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
1647 lm (3000K)
DELIVERED LUMEN OUTPUT
1159 lm (3000K, 44°x90°+ diffuse)
NO. AND TYPE OF LED
84 mid-power LEDs
3-step MacAdam, 60 000h L90 B10 (Ta 25°C)
MATERIAL
body and cover in anticorodal aluminium
ceiling rose in steel
POWER SUPPLY UNIT
built in
POWER CABLES
on/off: includes 2.5 m PVC + PVC cable
2x0.75 Ø5.4 mm
DALI: includes 2.5 m PVC + PVC cable
5x0.75 Ø6.6 mm
MOUNTING
surface mounted (ceiling) with ceiling rose
FEATURES
CRI >90
NOTES
indoor wall-mounted version: Berica IN 1, p. 612
outdoor wall-mounted version: Berica OUT 1, p. 318
non-standard lengths available on request
single-beam version available on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 788
kg 2.0
44°x90° optics
58°x99° optics
BERICA S 2.0
3000K, 14W, 58°x99°, antique bronze
