L&L Luce&Light
656
81
80
80
100
Ø80

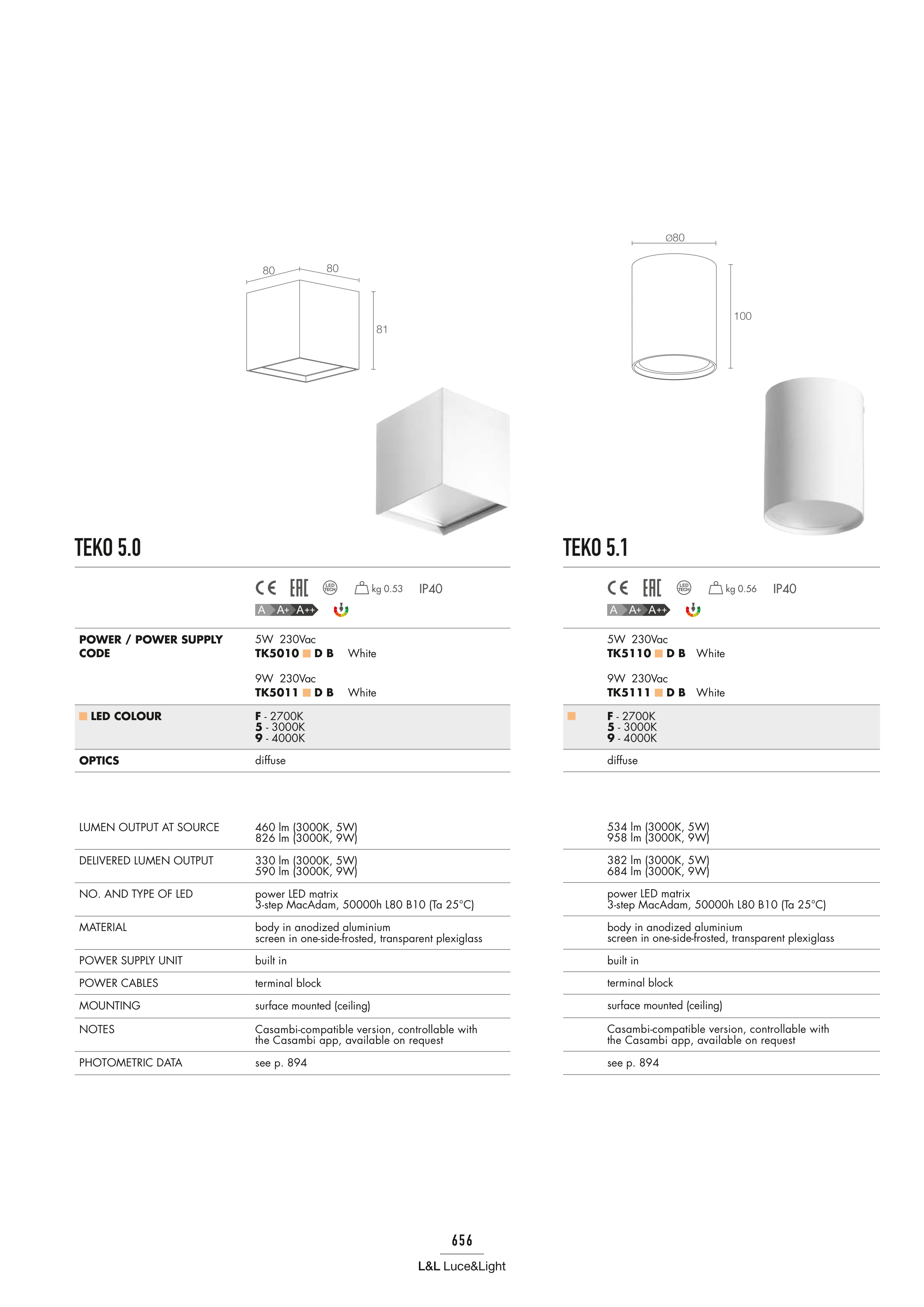

TEKO 5.1
TEKO 5.0
IP40
IP40
POWER / POWER SUPPLY
CODE
5W 230Vac
TK5010 D B
White
9W 230Vac
TK5011 D B
White
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
460 lm (3000K, 5W)
826 lm (3000K, 9W)
DELIVERED LUMEN OUTPUT
330 lm (3000K, 5W)
590 lm (3000K, 9W)
NO. AND TYPE OF LED
power LED matrix
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
MATERIAL
body in anodized aluminium
screen in one-side-frosted, transparent plexiglass
POWER SUPPLY UNIT
built in
POWER CABLES
terminal block
MOUNTING
surface mounted (ceiling)
NOTES
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 894
5W 230Vac
TK5110 D B
White
9W 230Vac
TK5111 D B
White
F - 2700K
5 - 3000K
9 - 4000K
diffuse
534 lm (3000K, 5W)
958 lm (3000K, 9W)
382 lm (3000K, 5W)
684 lm (3000K, 9W)
power LED matrix
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
body in anodized aluminium
screen in one-side-frosted, transparent plexiglass
built in
terminal block
surface mounted (ceiling)
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 894
kg 0.53
kg 0.56
