L&L Luce&Light
63

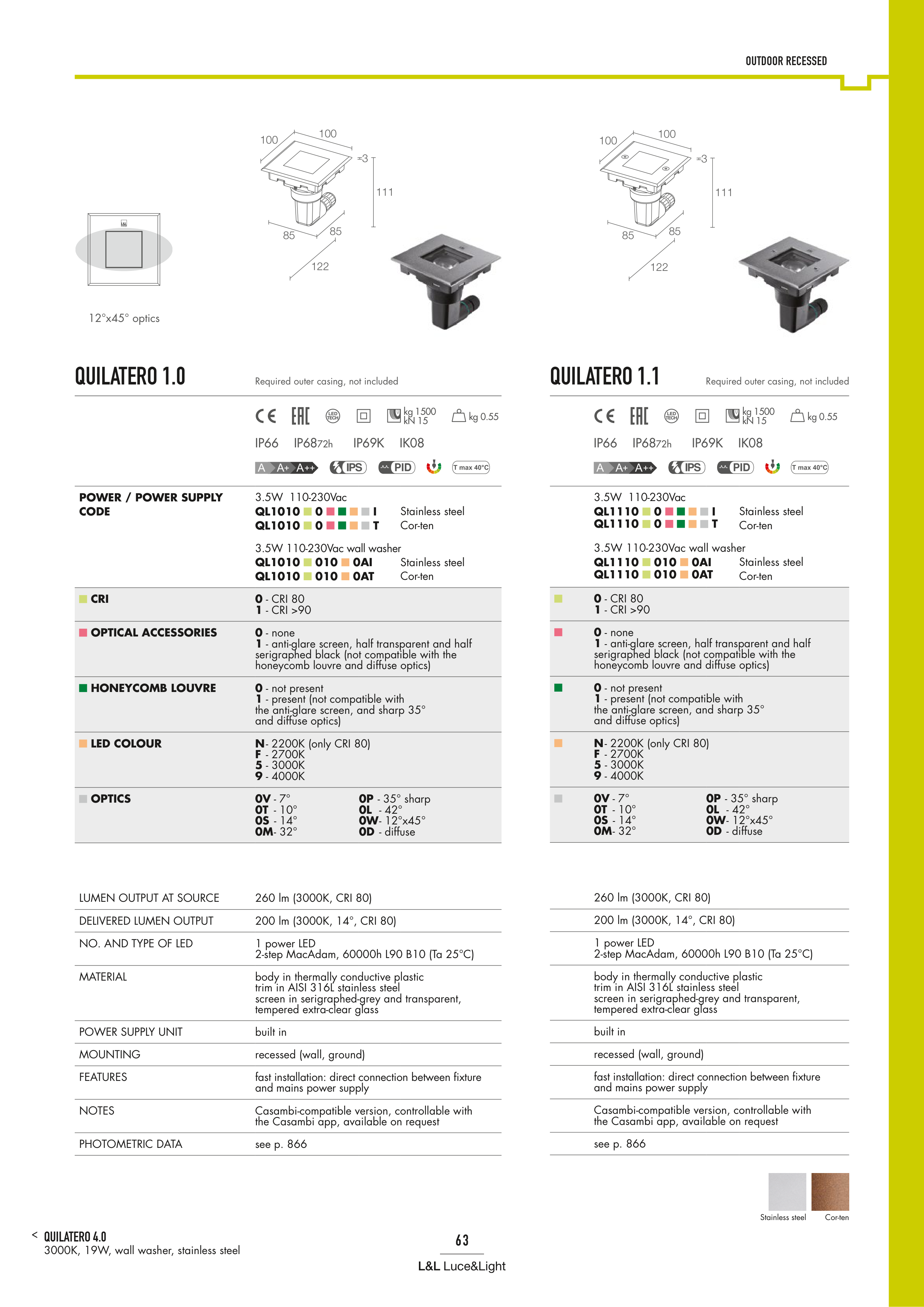

QUILATERO 1.0
QUILATERO 1.1
IP66
IP66
IP69K
IP69K
IK08
IK08
IP6872h
IP6872h
kg 1500
kN 15
kg 1500
kN 15
111
100
100
85
85
122
3
111
100
100
85
85
122
3
POWER / POWER SUPPLY
CODE
3.5W 110-230Vac
QL1010 0 I
QL1010 0 T
Stainless steel
Cor-ten
3.5W 110-230Vac wall washer
QL1010 010 0AI
QL1010 010 0AT
Stainless steel
Cor-ten
CRI
0 - CRI 80
1 - CRI >90
OPTICAL ACCESSORIES
0 - none
1 - anti-glare screen, half transparent and half
serigraphed black (not compatible with the
honeycomb louvre and diffuse optics)
HONEYCOMB LOUVRE
0 - not present
1 - present (not compatible with
the anti-glare screen, and sharp 35°
and diffuse optics)
LED COLOUR
N - 2200K (only CRI 80)
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
0V - 7°
0T - 10°
0S - 14°
0M - 32°
0P - 35° sharp
0L - 42°
0W - 12°x45°
0D - diffuse
LUMEN OUTPUT AT SOURCE
260 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
200 lm (3000K, 14°, CRI 80)
NO. AND TYPE OF LED
1 power LED
2-step MacAdam, 60000h L90 B10 (Ta 25°C)
MATERIAL
body in thermally conductive plastic
trim in AISI 316L stainless steel
screen in serigraphed-grey and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
recessed (wall, ground)
FEATURES
fast installation: direct connection between fixture
and mains power supply
NOTES
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 866
3.5W 110-230Vac
QL1110 0 I
QL1110 0 T
Stainless steel
Cor-ten
3.5W 110-230Vac wall washer
QL1110 010 0AI
QL1110 010 0AT
Stainless steel
Cor-ten
0 - CRI 80
1 - CRI >90
0 - none
1 - anti-glare screen, half transparent and half
serigraphed black (not compatible with the
honeycomb louvre and diffuse optics)
0 - not present
1 - present (not compatible with
the anti-glare screen, and sharp 35°
and diffuse optics)
N - 2200K (only CRI 80)
F - 2700K
5 - 3000K
9 - 4000K
0V - 7°
0T - 10°
0S - 14°
0M - 32°
0P - 35° sharp
0L - 42°
0W - 12°x45°
0D - diffuse
260 lm (3000K, CRI 80)
200 lm (3000K, 14°, CRI 80)
1 power LED
2-step MacAdam, 60000h L90 B10 (Ta 25°C)
body in thermally conductive plastic
trim in AISI 316L stainless steel
screen in serigraphed-grey and transparent,
tempered extra-clear glass
built in
recessed (wall, ground)
fast installation: direct connection between fixture
and mains power supply
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 866
kg 0.55
kg 0.55
12°x45° optics
QUILATERO 4.0
3000K, 19W, wall washer, stainless steel
Stainless steel
Cor-ten
OUTDOOR RECESSED
Required outer casing, not included
Required outer casing, not included
