L&L Luce&Light
646
IK06
IP40

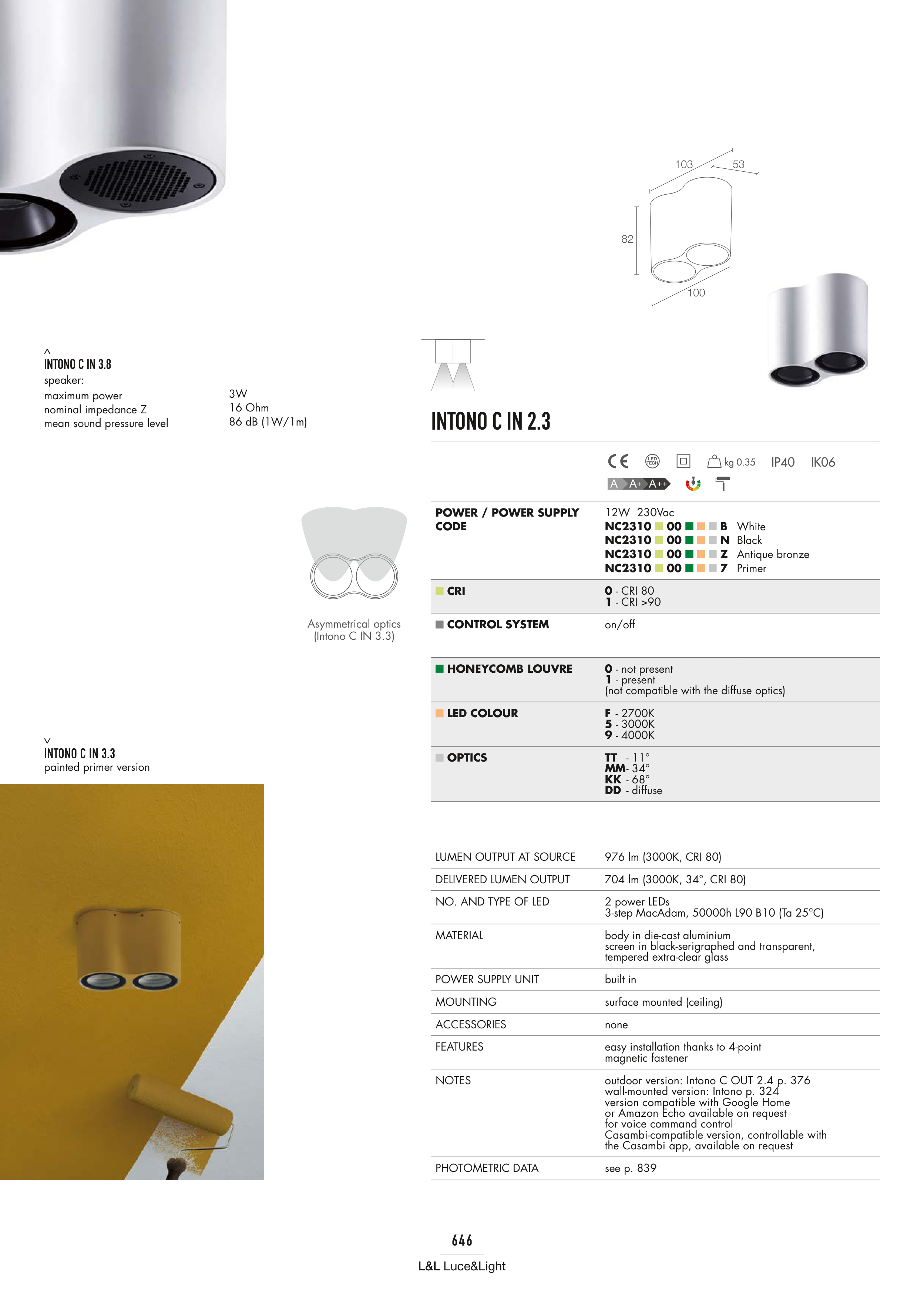

INTONO C IN 2.3
82
103
100
53
INTONO C IN 3.8
speaker:
maximum power
nominal impedance Z
mean sound pressure level
3W
16 Ohm
86 dB (1W/1m)
POWER / POWER SUPPLY
CODE
12W 230Vac
NC2310 00 B
NC2310 00 N
NC2310 00 Z
NC2310 00 7
White
Black
Antique bronze
Primer
CRI
0 - CRI 80
1 - CRI >90
CONTROL SYSTEM
on/off
HONEYCOMB LOUVRE
0 - not present
1 - present
(not compatible with the diffuse optics)
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
TT - 11°
MM - 34°
KK - 68°
DD - diffuse
LUMEN OUTPUT AT SOURCE
976 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
704 lm (3000K, 34°, CRI 80)
NO. AND TYPE OF LED
2 power LEDs
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium
screen in black-serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (ceiling)
ACCESSORIES
none
FEATURES
easy installation thanks to 4-point
magnetic fastener
NOTES
outdoor version: Intono C OUT 2.4 p. 376
wall-mounted version: Intono p. 324
version compatible with Google Home
or Amazon Echo available on request
for voice command control
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 839
kg 0.35
Asymmetrical optics
(Intono C IN 3.3)
INTONO C IN 3.3
painted primer version
