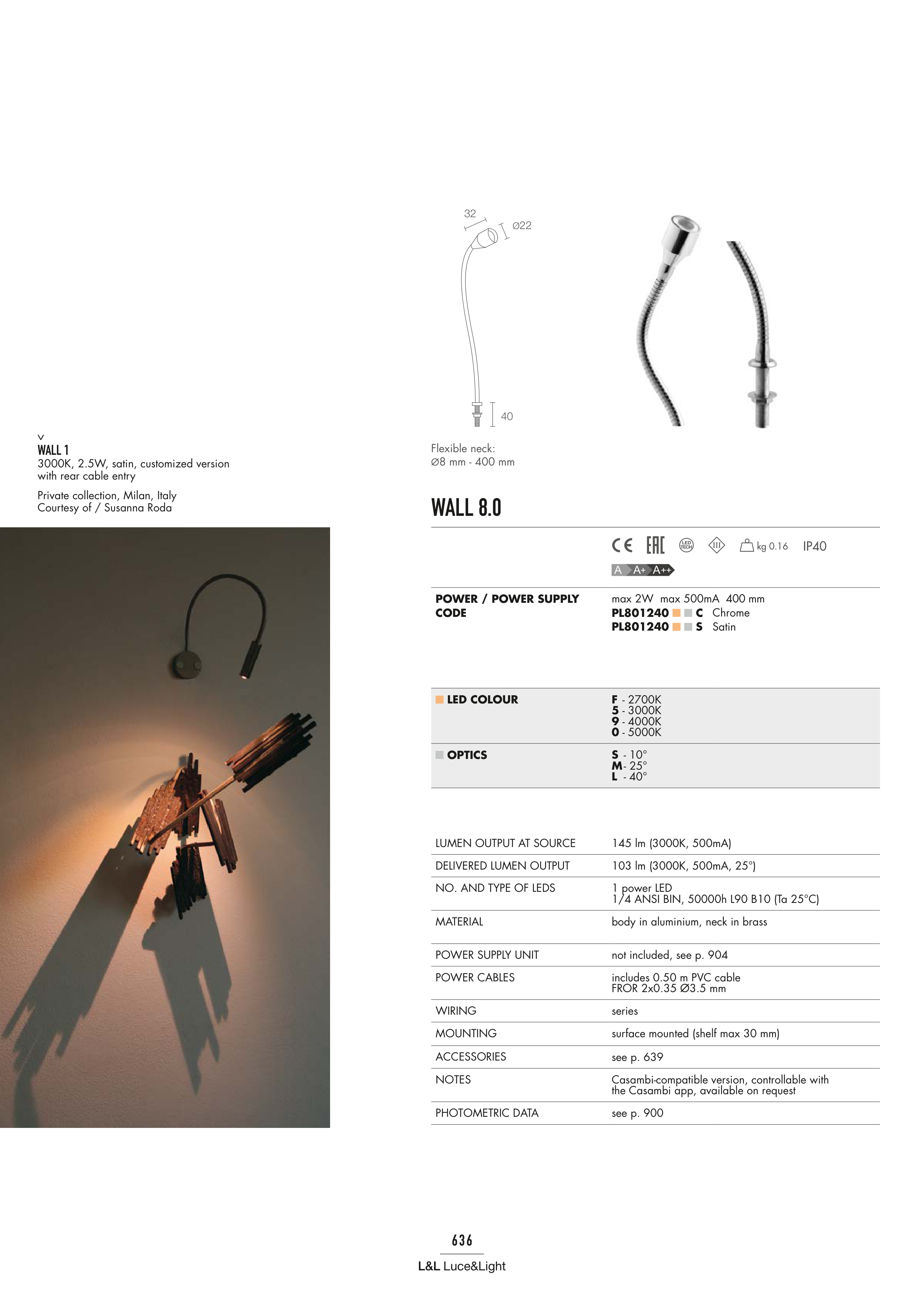

L&L Luce&Light
636
40
Ø22
32
WALL 8.0
IP40
POWER / POWER SUPPLY
CODE
max 2W max 500mA 400 mm
PL801240 C
PL801240 S
Chrome
Satin
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
OPTICS
S - 10°
M - 25°
L - 40°
LUMEN OUTPUT AT SOURCE
145 lm (3000K, 500mA)
DELIVERED LUMEN OUTPUT
103 lm (3000K, 500mA, 25°)
NO. AND TYPE OF LEDS
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in aluminium, neck in brass
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 0.50 m PVC cable
FROR 2x0.35 Ø3.5 mm
WIRING
series
MOUNTING
surface mounted (shelf max 30 mm)
ACCESSORIES
see p. 639
NOTES
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 900
Flexible neck:
Ø8 mm - 400 mm
WALL 1
3000K, 2.5W, satin, customized version
with rear cable entry
Private collection, Milan, Italy
Courtesy of / Susanna Roda
kg 0.16
