L&L Luce&Light
635
Ø15
50
16
35

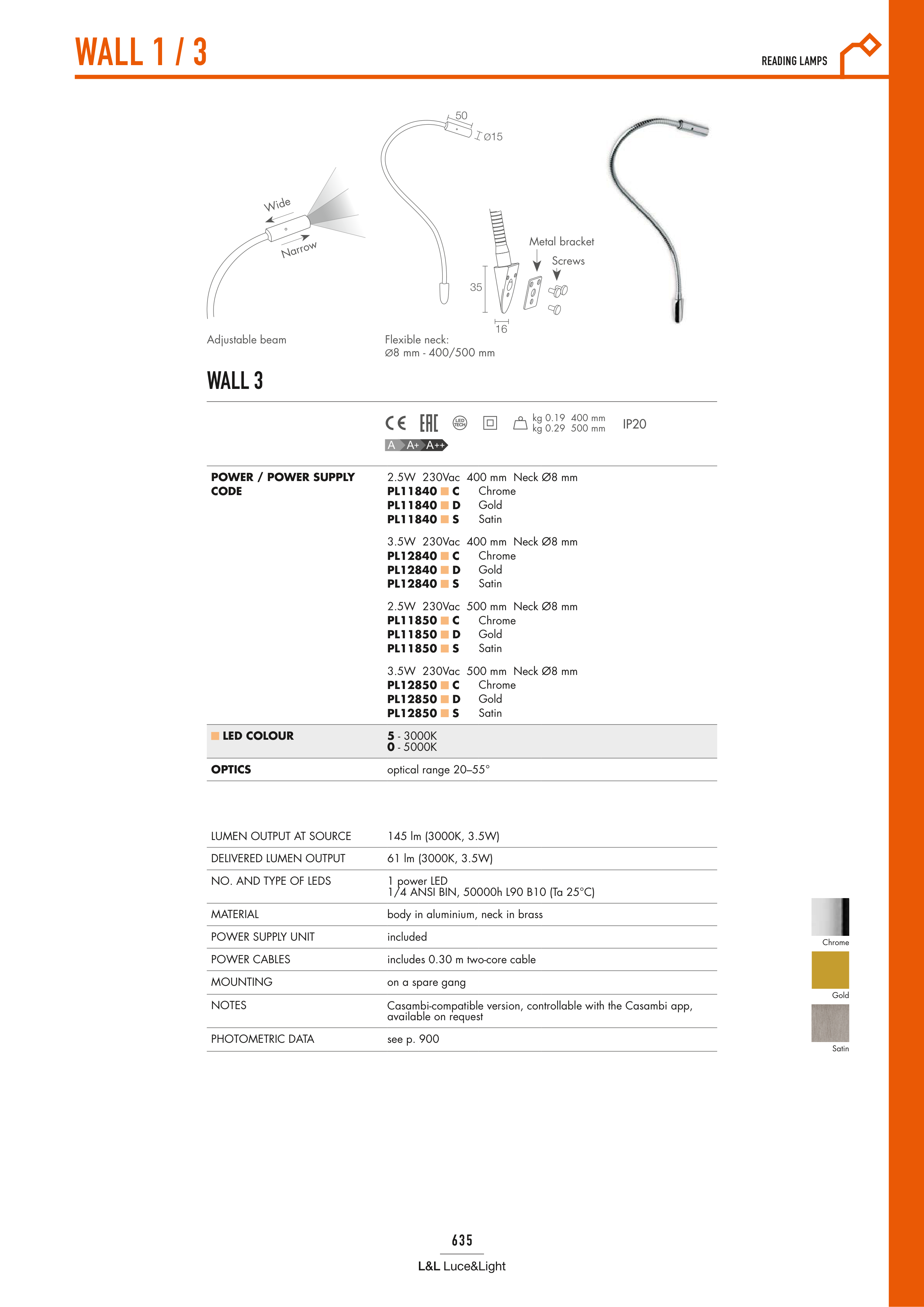

WALL 1 / 3
IP20
POWER / POWER SUPPLY
CODE
2.5W 230Vac 400 mm Neck Ø8 mm
PL11840 C
PL11840 D
PL11840 S
Chrome
Gold
Satin
3.5W 230Vac 400 mm Neck Ø8 mm
PL12840 C
PL12840 D
PL12840 S
Chrome
Gold
Satin
2.5W 230Vac 500 mm Neck Ø8 mm
PL11850 C
PL11850 D
PL11850 S
Chrome
Gold
Satin
3.5W 230Vac 500 mm Neck Ø8 mm
PL12850 C
PL12850 D
PL12850 S
Chrome
Gold
Satin
LED COLOUR
5 - 3000K
0 - 5000K
OPTICS
optical range 20–55°
LUMEN OUTPUT AT SOURCE
145 lm (3000K, 3.5W)
DELIVERED LUMEN OUTPUT
61 lm (3000K, 3.5W)
NO. AND TYPE OF LEDS
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in aluminium, neck in brass
POWER SUPPLY UNIT
included
POWER CABLES
includes 0.30 m two-core cable
MOUNTING
on a spare gang
NOTES
Casambi-compatible version, controllable with the Casambi app,
available on request
PHOTOMETRIC DATA
see p. 900
Flexible neck:
Ø8 mm - 400/500 mm
Adjustable beam
Metal bracket
Screws
Wide
Narrow
READING LAMPS
WALL 3
kg 0.19 400 mm
kg 0.29 500 mm
Chrome
Gold
Satin
