120
120
80
120
120
80
0 mm
200
80

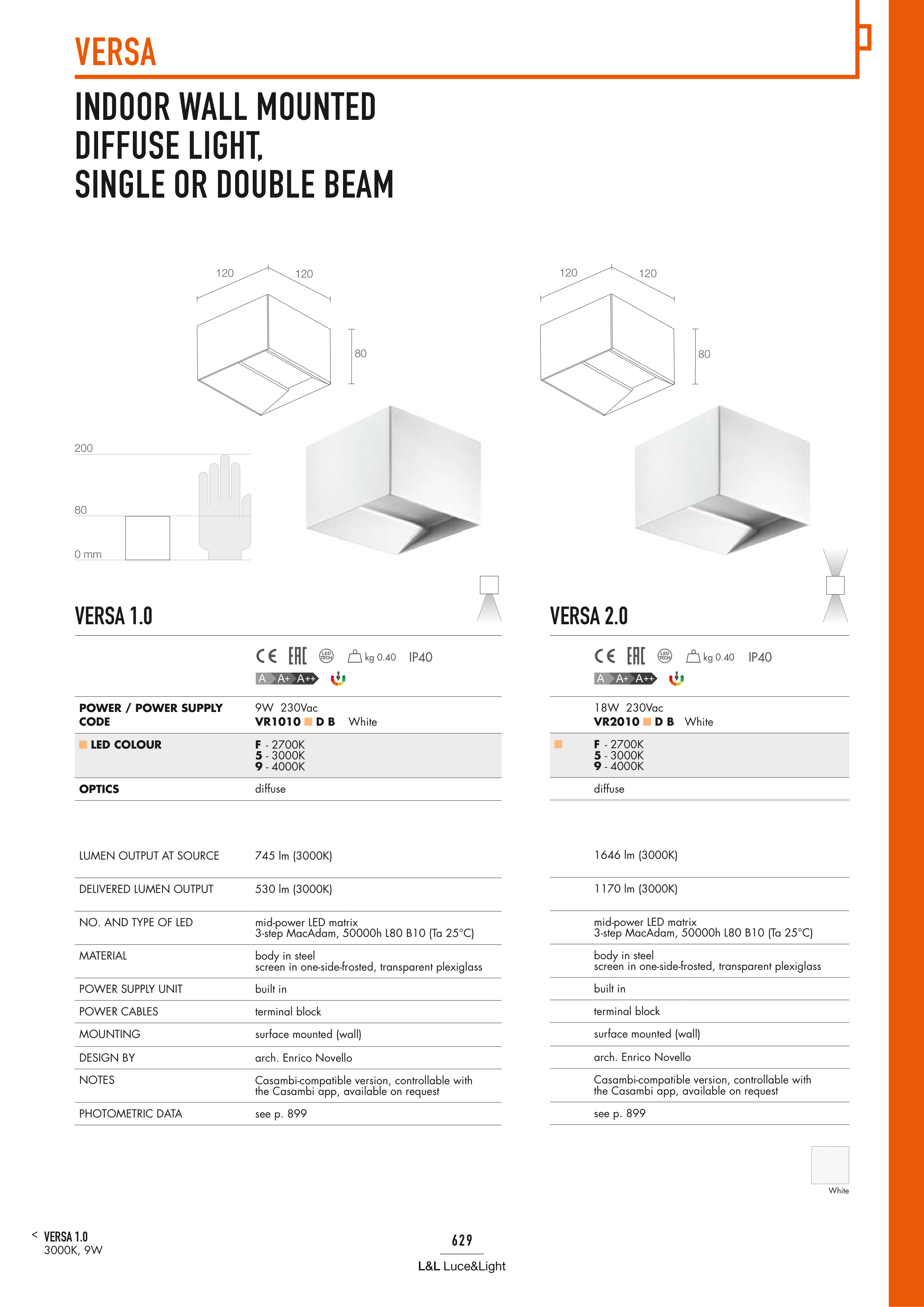

L&L Luce&Light
629
VERSA
VERSA 1.0
VERSA 2.0
IP40
IP40
VERSA 1.0
3000K, 9W
POWER / POWER SUPPLY
CODE
9W 230Vac
VR1010 D B
White
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
745 lm (3000K)
DELIVERED LUMEN OUTPUT
530 lm (3000K)
NO. AND TYPE OF LED
mid-power LED matrix
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
MATERIAL
body in steel
screen in one-side-frosted, transparent plexiglass
POWER SUPPLY UNIT
built in
POWER CABLES
terminal block
MOUNTING
surface mounted (wall)
DESIGN BY
arch. Enrico Novello
NOTES
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 899
18W 230Vac
VR2010 D B
White
F - 2700K
5 - 3000K
9 - 4000K
diffuse
1646 lm (3000K)
1170 lm (3000K)
mid-power LED matrix
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
body in steel
screen in one-side-frosted, transparent plexiglass
built in
terminal block
surface mounted (wall)
arch. Enrico Novello
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 899
INDOOR WALL MOUNTED
DIFFUSE LIGHT,
SINGLE OR DOUBLE BEAM
White
kg 0.40
kg 0.40
