L&L Luce&Light
614
120
120
30

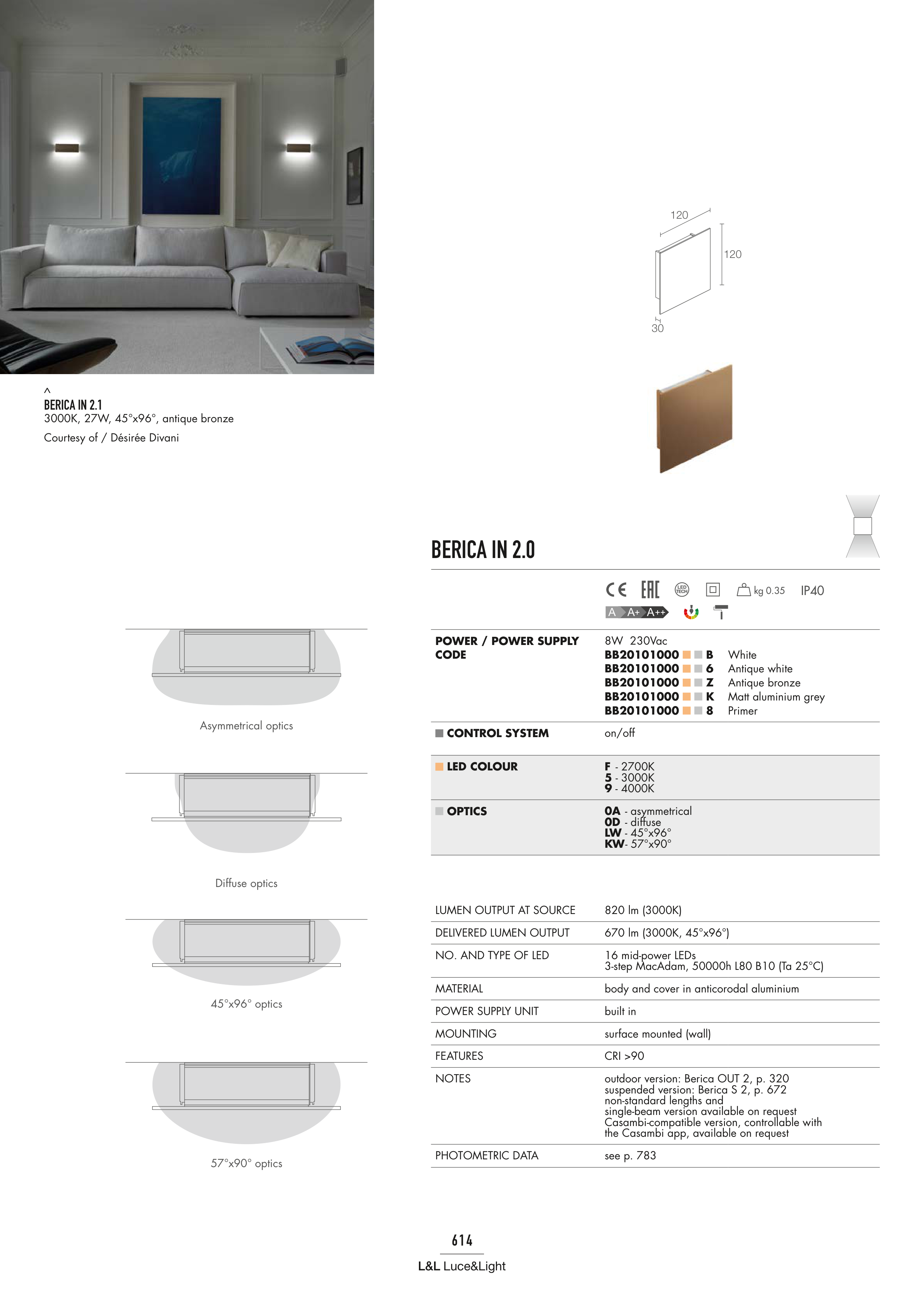

BERICA IN 2.0
IP40
POWER / POWER SUPPLY
CODE
8W 230Vac
BB20101000 B
BB20101000 6
BB20101000 Z
BB20101000 K
BB20101000 8
White
Antique white
Antique bronze
Matt aluminium grey
Primer
CONTROL SYSTEM
on/off
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
0A - asymmetrical
0D - diffuse
LW - 45°x96°
KW - 57°x90°
LUMEN OUTPUT AT SOURCE
820 lm (3000K)
DELIVERED LUMEN OUTPUT
670 lm (3000K, 45°x96°)
NO. AND TYPE OF LED
16 mid-power LEDs
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
MATERIAL
body and cover in anticorodal aluminium
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (wall)
FEATURES
CRI >90
NOTES
outdoor version: Berica OUT 2, p. 320
suspended version: Berica S 2, p. 672
non-standard lengths and
single-beam version available on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 783
BERICA IN 2.1
3000K, 27W, 45°x96°, antique bronze
Courtesy of / Désirée Divani
45°x96° optics
Asymmetrical optics
57°x90° optics
Diffuse optics
kg 0.35
