L&L Luce&Light
576
65x65 mm
165x165 mm
H 150 mm
85
12
62
65
65
±15°
62
12
65
65
125
85
±15°
IP40

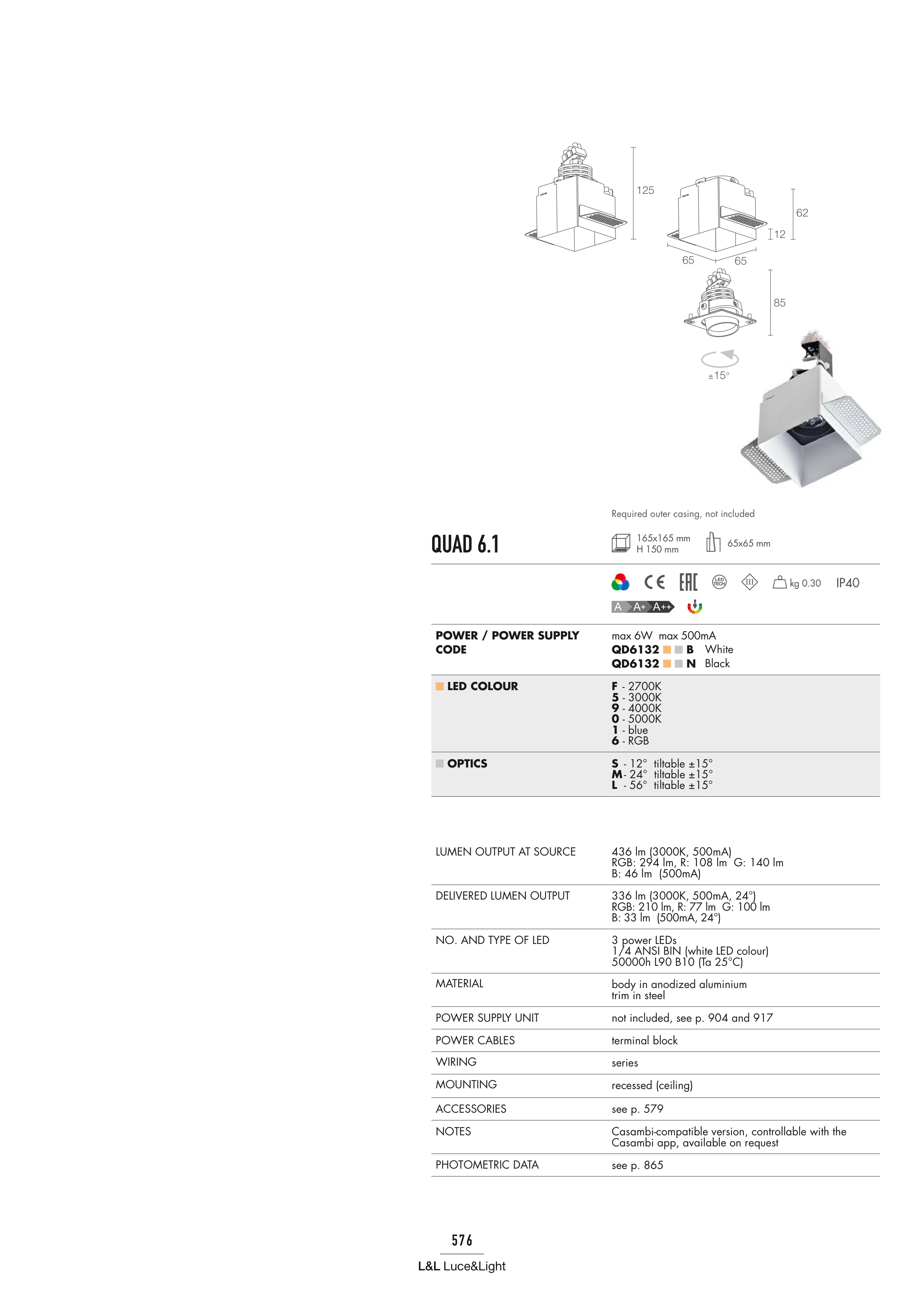

QUAD 6.1
Required outer casing, not included
POWER / POWER SUPPLY
CODE
max 6W max 500mA
QD6132 B
QD6132 N
White
Black
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
6 - RGB
OPTICS
S - 12° tiltable ±15°
M - 24° tiltable ±15°
L - 56° tiltable ±15°
LUMEN OUTPUT AT SOURCE
436 lm (3000K, 500mA)
RGB: 294 lm, R: 108 lm G: 140 lm
B: 46 lm (500mA)
DELIVERED LUMEN OUTPUT
336 lm (3000K, 500mA, 24°)
RGB: 210 lm, R: 77 lm G: 100 lm
B: 33 lm (500mA, 24°)
NO. AND TYPE OF LED
3 power LEDs
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
MATERIAL
body in anodized aluminium
trim in steel
POWER SUPPLY UNIT
not included, see p. 904 and 917
POWER CABLES
terminal block
WIRING
series
MOUNTING
recessed (ceiling)
ACCESSORIES
see p. 579
NOTES
Casambi-compatible version, controllable with the
Casambi app, available on request
PHOTOMETRIC DATA
see p. 865
kg 0.30
