Ø31
Ø107
87

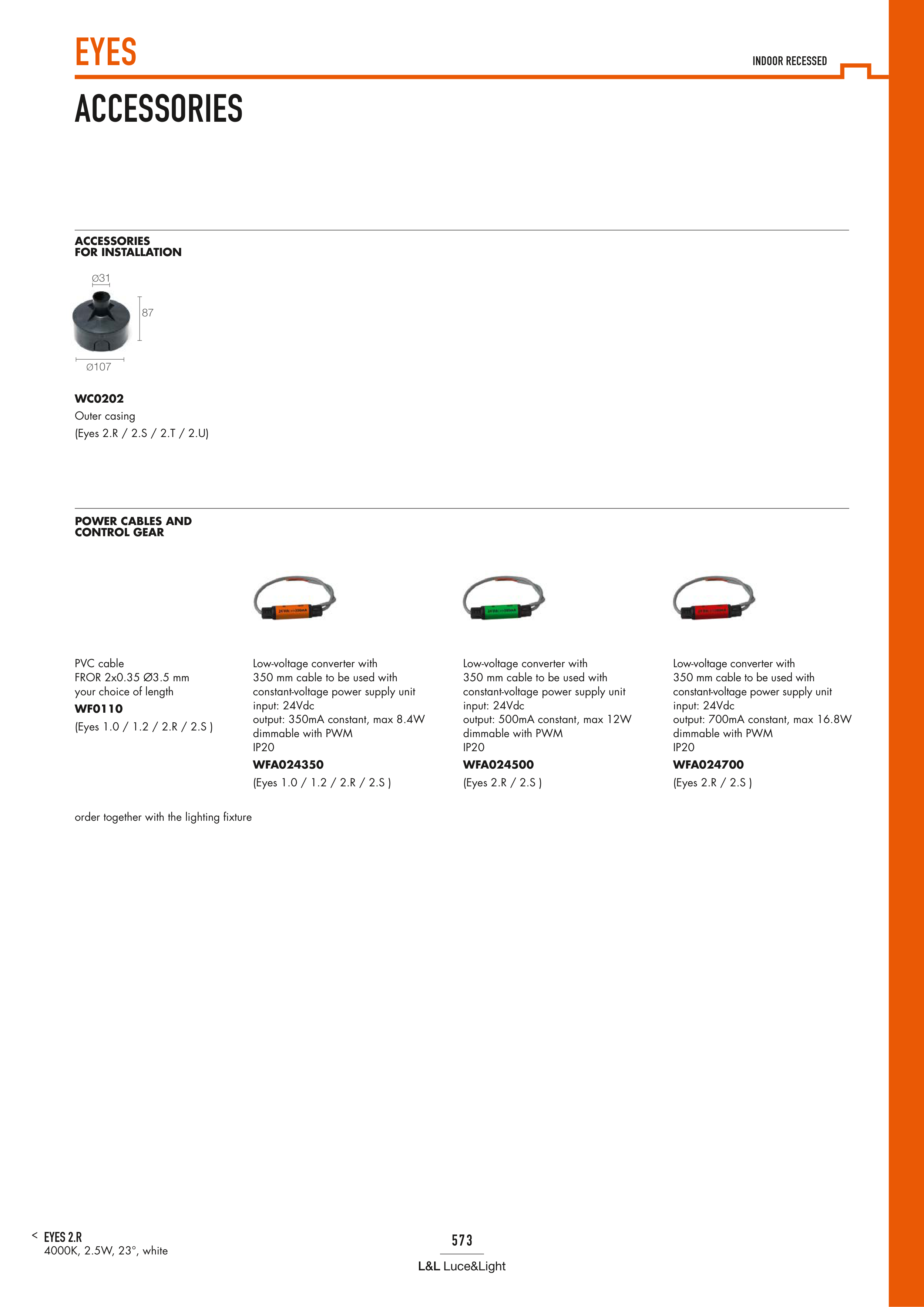

EYES
INDOOR RECESSED
ACCESSORIES
FOR INSTALLATION
POWER CABLES AND
CONTROL GEAR
PVC cable
FROR 2x0.35 Ø3.5 mm
your choice of length
WF0110
(Eyes 1.0 / 1.2 / 2.R / 2.S )
order together with the lighting fixture
WC0202
Outer casing
(Eyes 2.R / 2.S / 2.T / 2.U)
Low-voltage converter with
350 mm cable to be used with
constant-voltage power supply unit
input: 24Vdc
output: 350mA constant, max 8.4W
dimmable with PWM
IP20
WFA024350
(Eyes 1.0 / 1.2 / 2.R / 2.S )
Low-voltage converter with
350 mm cable to be used with
constant-voltage power supply unit
input: 24Vdc
output: 500mA constant, max 12W
dimmable with PWM
IP20
WFA024500
(Eyes 2.R / 2.S )
Low-voltage converter with
350 mm cable to be used with
constant-voltage power supply unit
input: 24Vdc
output: 700mA constant, max 16.8W
dimmable with PWM
IP20
WFA024700
(Eyes 2.R / 2.S )
