L&L Luce&Light
562
87
2
Ø59
Ø44
Ø 50 mm
Ø 170 mm
H 150 mm

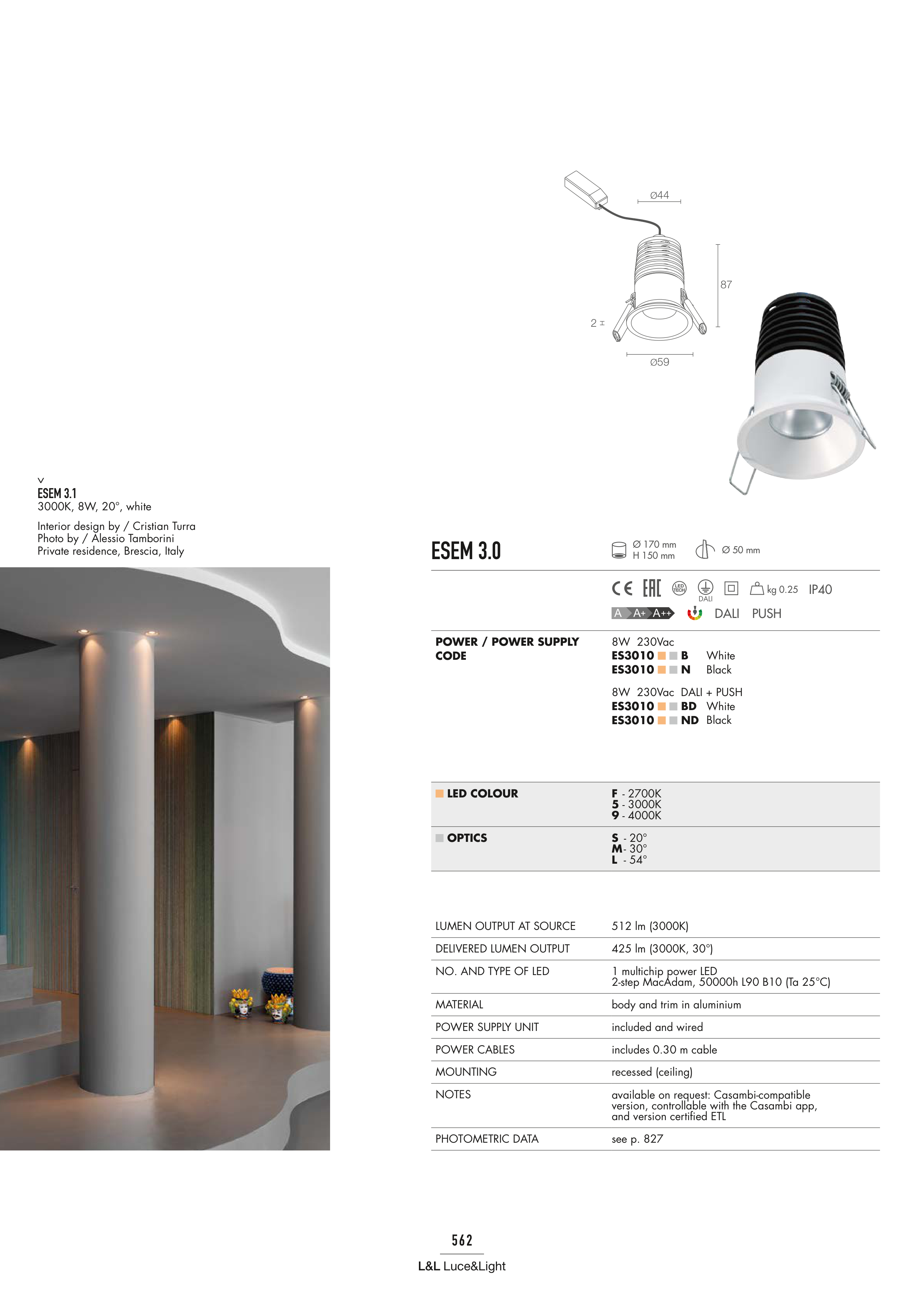

ESEM 3.0
DALI
IP40
DALI
PUSH
POWER / POWER SUPPLY
CODE
8W 230Vac
ES3010 B
ES3010 N
White
Black
8W 230Vac DALI + PUSH
ES3010 BD
ES3010 ND
White
Black
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 20°
M - 30°
L - 54°
LUMEN OUTPUT AT SOURCE
512 lm (3000K)
DELIVERED LUMEN OUTPUT
425 lm (3000K, 30°)
NO. AND TYPE OF LED
1 multichip power LED
2-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in aluminium
POWER SUPPLY UNIT
included and wired
POWER CABLES
includes 0.30 m cable
MOUNTING
recessed (ceiling)
NOTES
available on request: Casambi-compatible
version, controllable with the Casambi app,
and version certified ETL
PHOTOMETRIC DATA
see p. 827
ESEM 3.1
3000K, 8W, 20°, white
Interior design by / Cristian Turra
Photo by / Alessio Tamborini
Private residence, Brescia, Italy
kg 0.25
