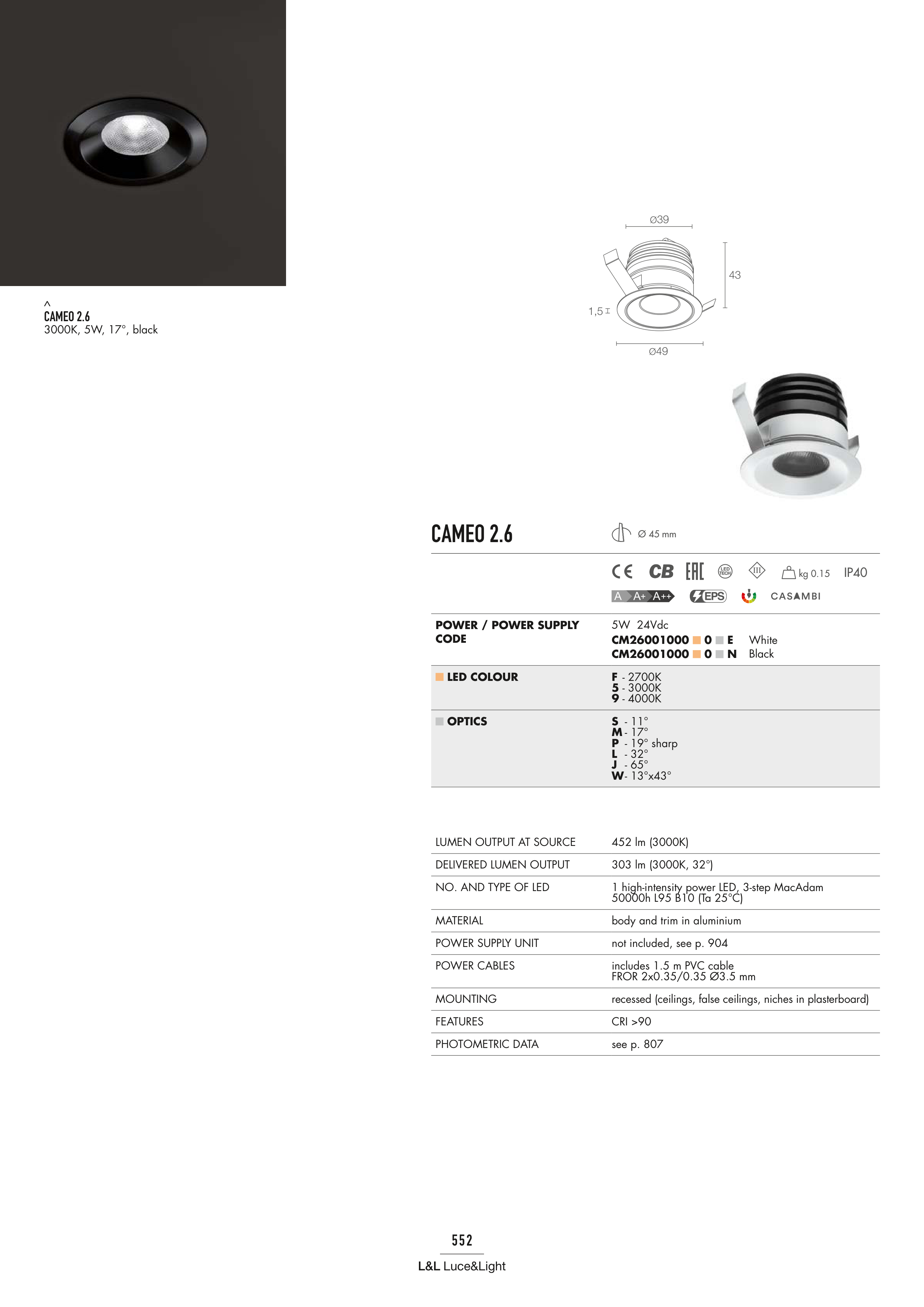

L&L Luce&Light
552
Ø 45 mm
CAMEO 2.6
IP40
43
1,5
Ø49
Ø39
CAMEO 2.6
3000K, 5W, 17°, black
kg 0.15
POWER / POWER SUPPLY
CODE
5W 24Vdc
CM26001000 0 E
CM26001000 0 N
White
Black
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 11°
M - 17°
P - 19° sharp
L - 32°
J - 65°
W - 13°x43°
LUMEN OUTPUT AT SOURCE
452 lm (3000K)
DELIVERED LUMEN OUTPUT
303 lm (3000K, 32°)
NO. AND TYPE OF LED
1 high-intensity power LED, 3-step MacAdam
50000h L95 B10 (Ta 25°C)
MATERIAL
body and trim in aluminium
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 1.5 m PVC cable
FROR 2x0.35/0.35 Ø3.5 mm
MOUNTING
recessed (ceilings, false ceilings, niches in plasterboard)
FEATURES
CRI >90
PHOTOMETRIC DATA
see p. 807
