L&L Luce&Light
548
Ø 35 mm

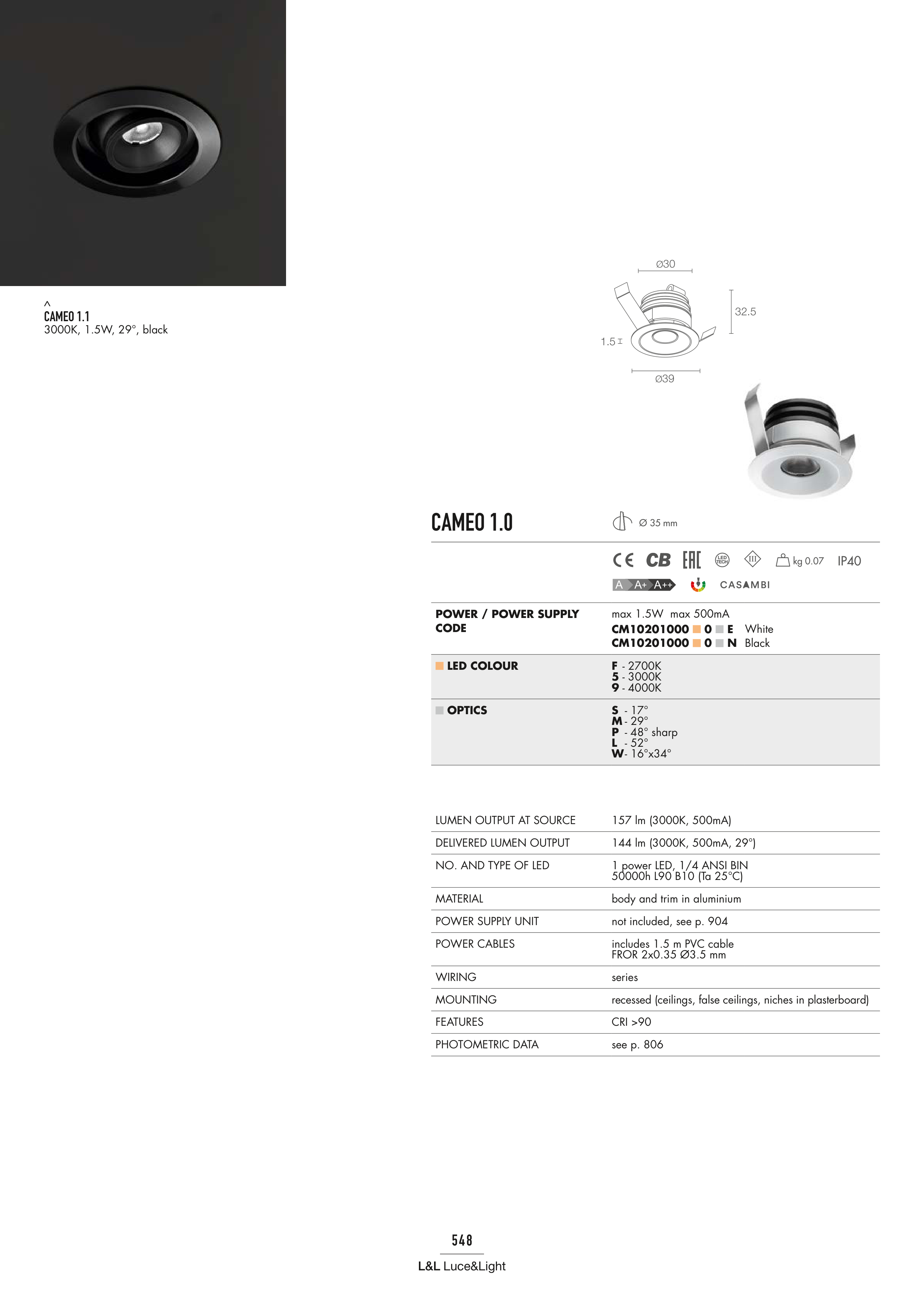

CAMEO 1.0
IP40
POWER / POWER SUPPLY
CODE
max 1.5W max 500mA
CM10201000 0 E
CM10201000 0 N
White
Black
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 17°
M - 29°
P - 48° sharp
L - 52°
W - 16°x34°
LUMEN OUTPUT AT SOURCE
157 lm (3000K, 500mA)
DELIVERED LUMEN OUTPUT
144 lm (3000K, 500mA, 29°)
NO. AND TYPE OF LED
1 power LED, 1/4 ANSI BIN
50000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in aluminium
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 1.5 m PVC cable
FROR 2x0.35 Ø3.5 mm
WIRING
series
MOUNTING
recessed (ceilings, false ceilings, niches in plasterboard)
FEATURES
CRI >90
PHOTOMETRIC DATA
see p. 806
CAMEO 1.1
3000K, 1.5W, 29°, black
kg 0.07
32.5
1.5
Ø39
Ø30
