L&L Luce&Light
53
LUMEN OUTPUT AT SOURCE
488 lm (3000K)
LED lumen output with the LED colour temperature
in brackets.
THE LUMEN OUTPUT FOR EACH DEVICE IS GIVEN ON THE PRODUCT PAGE BELOW
THE CODE AND IS EXPRESSED USING TWO VALUES:
The lumen output at source refers to the junction temperature (Tj) 85°C. The delivered lumen output
is measured at the device‘s operating temperature. The value for the delivered lumen output refers to
the optics indicated in brackets. In those cases where other optics noticeably affect the lumen output,
multiple values are given. Together with the lumen output, other specifications, such as the power
consumption and supply, and the CRI, are provided to further clarify the value given.
Both the at-source and the delivered lumen outputs of devices with RGB, RGBW and dynamic white LED colours
are expressed with both the total value and the value for each colour.

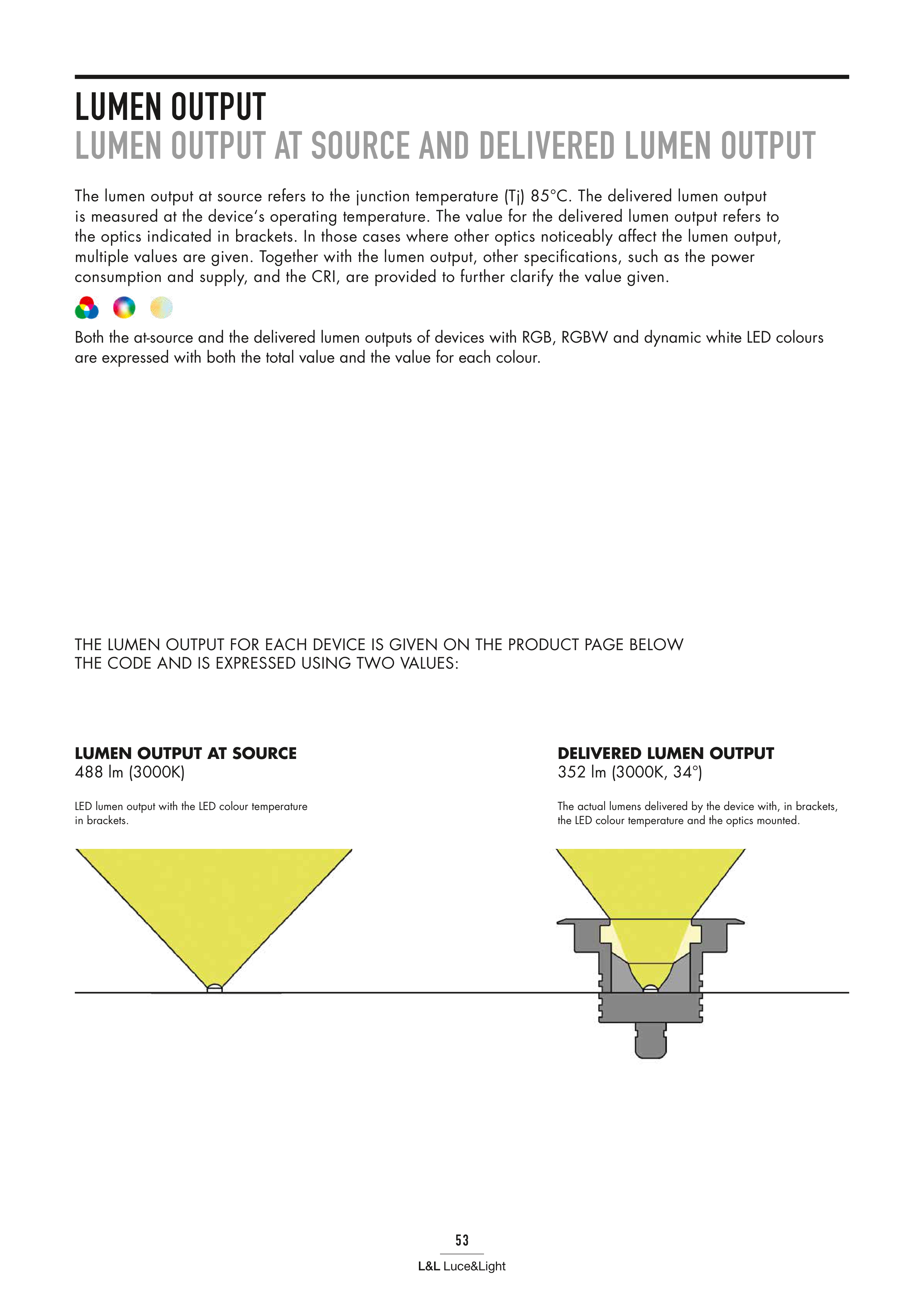

LUMEN OUTPUT
LUMEN OUTPUT AT SOURCE AND DELIVERED LUMEN OUTPUT
DELIVERED LUMEN OUTPUT
352 lm (3000K, 34°)
The actual lumens delivered by the device with, in brackets,
the LED colour temperature and the optics mounted.
