L&L Luce&Light
542
70°
350°
Ø46
22
3
Ø30
Ø55
70°
350°
Ø46
22
3
Ø30
Ø55

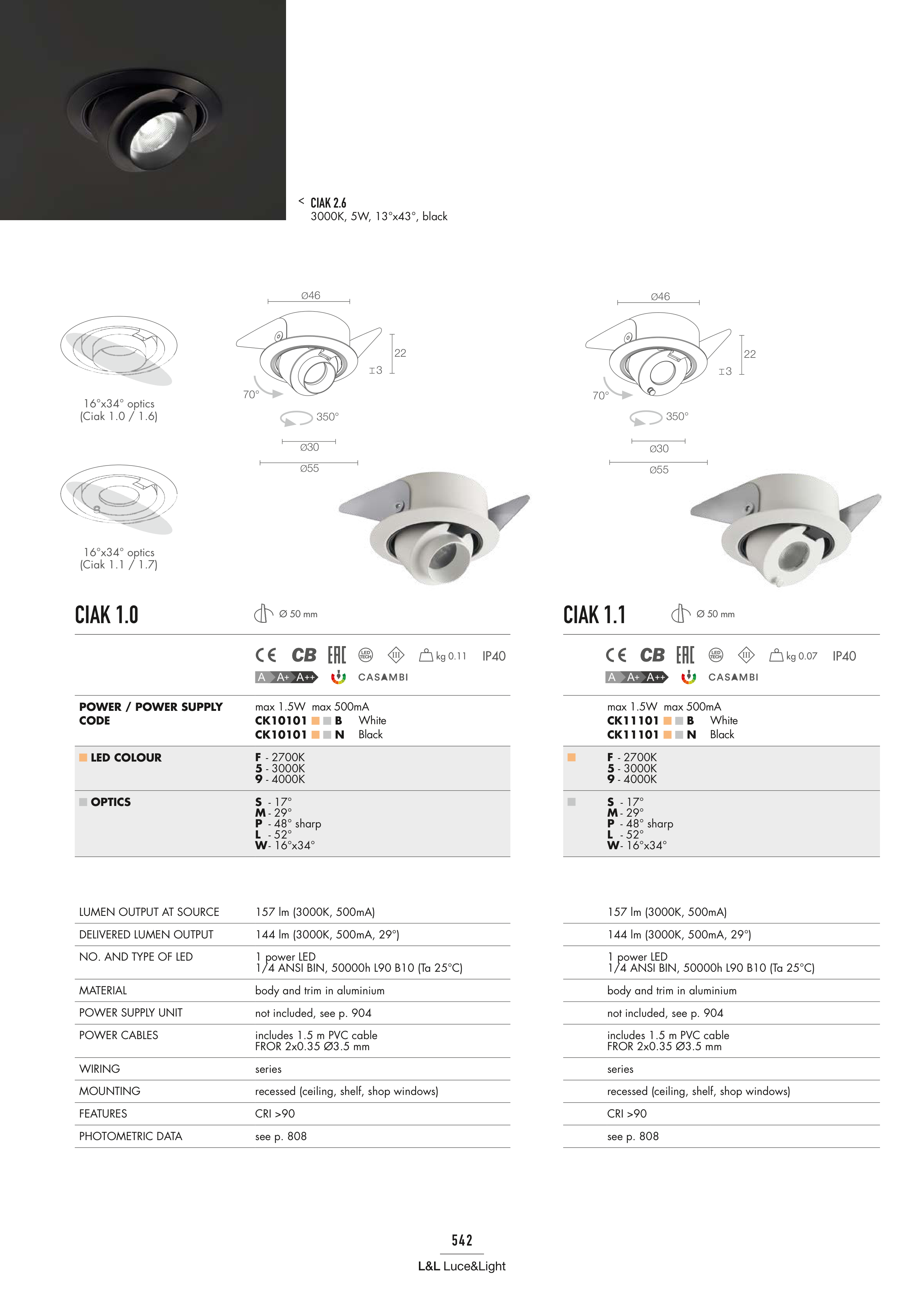

CIAK 1.1
CIAK 1.0
IP40
IP40
Ø 50 mm
Ø 50 mm
POWER / POWER SUPPLY
CODE
max 1.5W max 500mA
CK10101 B
CK10101 N
White
Black
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 17°
M - 29°
P - 48° sharp
L - 52°
W - 16°x34°
LUMEN OUTPUT AT SOURCE
157 lm (3000K, 500mA)
DELIVERED LUMEN OUTPUT
144 lm (3000K, 500mA, 29°)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body and trim in aluminium
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 1.5 m PVC cable
FROR 2x0.35 Ø3.5 mm
WIRING
series
MOUNTING
recessed (ceiling, shelf, shop windows)
FEATURES
CRI >90
PHOTOMETRIC DATA
see p. 808
max 1.5W max 500mA
CK11101 B
CK11101 N
White
Black
F - 2700K
5 - 3000K
9 - 4000K
S - 17°
M - 29°
P - 48° sharp
L - 52°
W - 16°x34°
157 lm (3000K, 500mA)
144 lm (3000K, 500mA, 29°)
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
body and trim in aluminium
not included, see p. 904
includes 1.5 m PVC cable
FROR 2x0.35 Ø3.5 mm
series
recessed (ceiling, shelf, shop windows)
CRI >90
see p. 808
16°x34° optics
(Ciak 1.0 / 1.6)
16°x34° optics
(Ciak 1.1 / 1.7)
kg 0.11
kg 0.07
CIAK 2.6
3000K, 5W, 13°x43°, black
