L&L Luce&Light
523

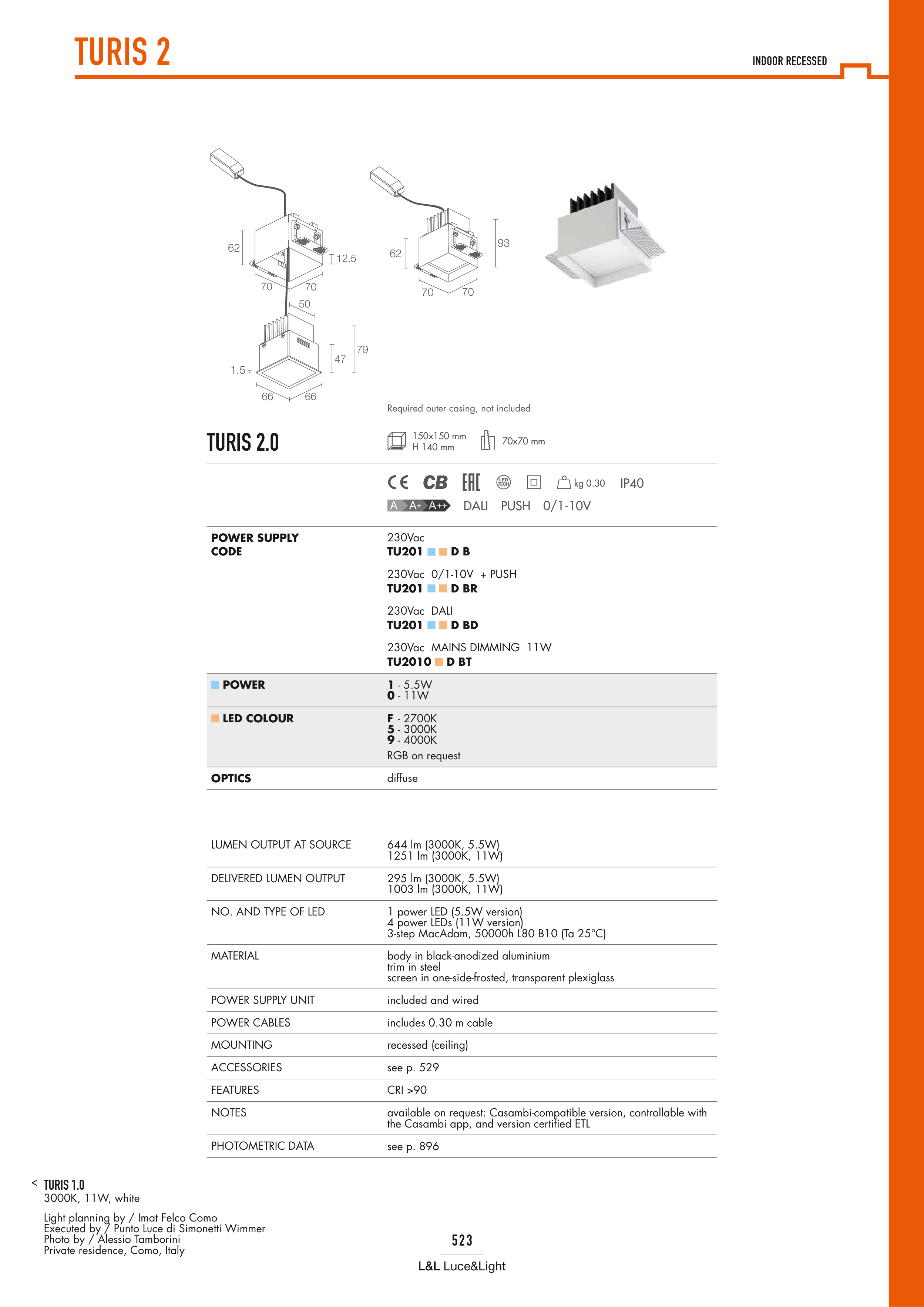

TURIS 2
TURIS 2.0
IP40
70x70 mm
150x150 mm
H 140 mm
DALI
PUSH
0/1-10V
INDOOR RECESSED
POWER SUPPLY
CODE
230Vac
TU201 D B
230Vac 0/1-10V + PUSH
TU201 D BR
230Vac DALI
TU201 D BD
230Vac MAINS DIMMING 11W
TU2010 D BT
POWER
1 - 5.5W
0 - 11W
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
RGB on request
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
644 lm (3000K, 5.5W)
1251 lm (3000K, 11W)
DELIVERED LUMEN OUTPUT
295 lm (3000K, 5.5W)
1003 lm (3000K, 11W)
NO. AND TYPE OF LED
1 power LED (5.5W version)
4 power LEDs (11W version)
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
MATERIAL
body in black-anodized aluminium
trim in steel
screen in one-side-frosted, transparent plexiglass
POWER SUPPLY UNIT
included and wired
POWER CABLES
includes 0.30 m cable
MOUNTING
recessed (ceiling)
ACCESSORIES
see p. 529
FEATURES
CRI >90
NOTES
available on request: Casambi-compatible version, controllable with
the Casambi app, and version certified ETL
PHOTOMETRIC DATA
see p. 896
Required outer casing, not included
TURIS 1.0
3000K, 11W, white
Light planning by / Imat Felco Como
Executed by / Punto Luce di Simonetti Wimmer
Photo by / Alessio Tamborini
Private residence, Como, Italy
kg 0.30
93
62
62
70
70
70
70
47
79
12.5
66
66
50
1.5
